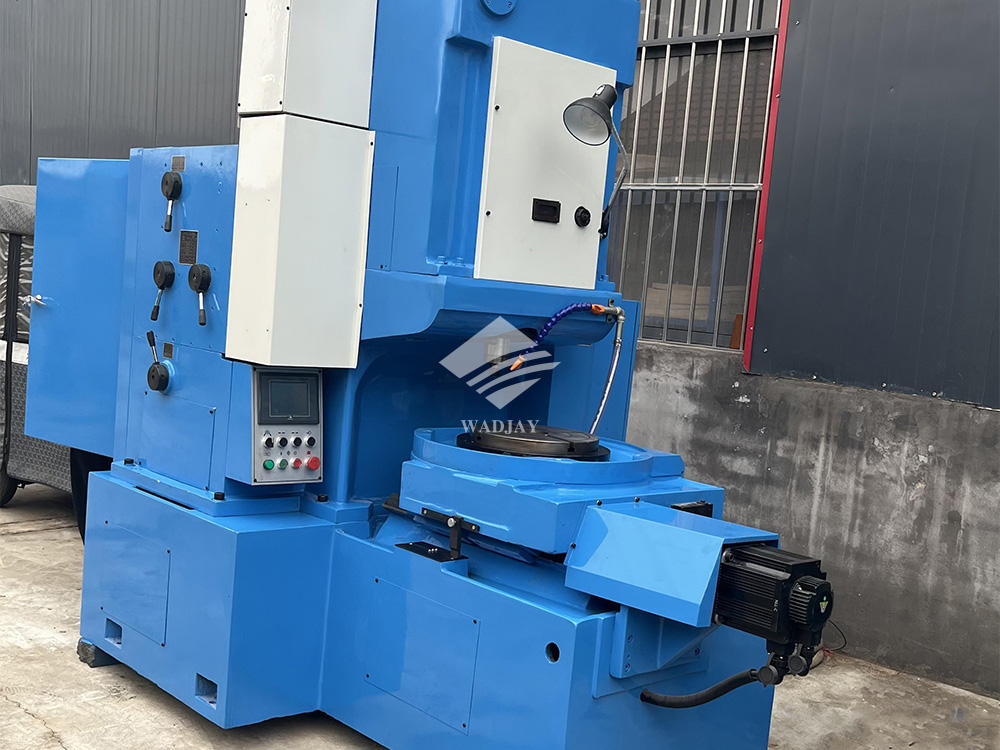

Optimizing Industrial Gear Manufacturing with the Y5150 Universal Gear Shaping Machine
In the field of mechanical power transmission, precision is non-negotiable. The Universal Gear Shaping Machine Y5150 has established itself as a cornerstone for factories requiring versatile solutions for both internal and external cylindrical gears. This case study examines how the Y5150 Gear Shaping Machine enhances production accuracy and efficiency.
The Challenge: Complex Gear Geometry
Manufacturers often struggle with processing gears that feature shoulders or internal teeth where traditional hobbing machines cannot reach. The Universal Gear Shaping Machine solves this by using a reciprocating cutter motion, ideal for:
- Internal and external cylindrical gears.
- Cluster gears and gears with restricted clearance.
- Splines and non-involute profiles.
Key Features of the Y5150 Machine
To achieve high-tier SEO results, we focus on the technical superiority of this equipment:
- Versatile Application: Suitable for small-batch and mass production in automotive and aerospace industries.
- High Structural Rigidity: The heavy-duty frame ensures minimal vibration, which is critical for maintaining a Grade 7 precision rating.
- Large Processing Range: With a maximum workpiece diameter of 500mm and a maximum module of 8mm, it handles heavy-duty industrial tasks with ease.
echnical Specifications
| Specification Item | Value |
| Max. Workpiece Diameter | 500 mm |
| Max. Module | 8 mm |
| Max. Table Stroke | 160 mm |
| Main Motor Power | 4 kw / 5.5 kw |
| Machine Weight | Approx. 4500 kg |
How the Y5150 Gear Shaping Machine Works
The machining process of the Y5150 Gear Shaping Machine is based on the generating method. The cutter and the workpiece rotate together in a precise relationship, similar to a pair of meshing gears.
As the cutter reciprocates vertically, it gradually feeds into the workpiece to achieve the desired tooth depth. This “shaping” action is what allows the machine to process internal gears and shoulder gears that a standard hobbing machine simply cannot handle. The high-rigidity guide rails ensure that even during heavy-duty cutting, the tooth profile remains smooth and within strict tolerances.
Maintenance Tips for Long-term Precision
To ensure your Universal Gear Shaping Machine maintains its Grade 7 precision for years, follow this maintenance schedule:
- Daily Lubrication: Check the oil levels in the main transmission box and ensure the guide rails are well-lubricated before starting production.
- Cutter Inspection: Regularly inspect the shaping cutter for wear. A dull cutter increases vibration and can damage the machine’s spindle.
- Coolant Management: Keep the coolant clean and free of metal chips to ensure a high-quality surface finish on the gears.
- Hydraulic System Check: Periodically check the hydraulic pressure to ensure stable clamping and smooth table movement.
Conclusion: The Ideal Choice for Gear Manufacturers
The Y5150 Universal Gear Shaping Machine is more than just a piece of equipment; it is a versatile solution for complex gear challenges. Whether you are producing small batches of specialized internal gears or mass-producing external cylindrical gears, this machine provides the stability and accuracy required in today’s competitive market.
