Project Overview
Advanced CNC Technology for High-Precision Small Part Manufacturing

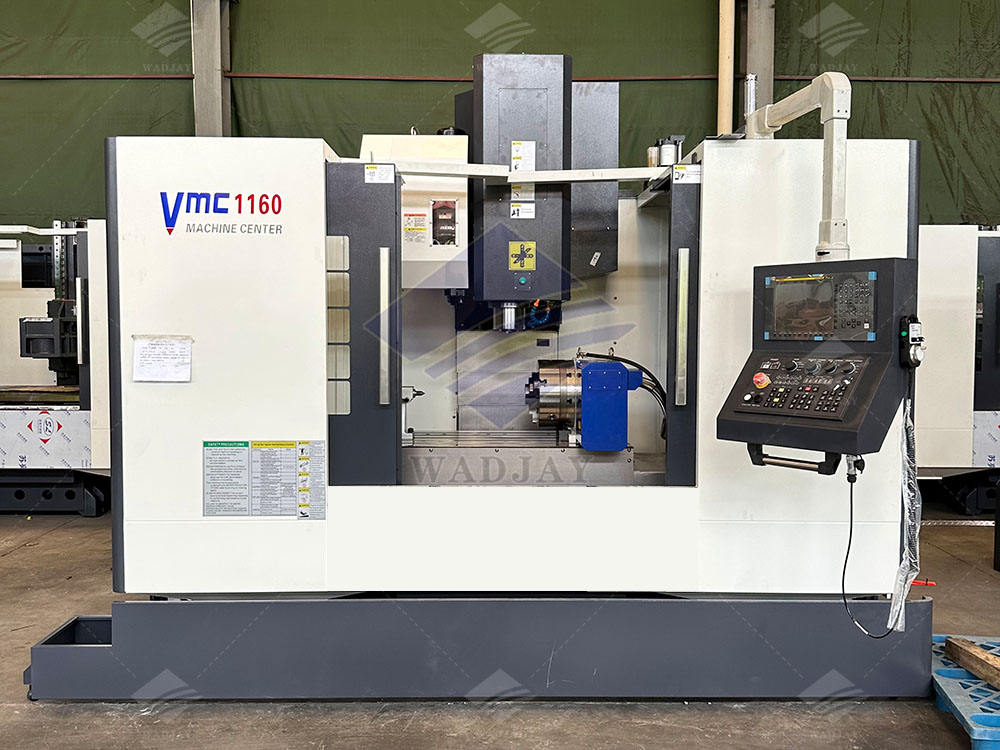

In today’s competitive manufacturing landscape, efficiency, precision, and flexibility are crucial, especially for shops focusing on small to medium-sized components, prototypes, and precision tooling. The High-Speed 3-Axis CNC Milling Machine VMC-1160 is engineered to meet these demands, offering a robust yet compact footprint without compromising on the power, speed, or accuracy required for modern machining tasks.
This vertical machining center combines a reliable Fanuc control system with a high-speed spindle and an automatic tool changer, delivering exceptional performance for machining metals, plastics, and composites. Its optimal size makes it a perfect fit for job shops, R&D facilities, and production lines where floor space is at a premium but capability cannot be sacrificed.
Technical Specifications: Engineered for Performance and Reliability
Core Machine Parameters
| Parameter | Specification |
|---|---|
| Model | VMC-1160 |
| Axis Configuration | 3-Axis (X, Y, Z) |
| Table Travel (X) | 1100 mm |
| Table Travel (Y) | 600 mm |
| Table Travel (Z) | 600 mm |
| Table Size | 1200 × 600 mm |
| Maximum Table Load | 800 kg |
| Repeatability | ±0.005 mm |
| Positioning Accuracy | ±0.008 mm |
| Spindle Speed Range | 1 – 8000 rpm |
| Spindle Taper | BT40 |
| Tool Magazine Capacity | 20 tools |
| Tool Change Time | 3.0 seconds |
| Rapid Feed Rate (X/Y) | 48 m/min |
| Rapid Feed Rate (Z) | 36 m/min |
| Spindle Motor Power | 11/15 kW (30 min) |
| Control System | Fanuc 0i-MF Plus (Standard) |
| Machine Weight | Approx. 7000 kg |
| Voltage Requirement | 380V/3Phase/50Hz |
| Warranty Period | 1.5 years |
