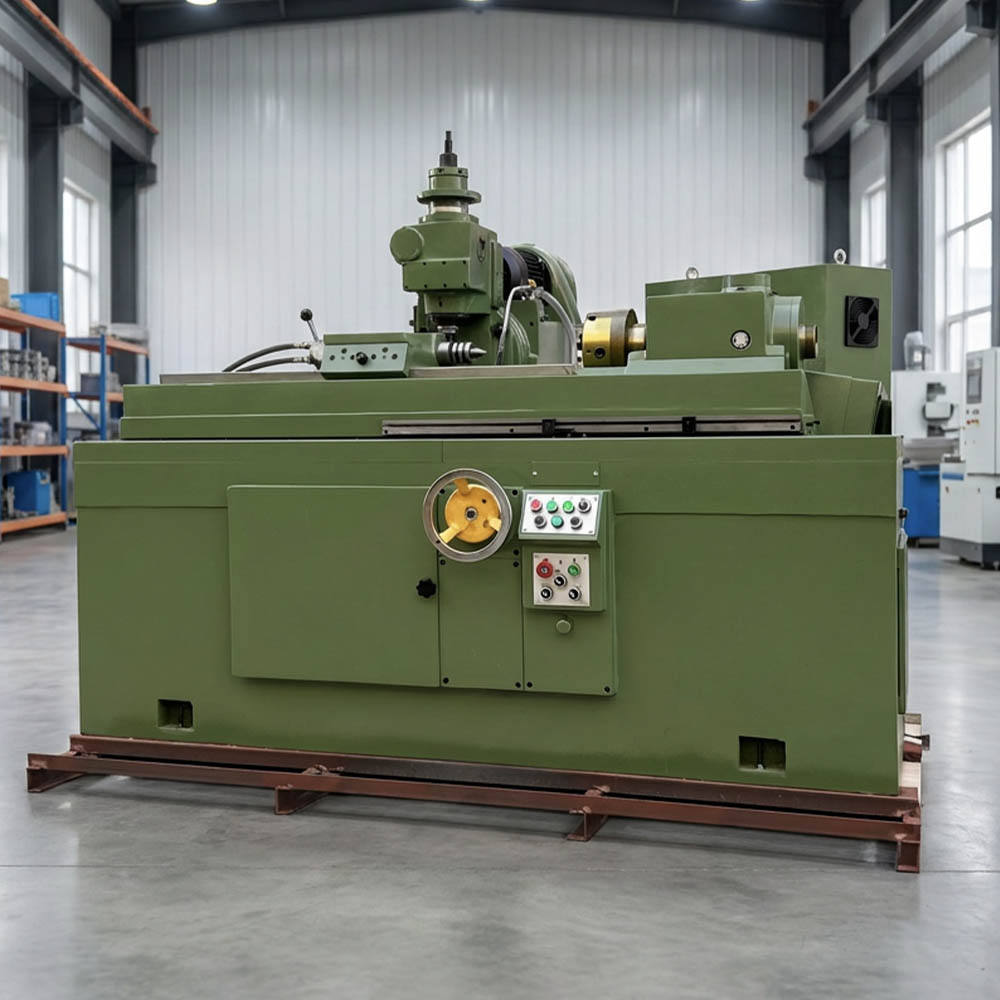

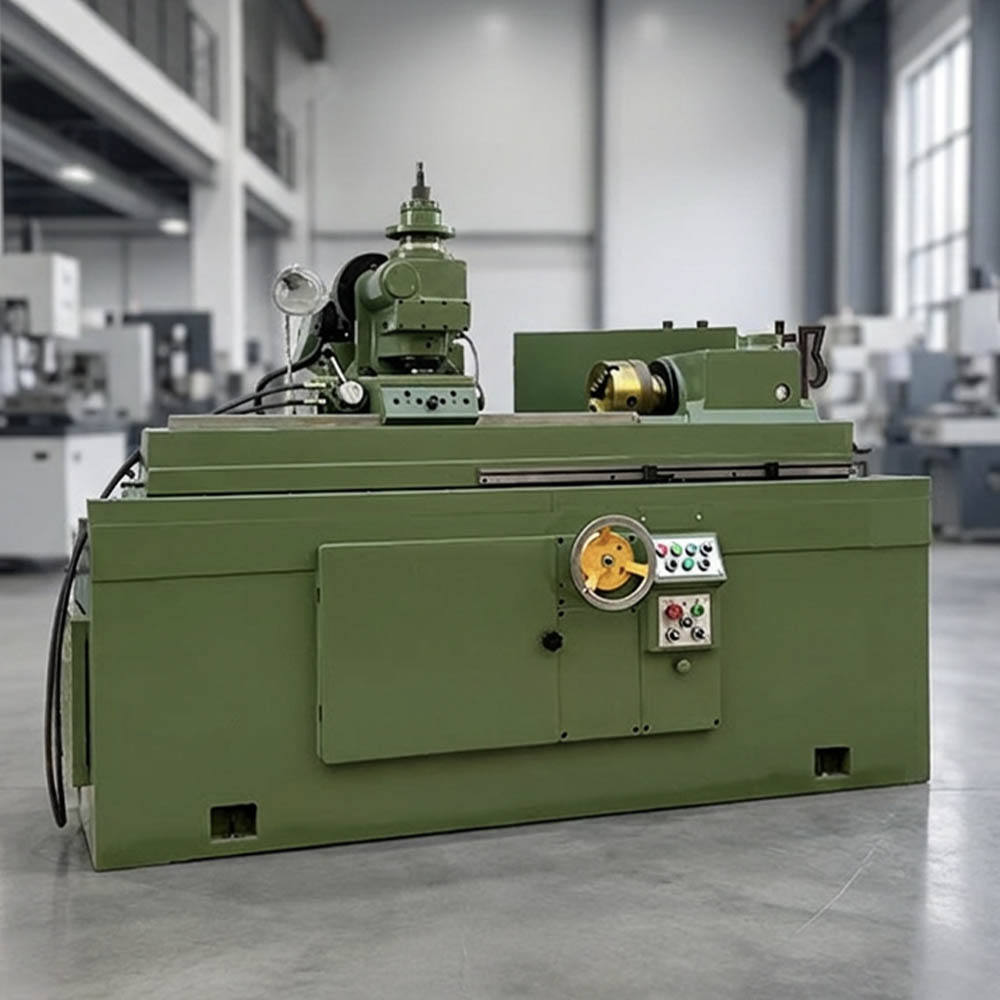

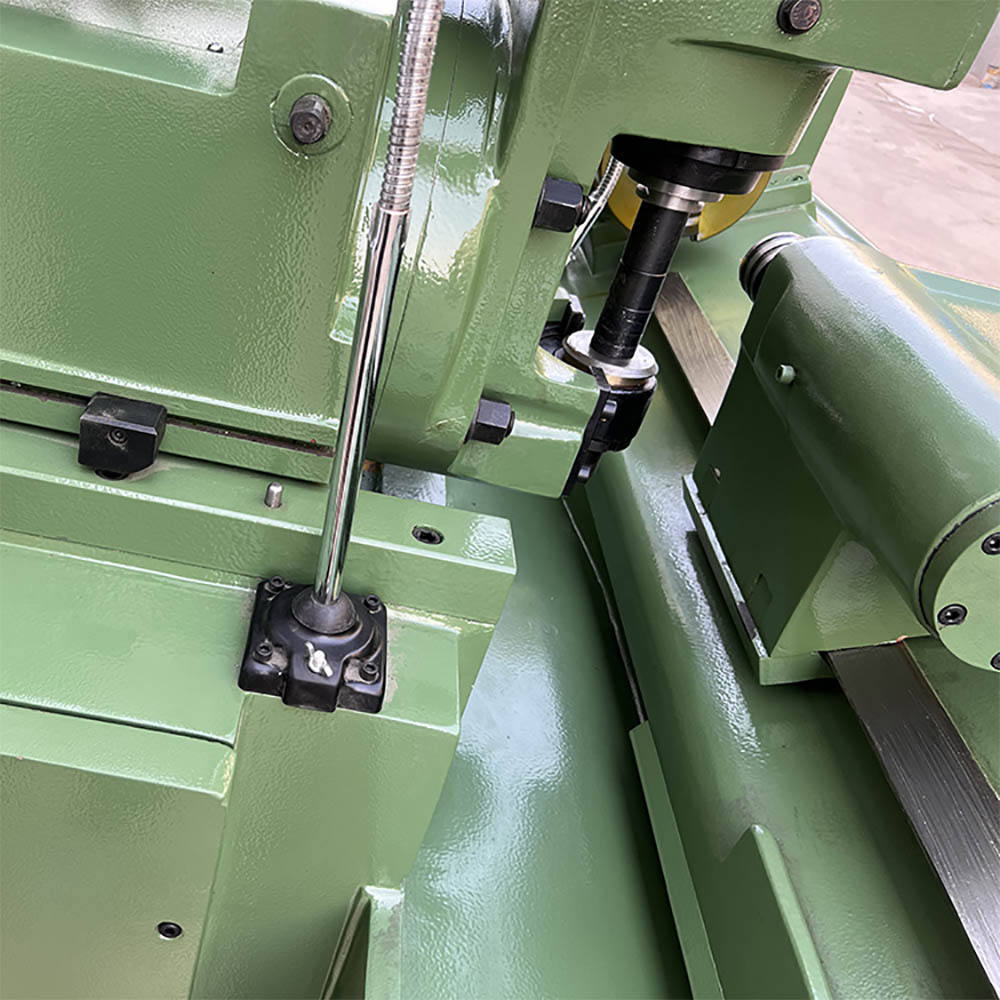

YB6212 High Precision Spline Shaft Milling Machine
1. Introduction: The Specialist for Spline Shaft Processing
In the manufacturing of automotive transmissions, construction machinery, and aerospace power systems, spline shafts serve as critical components for torque transmission. The YB6212 High Precision Spline Shaft Milling Machine is engineered by Wadjay to deliver exceptional accuracy and efficiency in machining these complex parts. As a leading semi-automatic universal spline shaft milling machine, the YB6212 excels in handling various tooth profiles, providing manufacturers with a reliable solution for both small and medium batch production .
2. Key Technical Specifications
Our metal cutting equipment is designed with a rigid structure to ensure stability during high-load operations:
- Max Machining Diameter: 125 mm
- Max Machining Length: 900 mm
- Max Module: 4 mm
- Number of Teeth: 4 – 36 teeth
- Max Workpiece Length: 1000 mm
- Cutter Speed Range: 80 – 250 r/min (6 levels)
3. Core Features & Competitive Advantages
Unlike standard lathes, this high precision spline shaft milling machine utilizes a specialized indexing and cutting mechanism:
- Dual Cycle Operation: The YB6212 supports both single-cut cycles for simple jobs and dual-cut cycles (rough & finish) for enhanced surface integrity, allowing adjustable finishing allowance .
- Versatile Machining: It can process straight spline shafts, helical spline shafts, and even cylindrical gears with fewer than 36 teeth .
- Enhanced Stability: The machine features a heavy-duty cast iron bed and high-frequency quenched guideways, ensuring long-term geometric accuracy and superior wear resistance .
- Optimized Chip Removal: Equipped with a built-in cooling pump motor (0.12 kW) and efficient chip augers, the machine maintains a clean working area, which is crucial for maintaining high precision in metal cutting .
4. Ideal Applications
This spline shaft milling machine is indispensable for industries requiring precise mechanical connections:
- Automotive Industry: Processing transmission input/output shafts.
- Agricultural & Construction Machinery: Manufacturing PTO (Power Take-Off) shafts and gearbox shafts.
- Industrial Gearboxes: Finishing spline connections for heavy-duty reducers.
6. Frequently Asked Questions (FAQ)
Q: What is the difference between a spline milling machine and a standard lathe?
A: A standard lathe is primarily for turning cylindrical or conical surfaces. A spline shaft milling machine uses a milling cutter and a precise indexing mechanism to cut gear teeth or splines around the circumference, which a lathe cannot achieve.
Q: Can this machine process helical (oblique) spline shafts?
A: Yes. The YB6212 is a “universal” milling machine, capable of machining helical splines by adjusting the cutter head angle and feed direction .
Q: What materials can this metal cutting equipment handle?
A: It is designed for ferrous and non-ferrous metals, including 40Cr, 20CrMnTi, 42CrMo, and various alloy steels commonly used in shaft manufacturing.
