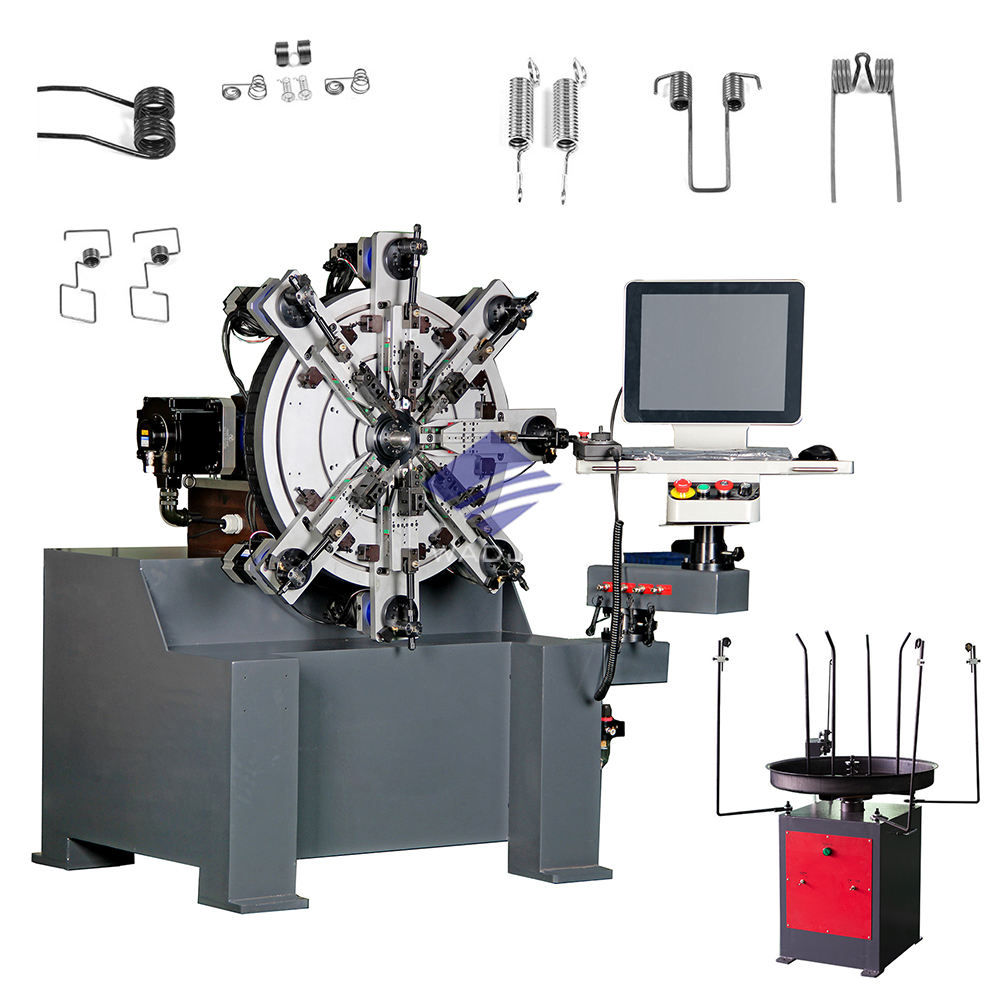

12-Axis CNC Spring Coiling & Wire Forming Machine
Model: 12K
Quick Specifications
| Working Area: | 3800 × 2200 × 2400mm |
| Spindle Speed: | 80m/min |
| Accuracy: | ±0.05mm |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | Standard Value |
|---|---|---|
| Max. Wire Diameter | mm | 0.3 – 4.0 (Customizable) |
| Max. Wire Feeding Speed | m/min | 80 |
| Forming Axis Quantity | – | 12 Independent Servo Axes |
| Spring Free Length Accuracy | mm | ±0.05 |
| Angle Accuracy | ° | ±0.1 |
| Control System | – | 12-Axis CNC Servo System |
| Main Motor Power | kW | 18.5 |
| Net Weight | kg | 4200 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 3800 × 2200 × 2400 |
Features
12 independent servo drives enable automatic wire feeding, coiling, bending, cutting, and forming of complex spring and wire parts, reducing human error by 99% and improving production efficiency by 85% compared to manual spring making.
✅ High-Precision Servo Control
Imported servo motors and precision reducers ensure ultra-high forming accuracy and repeatability, suitable for high-tolerance automotive and aerospace spring components.
✅ Versatile Forming Capability
Supports compression springs, extension springs, torsion springs, wire brackets, hooks, and custom wire parts, covering 98% of common spring and wire forming needs in manufacturing.
✅ User-Friendly CNC Programming
Intuitive touchscreen control panel with 3D simulation, one-click operation, and automatic program generation, reducing operator training time and enabling complex part programming in minutes.
✅ Complete Safety & Protection System
Fully enclosed protective structure, emergency stop, overload protection, and automatic wire feeding system, ensuring operator safety and a clean workshop environment.
✅ Automatic Wire Decoiler & Straightening
Equipped with a heavy-duty wire decoiler and automatic straightening system, supporting continuous production with large wire coils, eliminating manual feeding.
✅ Global Export Ready
CE-certified, with customizable voltage, control system, and complete export documentation, suitable for international shipping and global customer projects.
