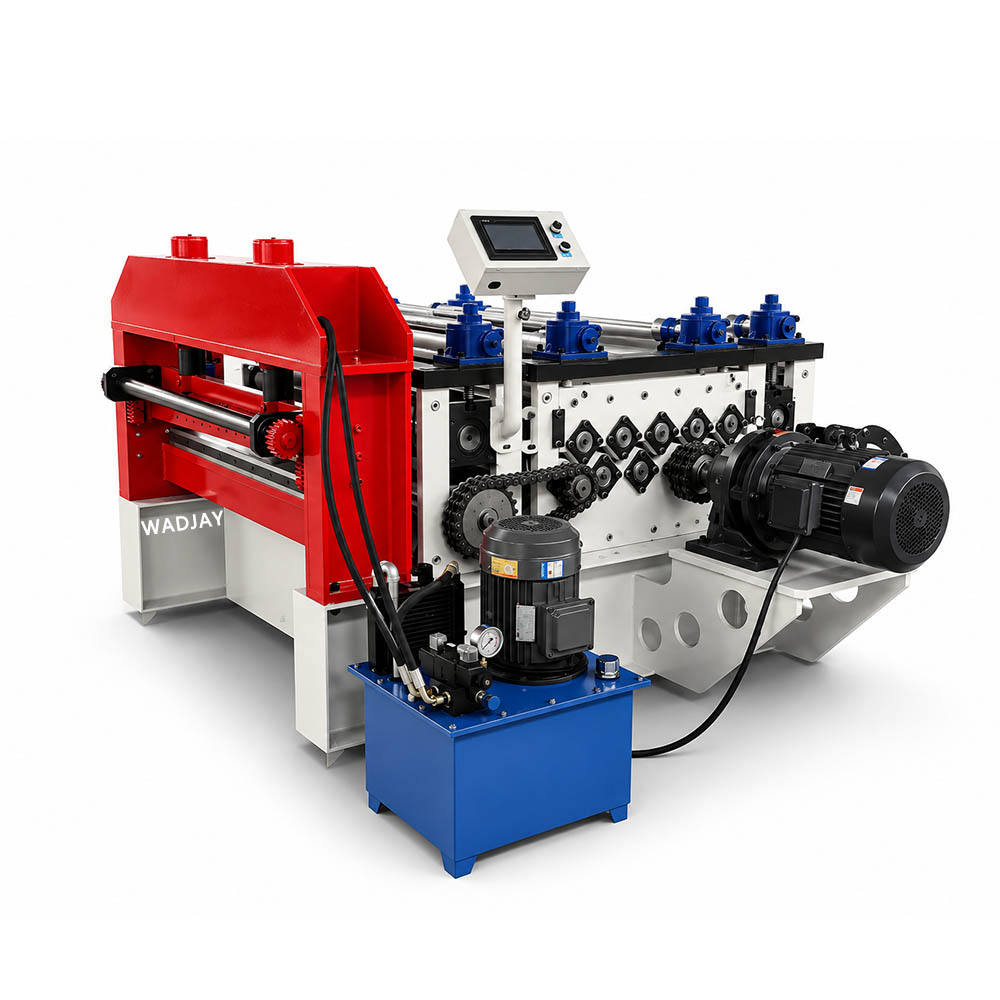

Automatic Metal Slitter Machine Steel Coil Slitting Line Cutter
Model: CSL-1200
Product Video
Description
Automatic Metal Slitter Machine
The Automatic Metal Slitter Machine is a high-precision, industrial metal sheet and coil slitting solution engineered for fast, smooth, and burr-free longitudinal gang cutting. Purpose-built for metal service centers, light-gauge steel fabricators, HVAC ductwork manufacturers, and roofing panel producers, this compact coil slitting equipment efficiently processes cold-rolled steel, galvanized iron (GI), pre-painted steel (PPGI), stainless steel, aluminum, and copper coils into clean, uniform-width strips.CE/ISO certification
Key Equipment Features & Production Workflow:
Dynamic Sheet & Coil Guide Assembly: Heavy-duty adjustable side-guided entry rails ensure straight material feed, eliminating coil wander and material waste.
High-Carbon Tool Steel Slitting Arbor: Dual-shaft gang slitter fitted with hardened rotary blades that execute precise parallel longitudinal cuts without burrs or edge deformation.
Multi-Blade Spacer System: Adjustable locking collars and rubber spacer rings allow operators to reconfigure strip width settings rapidly for custom orders.
Continuous High-Torque Motor Drive: Heavy-duty motor and gearbox assembly maintain steady feed speeds up to 1500-2000 mm/min across varying metal gauges.
Operator Protection Enclosure: Fully integrated emergency stop circuitry and protective blade housing guarantee strict industrial workshop safety compliance.
Detailed Industrial Applications & Processing Performance:
The Automatic Metal Slitter Machine delivers exceptional operational versatility across modern sheet metal and coil processing industries. In HVAC duct manufacturing, it allows continuous slitting of galvanized steel sheets into custom strip widths required for spiral pipes, flange connectors, and duct seams. Roofing contractors and cladding suppliers rely on its rigid rotary blades to produce accurate flashing strips, metal gutters, and fascia trims directly on site or in local fabrication yards.
Furthermore, electrical component and transformer manufacturers benefit from its smooth arbor drive when cutting high-conductivity copper foils and thin silicon steel sheets without surface scratches. Featuring micro-adjustable blade clearance controls, compact footprint design, and low power consumption, this automatic coil slitting line minimizes material scrap rate and significantly decreases labor costs during daily high-volume production shifts.
Technical Specifications
| Technical Parameters | Specification Values |
| Machine Type Designation | Compact Automatic Sheet & Coil Slitter |
| Processing Width Range | 1000 mm – 1200 mm |
| Applicable Material Thickness | 0.3 mm – 0.8 mm (Light Gauge Metal) |
| Slitting Line Speed Range | 1500 mm/min – 2000 mm/min |
| Number of Slitting Lines | 2 – 20 Strips (Customizable) |
| Operating Voltage Supply | 380V (3-Phase, 50Hz/60Hz, Customizable) |
| Maximum Coil Weight Capacity | 5 Tons (5,000 kg) |
| Slitting Blade Material | Cr12MoV / High-Carbon Alloy Tool Steel |
| Net Equipment Machine Weight | 1,200 kg (1.2 Tons) |
| Overall Machine Dimensions | 180 x 140 x 130 cm |
Features
Machine specification:
Model Classification: CSL-1200 Automatic Metal Slitter Machine
Processing Capacity: 1000-1200mm Width / 0.3-0.8mm Thickness
Slitting Line Speed: 1500 – 2000 mm/min
Total Machine Weight: 1,200 kg
Operation Voltage: 380V Three-Phase Customizable
Machine features:
Multi-Cut Gang Slitting Arbors: Hardened high-carbon tool steel blades execute up to 20 parallel cuts simultaneously without burrs or material warping.
Precision Entry Alignment Guides: Heavy-duty side guides prevent sheet drifting during continuous high-speed cutting.
Low Maintenance Drive Design: High-torque motor drive with CE compliance cuts factory equipment maintenance downtime by half.
Machine functions:
Continuous Sheet Alignment: Entry guides continuously position raw sheet feed cleanly into the rotating gang arbors.
Easy Blade Spacer Calibration: Quick dismounting arbor layout allows operators to change strip width configurations in minutes.
Smooth Anti-Scratch Drive: Rubberized traction rollers preserve pre-painted steel or delicate copper/aluminum finishes.
Machine applications: This automatic metal slitter is widely utilized for:
HVAC ductwork fabrication, roofing panel strip slitting, and gutter flashing preparation.
Electrical transformer copper/aluminum strip production and light-gauge steel coil service centers.
Machine options:
Extra Pairs of High-Carbon Alloy Slitting Blades & Rubber Spacers.
Upgrade to Powered Decoiler / Pay-off Stand.
Custom Electrical Voltage Transformers for localized factory grids (220V/415V/440V at 50Hz/60Hz).
