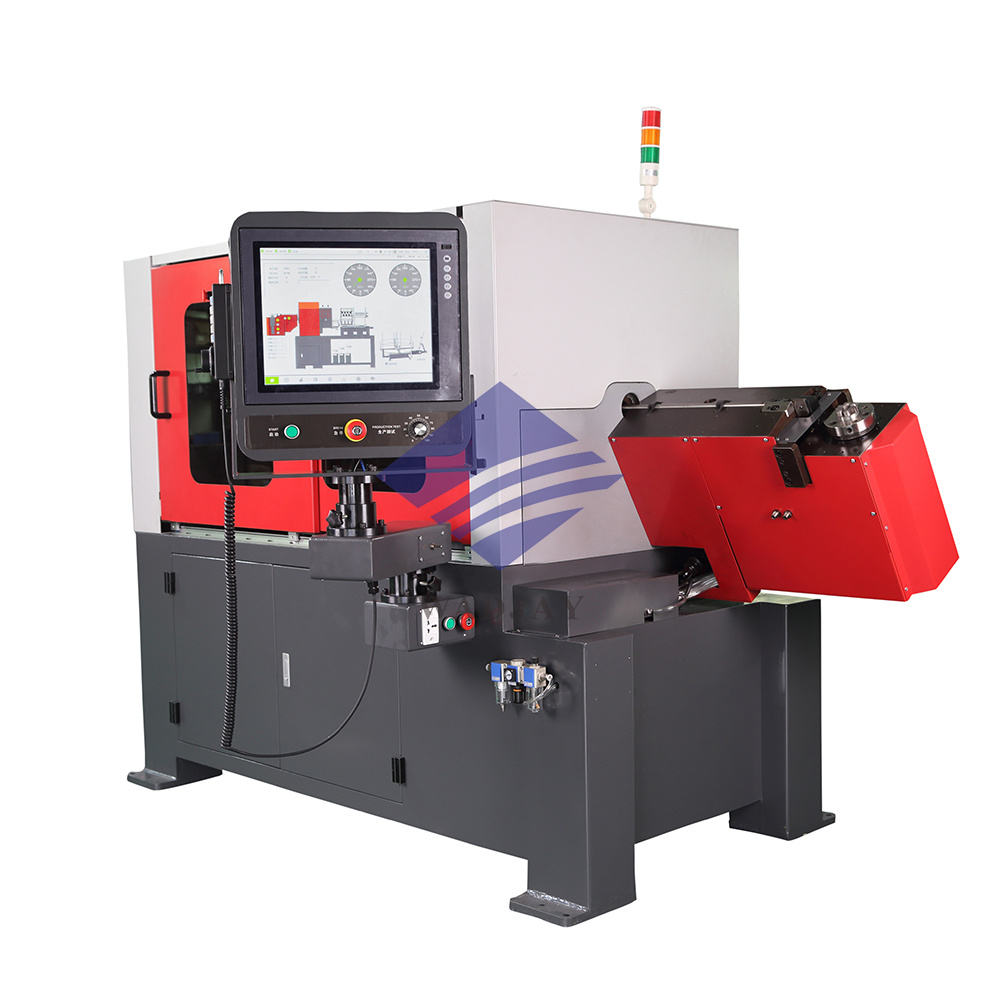

8-Axis 3D CNC Wire Bending Machine
Model: 8-Axis
Quick Specifications
| Working Area: | 3200 × 1800 × 2200mm |
| Spindle Speed: | 60m/min |
| Accuracy: | ±0.05 |
| Tool Capacity: | 8 |
Product Video
Description
The 8-Axis 3D CNC Wire Bending Machine is a high-precision, fully automatic wire forming system designed for the complex 3D bending of metal wire materials. Equipped with a professional industrial touchscreen control system and independent servo drives for each axis, it delivers ultra-precise positioning and continuous production for complex wire components.
Key Application Solutions:
High-Speed CNC Wire Forming: Ideal for producing automotive seat frames, kitchen hardware, display racks, and electronic components.
Maximum Operational Stability: Features a heavy-duty rigid frame and a high-speed rotary bending head, ensuring long-term stability and consistent performance in mass production environments.
Smart Automation: Minimizes setup times and labor costs with a camless design driven by synchronized servo motors.
Technical Specifications
| Parameter | Unit | Standard Value |
|---|---|---|
| Max. Wire Diameter | mm | 8 |
| Min. Wire Diameter | mm | 1.5 |
| Control Axis | — | 8-Axis Independent Servo |
| Max. Bending Angle | ° | ±180° |
| Positioning Accuracy | mm | ±0.05 |
| Max. Feeding Speed | m/min | 60 |
| Main Motor Power | kW | 7.5 |
| Net Weight | kg | 3200 |
| Standard Power Supply | — | 3 Phase 380V, 50Hz |
| Customizable Voltage | — | 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 3200 × 1800 × 2200 |
Features
✅ 8-Axis Full Servo Control
Independent servo motors for each axis enable infinite angle adjustment and complex 3D contouring in a single setup, no mechanical cams required.
✅ High-Speed Production Efficiency
Continuous automatic bending reduces manual labor by 80% compared to manual bending, doubling production output for complex wire parts.
✅ 3D Simulation Programming
Intuitive touchscreen control with 3D part simulation simplifies programming for complex shapes, requiring minimal operator skill.
✅ Heavy-Duty Rigid Structure
Reinforced cast iron base and linear guideways eliminate vibration during high-speed forming, ensuring consistent product quality.
✅ Smart Safety System
Fully enclosed safety guard, emergency stop, and overload protection ensure operator safety and prevent equipment damage.
✅ Global Export Ready
CE-certified, with customizable wire range and control system, complete export documentation for international projects.
