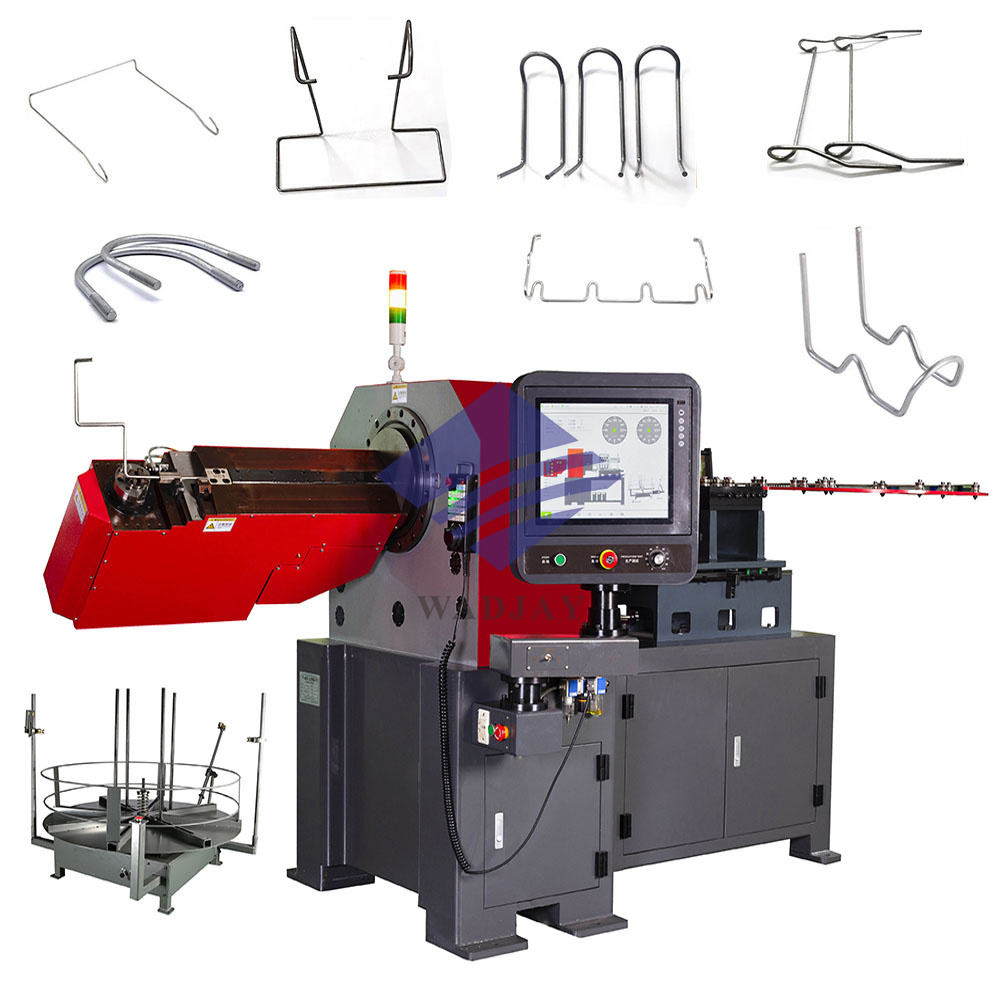

3D CNC Wire Bending Machine
Model: 3D
Quick Specifications
| Working Area: | 3500 × 2000 × 2200mm |
| Spindle Speed: | 60m/min |
| Accuracy: | ±0.05mm |
| Tool Capacity: | 7-Axis CNC Servo System |
Product Video
Description
Technical Specifications
| Parameter | Unit | Standard Value |
|---|---|---|
| Max. Wire Diameter | mm | 3 – 12 (Customizable) |
| Max. Wire Feeding Speed | m/min | 60 |
| Bending Angle Accuracy | ° | ±0.1 |
| Positioning Accuracy | mm | ±0.05 |
| Control System | – | 7-Axis CNC Servo System |
| Main Motor Power | kW | 15 |
| Net Weight | kg | 3800 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 3500 × 2000 × 2200 |
Features
✅ Fully Automated 3D Forming
7-axis independent servo drive enables automatic wire feeding, bending, cutting, and forming of complex 3D shapes, reducing human error by 99% and improving production efficiency by 80% compared to manual bending.
✅ High-Precision Servo Control
Imported servo motors and precision reducers ensure ultra-high bending accuracy and repeatability, suitable for high-tolerance automotive and aerospace wire components.
✅ Versatile Forming Capability
Supports 2D/3D wire bending, U-bolts, wire brackets, hooks, racks, and custom wire parts, covering 95% of common wire forming needs in manufacturing.
✅ User-Friendly CNC Programming
Intuitive touchscreen control panel with 3D simulation, one-click operation, and automatic program generation, reducing operator training time and enabling complex part programming in minutes.
✅ Complete Safety & Protection System
Fully enclosed protective structure, emergency stop, overload protection, and automatic wire feeding system, ensuring operator safety and a clean workshop environment.
✅ Automatic Wire Feeding & Decoiler
Equipped with a heavy-duty wire decoiler and automatic straightening system, supporting continuous production with large wire coils, eliminating manual feeding.
✅ Global Export Ready
CE-certified, with customizable voltage, control system, and complete export documentation, suitable for international shipping and global customer projects.
