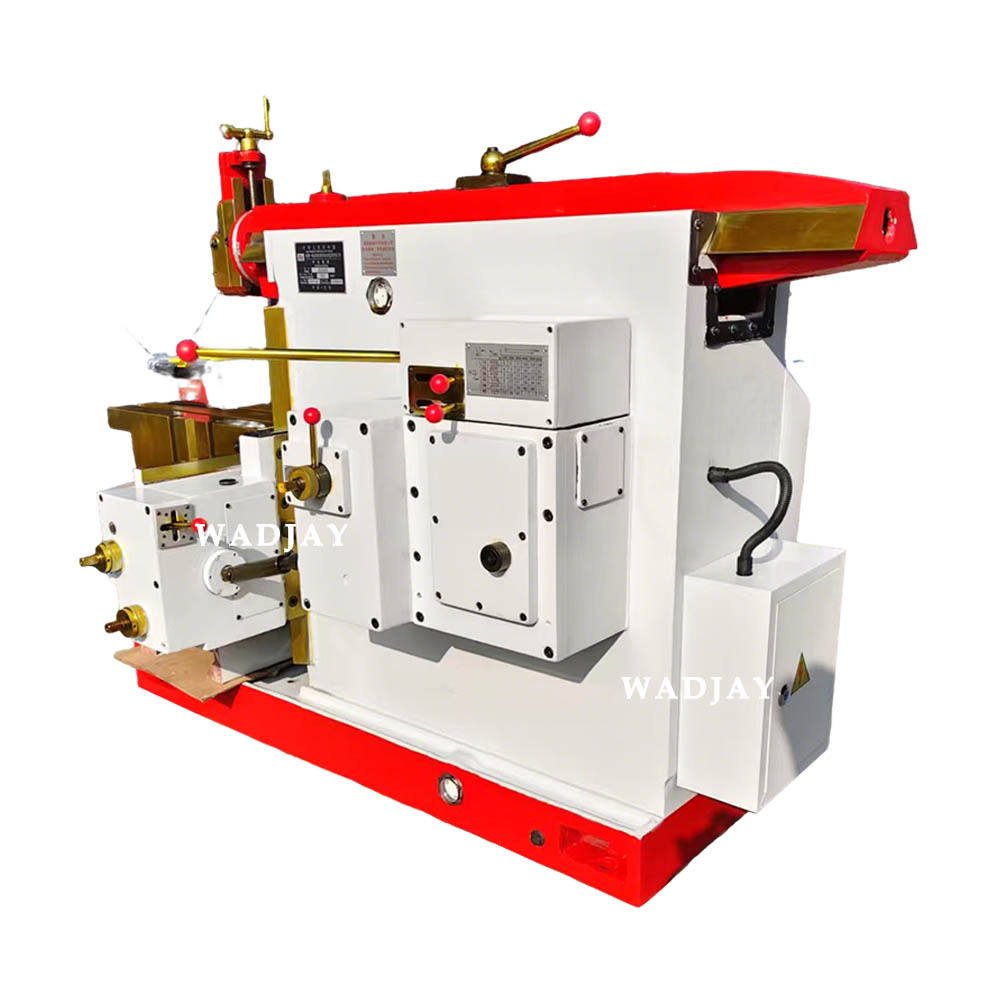

BC6063 Mechanical Shaping Machine
Model: BC6063
Quick Specifications
| Working Area: | 2500 × 1200 × 1800mm |
| Spindle Speed: | 16 - 125strokes/min |
| Accuracy: | ±0.03 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | BC6063 Standard Value |
|---|---|---|
| Max. Shaping Stroke | mm | 630 |
| Max. Workpiece Height | mm | 320 |
| Ram Stroke Adjustment Range | mm | 0 – 630 |
| Ram Speed Range | strokes/min | 16 – 125 |
| Main Motor Power | kW | 4 |
| Feed Rate Range | mm/stroke | 0.25 – 2 |
| Machining Accuracy | mm | ±0.03 |
| Net Weight | kg | 2800 (Industry standard for BC6063 shaping machine) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 2500 × 1200 × 1800 |
Features
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during cutting, guaranteeing long-term machining accuracy and stability.
✅ Adjustable Ram & Stroke
Flexible ram stroke and speed adjustment enable precise control for slotting, keyway cutting, and surface planing operations.
✅ Robust Mechanical Transmission
High-torque gear drive system delivers powerful cutting performance for steel, cast iron, and alloy workpieces.
✅ User-Friendly Manual Operation
Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.
✅ Centralized Lubrication System
Automatic lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, cast iron, and aluminum, suitable for diverse metalworking applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
