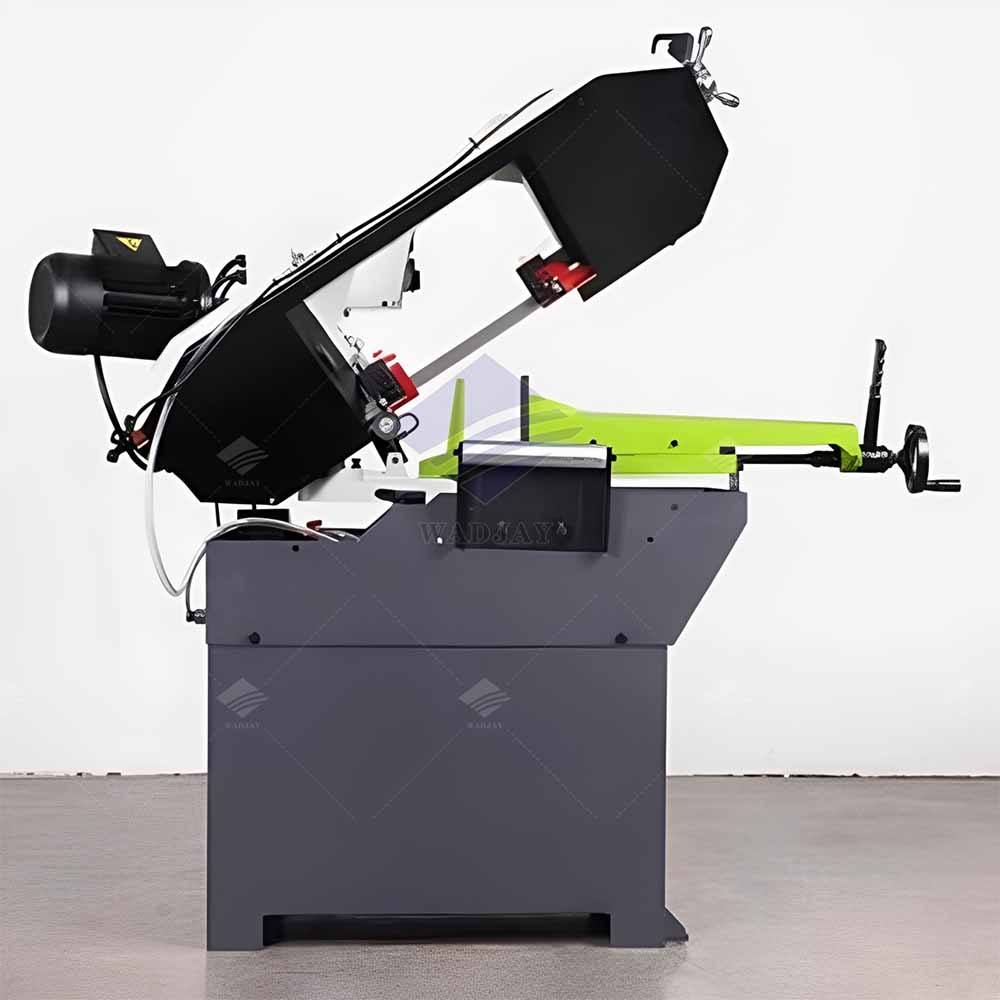

BS-315GH Swivel Head Metal Band Saw

Model: BS-315GH

Quick Specifications

Working Area:	1800 × 1200 × 1600mm
Spindle Speed:	27 / 69m/min
Accuracy:	±0.1
Tool Capacity:	12

Product Video

Watch on YouTube for best quality

Description

The BS-315GH is a compact, versatile swivel-head horizontal band saw, engineered for precision straight and miter cutting of metal bars, pipes, and profiles. It is the ideal solution for small-to-medium metalworking workshops, fabrication shops, and maintenance departments, delivering flexible cutting angles and consistent performance for both production and repair tasks.

Built with a heavy-duty welded steel base and a precision swivel cutting head, it ensures exceptional rigidity and vibration-free operation during angle cutting. The machine features a manual swivel head (0°-45°), a quick-clamp vise, and a user-friendly control system for easy operation. Equipped with a variable speed band drive, a built-in coolant system, and safety interlocks, it delivers reliable, high-quality cuts with minimal maintenance. Backed by CE/ISO certification, a 12-month global warranty, and full customization for voltage, it meets the stringent standards of global metalworking industries.

Technical Specifications

Parameter	Unit	BS-315GH Standard Value
Max. Cutting Capacity (Round, 90°)	mm	315
Max. Cutting Capacity (Square, 90°)	mm	315 × 315
Max. Cutting Capacity (Round, 45°)	mm	220
Swivel Head Range	°	0 – 45
Band Speed Range	m/min	27 / 69
Band Blade Size	mm	2750 × 27 × 0.9
Main Motor Power	kW	1.5
Cutting Accuracy	mm	±0.1
Net Weight	kg	850 (Industry standard for BS-315GH swivel head band saw)
Standard Power Supply	–	3 Phase 380V, 50Hz
Customizable Voltage	–	1 Phase 220V / 3 Phase 220V/415V/440V, 50/60Hz
Overall Dimensions (L×W×H)	mm	1800 × 1200 × 1600

Features

✅ Swivel Head for Miter Cuts

0°-45° adjustable cutting head enables precise angle and miter cuts, eliminating the need for secondary workpiece repositioning.

✅ Compact & Space-Saving Design

Small footprint and lightweight construction make it perfect for workshops with limited space, while maintaining full cutting power.

✅ Quick-Release Vise Clamping

Fast, secure vise clamping reduces setup time, improving efficiency for high-volume production runs.

✅ Variable Speed Band Drive

Dual-speed band drive allows optimal cutting for different materials (steel, aluminum, stainless steel), maximizing blade life and cut quality.

✅ Integrated Coolant System

Built-in coolant pump and reservoir keep the blade and workpiece cool, reducing heat distortion and extending tool life.

✅ User-Friendly Manual Operation

Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.

✅ Global Export Compatibility

Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
