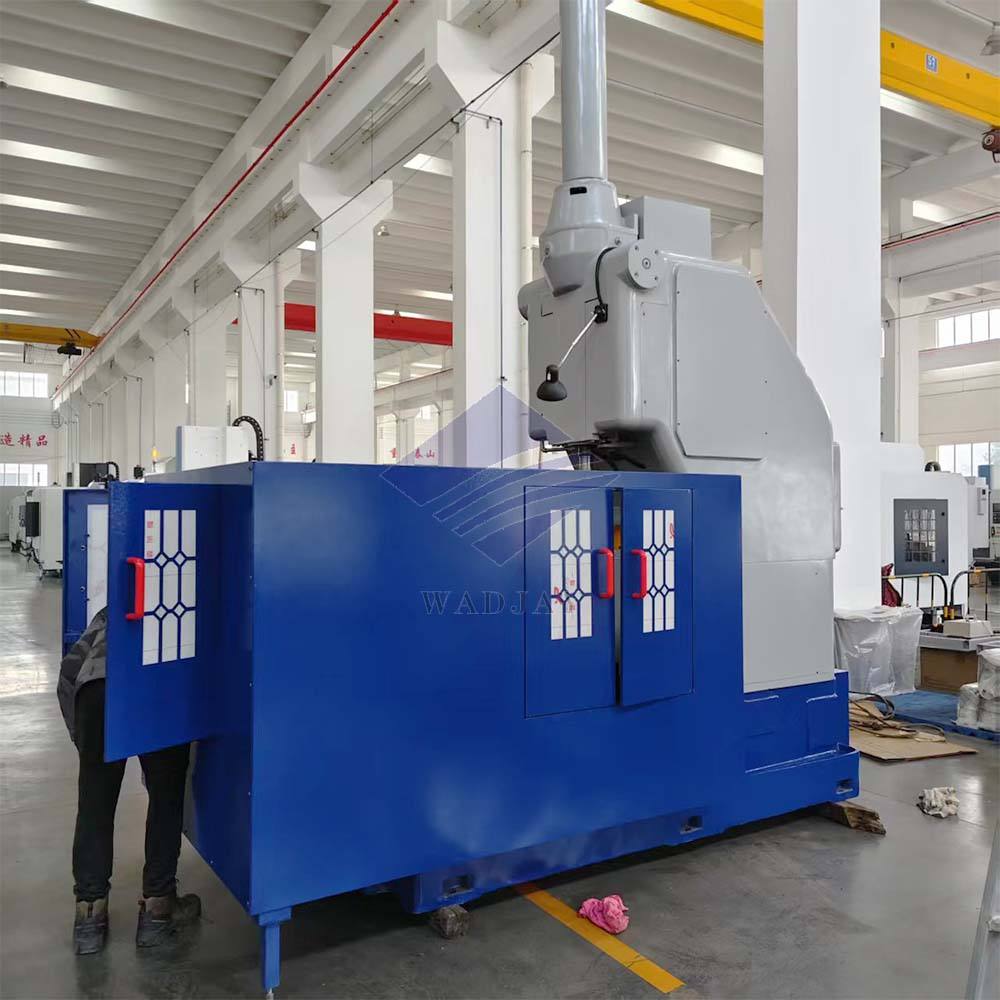

CK5116 CNC Vertical Lathe (Heavy-Duty) | Precision Turning Center for Large Flanges
Model: CK5116
Quick Specifications
| Working Area: | 6500 × 4200 × 4800mm |
| Spindle Speed: | 5 - 500r/min |
| Accuracy: | ±0.01 |
| Tool Capacity: | 12 |
Product Video
Description
Core Technical Highlights:
Superior Structural Rigidity: Heavy-duty cast iron base with a reinforced rib design eliminates vibration during heavy cutting, ensuring perfect surface finishes.
High-Torque Spindle: Powerful spindle motor delivers extreme torque for turning tough materials like stainless steel and alloy steel, reducing processing time significantly.
Large Workpiece Capacity: Supports a 1.6-meter maximum turning diameter, making it ideal for wind power flanges and aerospace components.
Certified Quality: Fully CE / ISO certified with customizable voltage configurations (220V/415V/440V) to meet international site requirements.
Technical Specifications
| Parameter | Unit | CK5116 Standard Value |
|---|---|---|
| Max. Turning Diameter | mm | 1600 |
| Max. Turning Height | mm | 1000 |
| Spindle Taper | — | A2-15 / A2-16 |
| Spindle Speed Range | r/min | 5 – 500 |
| Main Motor Power | kW | 22 / 30 |
| Rapid Traverse Speed (X/Z) | m/min | 12 / 12 |
| Machining Accuracy | mm | ±0.01 |
| Net Weight | kg | 2600 |
| Standard Power Supply | — | 3 Phase 380V, 50Hz |
| Customizable Voltage | — | 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 6500 × 4200 × 4800 |
Features
✅ Superior Structural Rigidity
Heavy-duty cast iron base with reinforced rib design eliminates vibration during heavy cutting, ensuring perfect surface finishes and long-term precision retention for large workpieces.
✅ High-Torque Spindle Performance
Powerful spindle motor delivers extreme torque for turning tough materials like stainless steel and alloy steel, reducing processing time by 40% compared to standard lathes.
✅ Large Workpiece Capacity
1.6-meter maximum turning diameter supports processing of extra-large flanges, gear blanks, and wheel discs, eliminating the need for multiple setups.
✅ Intuitive CNC Control
Professional industrial controller with 3D simulation and automatic tool compensation software reduces operator training time and improves programming accuracy.
✅ Smart Safety & Protection System
Equipped with emergency stop buttons, safety interlocks, and a fully enclosed protective cover, ensuring operator safety and preventing chip splashing.
✅ Global Export Ready
Customizable spindle power, tool magazine, and control systems to meet international project requirements, with complete export documentation.
