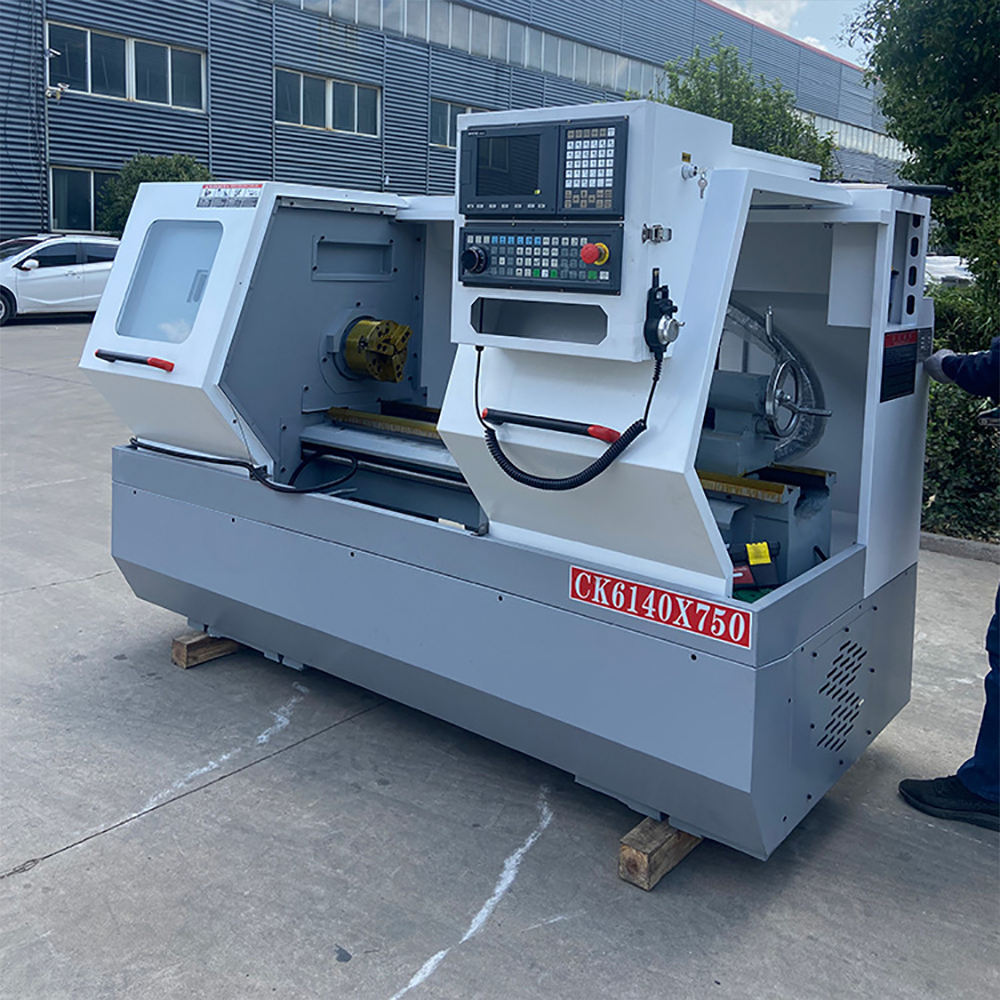

CK6140×750 CNC Horizontal Lathe
Model: CK6140
Quick Specifications
| Working Area: | 2800 × 1700 × 1700mm |
| Spindle Speed: | 100 - 2500r/min |
| Accuracy: | ±0.01mm |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | CK6140×750 Standard Value |
|---|---|---|
| Max. Swing Over Bed | mm | 400 |
| Max. Turning Diameter | mm | 400 |
| Max. Workpiece Length (Between Centers) | mm | 750 |
| Spindle Bore Diameter | mm | 52 / 82 (Customizable) |
| Spindle Speed Range | r/min | 100 – 2500 |
| Main Motor Power | kW | 7.5 |
| Tool Turret | – | 8-Position Hydraulic Tool Turret |
| Control System | – | 2-Axis CNC Servo System |
| Machining Accuracy | mm | ±0.01 |
| Net Weight | kg | 3500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 2800 × 1700 × 1700 |
Features
✅ Fully CNC Automated Operation
2-axis independent servo drive enables automatic turning, facing, boring, threading, and grooving, reducing human error by 90% and improving production efficiency by 60% compared to manual lathes.
✅ Heavy-Duty Rigid Construction
Reinforced cast iron bed and hardened guideways ensure zero deflection during high-torque cutting, delivering superior surface finish and long-term dimensional stability for medium-sized parts.
✅ High-Efficiency Hydraulic Tool Turret
8-position hydraulic tool turret supports fast tool change (≤1.5s), reducing auxiliary time and boosting continuous production efficiency.
✅ User-Friendly CNC Interface
Intuitive touchscreen control panel with 3D simulation and one-click operation, reducing operator training time and enabling complex part programming in minutes.
✅ Complete Safety & Protection System
Fully enclosed protective hood, emergency stop, overload protection, and automatic chip removal, ensuring operator safety and a clean workshop environment.
✅ Centralized Lubrication System
Automatic centralized lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Global Export Ready
CE-certified, with customizable voltage, spindle bore, and complete export documentation, suitable for international shipping and global customer projects.
