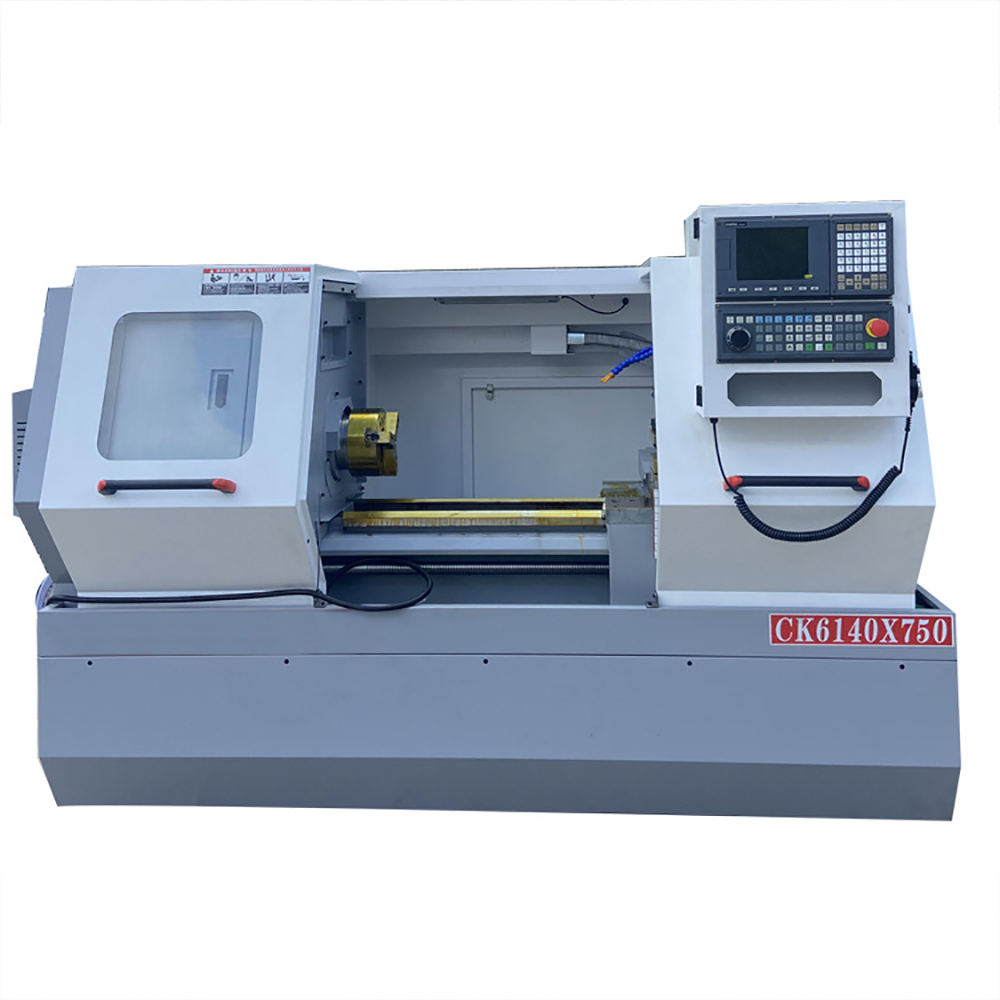

CK6140×750 High Precision Horizontal Flat Bed CNC Lathe Machine
Model: CK6140×750
Quick Specifications
| Working Area: | 2800 × 1700 × 1800mm |
| Spindle Speed: | 100 - 2000r/min |
| Accuracy: | 0.005 |
| Tool Capacity: | 12 |
Product Video
Description
Key Technical Highlights:
Maximum Stability: Built with a reinforced, stress-relieved cast iron bed and precision linear guideways for vibration-free cutting.
High-Torque Performance: Features a powerful servo spindle and a 4/8-station automatic tool turret for efficient machining.
Automated Workflow: Equipped with an automatic chip removal system and centralized lubrication to reduce manual maintenance.
Safety & Certification: Fully enclosed safety guard, CE/ISO certified, with a 12-month global warranty.
Technical Specifications
| Parameter | Unit | CK6140×750 Standard Value |
|---|---|---|
| Max. Swing Over Bed | mm | 400 |
| Max. Swing Over Cross Slide | mm | 210 |
| Max. Turning Length | mm | 750 |
| Spindle Bore Diameter | mm | 82 |
| Spindle Speed Range | r/min | 100 – 2000 |
| Spindle Motor Power | kW | 7.5 |
| Tool Turret Capacity | pcs | 4 (Optional 8) |
| Positioning Accuracy | mm | ±0.01 |
| Repeat Positioning Accuracy | mm | ±0.005 |
| Net Weight | kg | 3200 (Industry standard for CK6140×750 CNC lathe) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 2800 × 1700 × 1800 |
Features
✅ Heavy-Duty Industrial Construction
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during heavy cutting, guaranteeing long-term dimensional stability and machining accuracy.
✅ High-Power Servo Spindle
7.5kW high-torque spindle delivers strong cutting performance for steel, stainless steel, and alloy workpieces, supporting heavy-duty turning operations.
✅ Automatic Tool Turret
4-station (optional 8-station) electric tool turret enables fast tool change, drastically reducing non-cutting time and improving production efficiency.
✅ User-Friendly CNC Control System
Intuitive industrial CNC controller with touchscreen interface supports G-code programming, 3D simulation, and real-time monitoring, making complex turning operations easy to implement.
✅ Fully Enclosed Safety Design
Integrated safety guard with large observation window and emergency stop ensures operator safety, complying with international safety standards.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, aluminum alloy, copper, and engineering plastics, suitable for diverse precision turning applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
