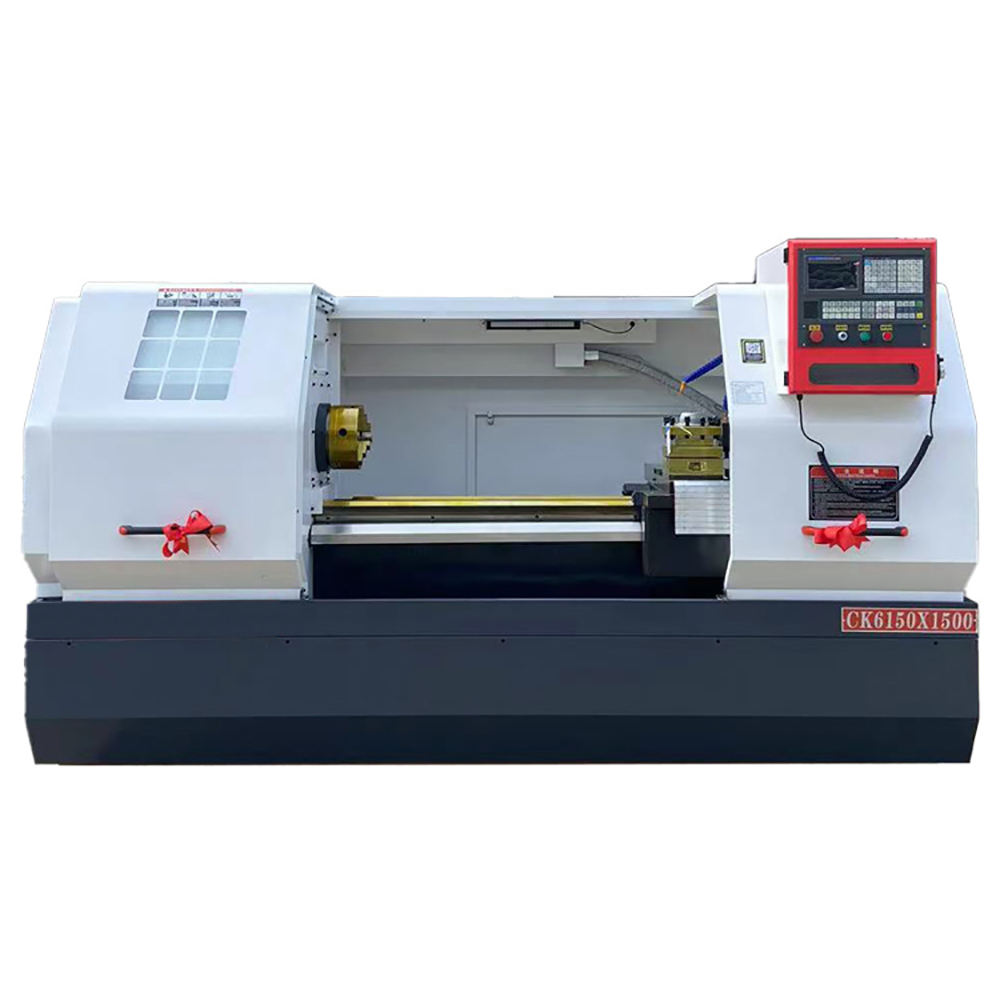

CK6150×1500 Heavy-Duty Horizontal CNC Lathe Machine
Model: CK6150×1500
Quick Specifications
| Working Area: | 3800 × 1800 × 2000mm |
| Spindle Speed: | 80 - 2000rpm |
| Accuracy: | 0.005 |
| Tool Capacity: | 8 |
Product Video
Description
The CK6150×1500 is a premier heavy-duty horizontal CNC lathe, engineered for high-precision turning, facing, threading, and grooving on large-diameter metal workpieces.
Core Technical Highlights:
Superior Rigidity: Features an extra-wide, stress-relieved cast iron bed and precision linear guideways for vibration-free heavy cutting.
High-Power Spindle: Equipped with a 11kW high-torque servo spindle and 105mm (optional 130mm) large bore for processing heavy shafts and pipes.
Precision Control: Features a 4/8-station automatic tool turret and intuitive CNC system for efficient, unattended production.
Global Reliability: Fully CE / ISO certified with a 12-month global warranty.
It is the industry-standard choice for mass production in automotive manufacturing, heavy machinery parts, aerospace components, and general precision machining workshops. Built with an extra-wide, stress-relieved cast iron bed and precision linear guideways, it delivers exceptional rigidity and vibration-free performance under heavy cutting loads. The machine features a high-torque servo spindle, 4/8-station automatic tool turret, and a user-friendly industrial CNC control system. Equipped with automatic chip removal, centralized lubrication, and a fully enclosed safety guard, it ensures efficient, unattended production with minimal operator intervention. Backed by CE/ISO certification and a 12-month global warranty, it meets the stringent standards of global metalworking industries.
Technical Specifications
| Parameter | Unit | CK6150×1500 Standard |
|---|---|---|
| Max. Swing Over Bed | mm | 500 |
| Max. Swing Over Cross Slide | mm | 260 |
| Max. Turning Length | mm | 1500 |
| Spindle Bore Diameter | mm | 105 (Optional 130) |
| Spindle Speed Range | rpm | 80 – 2000 |
| Spindle Motor Power | kW | 11 |
| Tool Turret Capacity | pcs | 4 (Optional 8) |
| Positioning Accuracy | mm | ±0.01 |
| Repeat Accuracy | mm | ±0.005 |
| Net Weight | kg | 4800 |
| Power Supply | – | 3PH 380V 50Hz |
| Overall Dimensions (L×W×H) | mm | 3800 × 1800 × 2000 |
Features
✅ Heavy-Duty Industrial Construction
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during high-speed turning, guaranteeing long-term dimensional stability and machining accuracy.
✅ High-Power Spindle
11kW high-torque spindle delivers superior cutting performance for large steel, stainless steel, and alloy workpieces, supporting heavy roughing and finishing operations.
✅ Large Bore Spindle
105mm (optional 130mm) spindle bore enables easy processing of long shafts, pipes, and hollow parts, maximizing versatility.
✅ Automatic Tool Changer
4-station (optional 8-station) electric turret enables fast tool change, drastically reducing non-cutting time and improving production efficiency.
✅ User-Friendly CNC Control
Intuitive industrial CNC controller supports G-code programming, 3D simulation, and real-time monitoring, making complex turning operations easy to implement.
✅ Global Export Ready
Fully customizable electrical system to meet international power standards, with a robust, shock-resistant frame designed for long-distance shipping.
