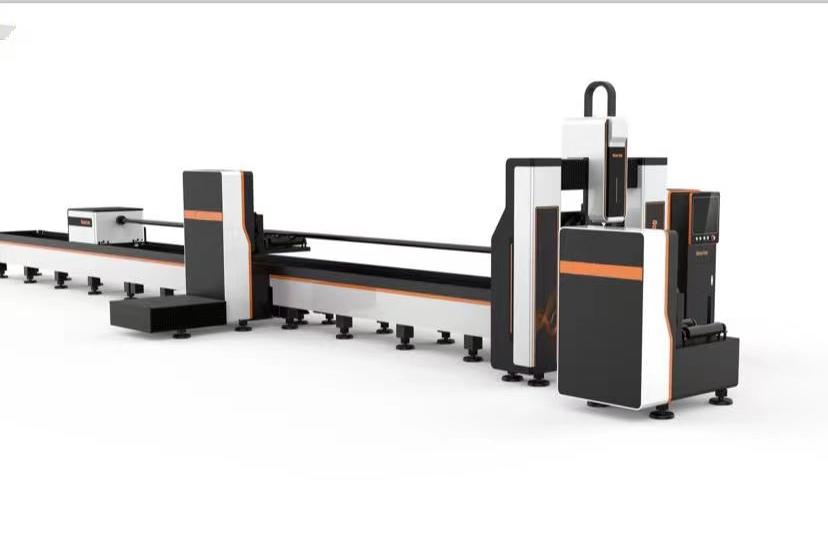

CNC Tube Laser Cutting Machine
Model: 6020
Quick Specifications
| Working Area: | 8500 × 1500 × 1800mm |
| Spindle Speed: | 0 - 60m/min |
| Accuracy: | Servo Motor |
| Tool Capacity: | 1 |
Product Video
Description
Technical Specifications
| Parameter | Unit | 6020 Standard Specification |
|---|---|---|
| Max. Tube Length | mm | 6000 |
| Max. Tube Diameter | mm | 200 |
| Laser Power | W | 1000 / 1500 / 2000 / 3000 (Optional) |
| Max. Cutting Speed | m/min | 0 – 60 |
| Positioning Accuracy | mm | ±0.05 |
| Repositioning Accuracy | mm | ±0.02 |
| Control System | – | CypCut |
| Drive System | – | Servo Motor |
| Net Machine Weight | kg | 3500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 8500 × 1500 × 1800 |
Features
Capable of cutting complex patterns, holes, and bevels on various metal tubes with micron-level accuracy, eliminating the need for secondary operations.
✅ Wide Tube Compatibility
Processes round, square, rectangular, and irregular tubes of carbon steel, stainless steel, aluminum, and copper.
✅ Automated Production Ready
Automatic feeding, clamping, and centering systems enable continuous production, significantly improving efficiency and reducing labor costs.
✅ Stable & Durable Structure
Heavy-duty welded bed and precision guides ensure long-term stability and consistent cutting quality, even in continuous operation.
✅ User-Friendly Operation
Intuitive CypCut control system with built-in nesting software simplifies programming and optimizes material usage.
✅ Global Export Ready
Fully CE-certified with customizable laser power and configurations, ready for integration into production lines worldwide.
