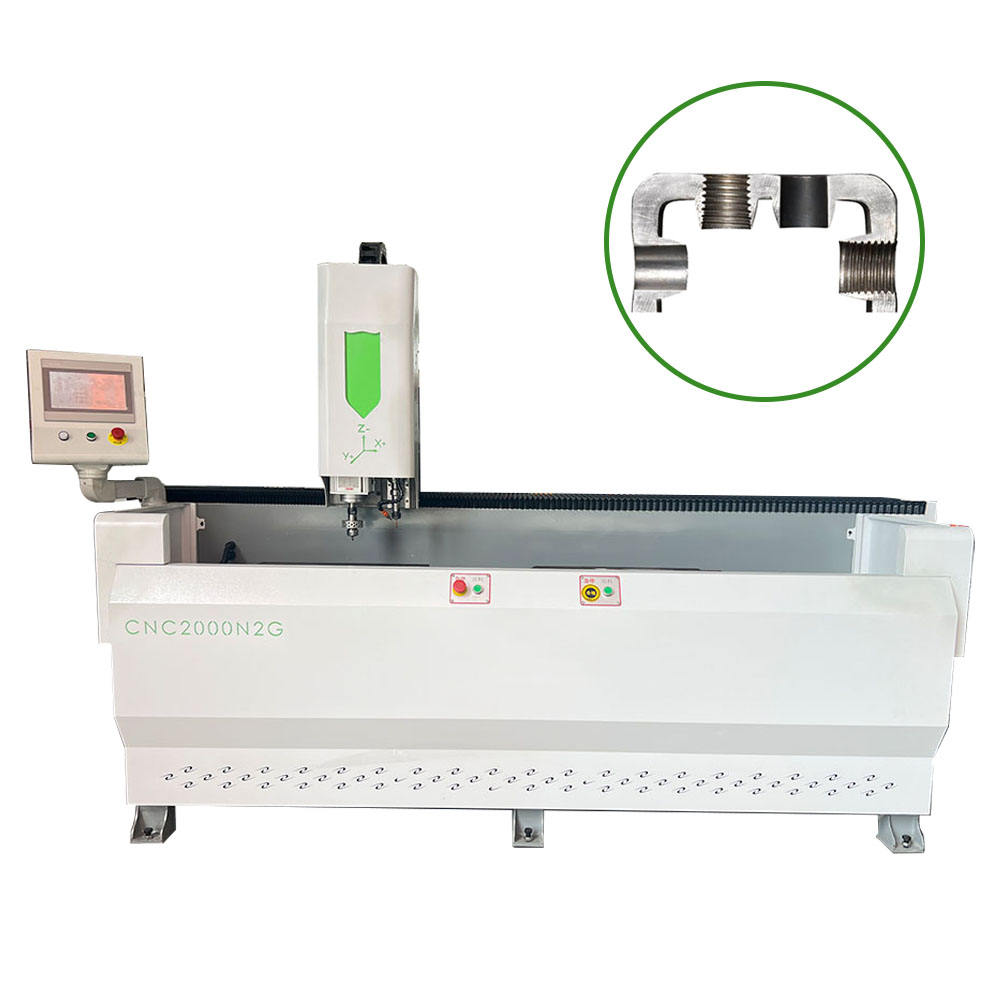

CNC2000N2G 2-Axis CNC Drilling & Tapping Machine

CNC2000N2G 2-Axis CNC Drilling & Tapping Machine

Model: CNC2000N2G

Quick Specifications

Working Area:	3500×1800×2200mm
Spindle Speed:	6000r/min
Accuracy:	±0.005
Tool Capacity:	12

Product Video

Watch on YouTube for best quality

Description

The CNC2000N2G is a high-precision 2-axis CNC drilling and tapping machine, purpose-built for efficient, automated hole machining on long workpieces such as aluminum profiles, steel pipes, and curtain wall components. It integrates CNC-controlled X/Z axis movement, automatic tool change, and real-time position monitoring, making it an ideal solution for the aluminum door/window industry, curtain wall manufacturing, and metal profile processing.

Built with a heavy-duty welded steel frame and precision linear guideways, it delivers exceptional rigidity and vibration-free operation. The machine features a high-torque servo spindle, a user-friendly industrial CNC control system, and a fully automatic chip removal system. Equipped with a centralized lubrication device and safety interlocks, it ensures stable, high-efficiency production with minimal operator intervention. Backed by CE/ISO certification, a 12-month global warranty, and full customization for voltage and configuration, it meets the stringent standards of global metalworking industries.

Technical Specifications

Parameter	Unit	CNC2000N2G Standard Value
X-axis Travel (Worktable)	mm	2000
Z-axis Travel (Spindle)	mm	300
Max. Spindle Speed	r/min	6000
Spindle Taper	–	BT30
Spindle Motor Power	kW	5.5
Positioning Accuracy	mm	±0.01
Repeat Positioning Accuracy	mm	±0.005
Net Weight	kg	3200 (Industry standard for 2m 2-axis CNC drilling machine)
Standard Power Supply	–	3 Phase 380V, 50Hz
Customizable Voltage	–	3 Phase 220V/415V/440V, 50/60Hz
Overall Dimensions (L×W×H)	mm	3500×1800×2200

Features

✅ Heavy-Duty Rigid Construction

Reinforced welded steel frame and precision linear guideways ensure long-term dimensional stability and vibration-free operation during high-speed drilling.

✅ High-Precision 2-Axis CNC Control

Full-servo X/Z axis drive system delivers ultra-high positioning accuracy, meeting strict tolerance requirements for aluminum profile and pipe hole machining.

✅ Automatic Drilling & Tapping Integration

Integrated automatic tool changer enables seamless switching between drilling and tapping operations, drastically reducing non-cutting time and improving production efficiency.

✅ User-Friendly CNC Control System

Intuitive industrial CNC controller with touchscreen interface supports G-code programming, 3D simulation, and real-time monitoring, making complex machining operations easy to implement.

✅ Automatic Chip Removal & Lubrication

Integrated chip conveyor and centralized lubrication system reduce manual maintenance, extend machine service life, and ensure stable continuous operation.

✅ Wide Material Compatibility

Processes aluminum alloy, stainless steel, carbon steel, and plastic profiles, suitable for diverse industrial applications.

✅ Global Export Compatibility

Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
