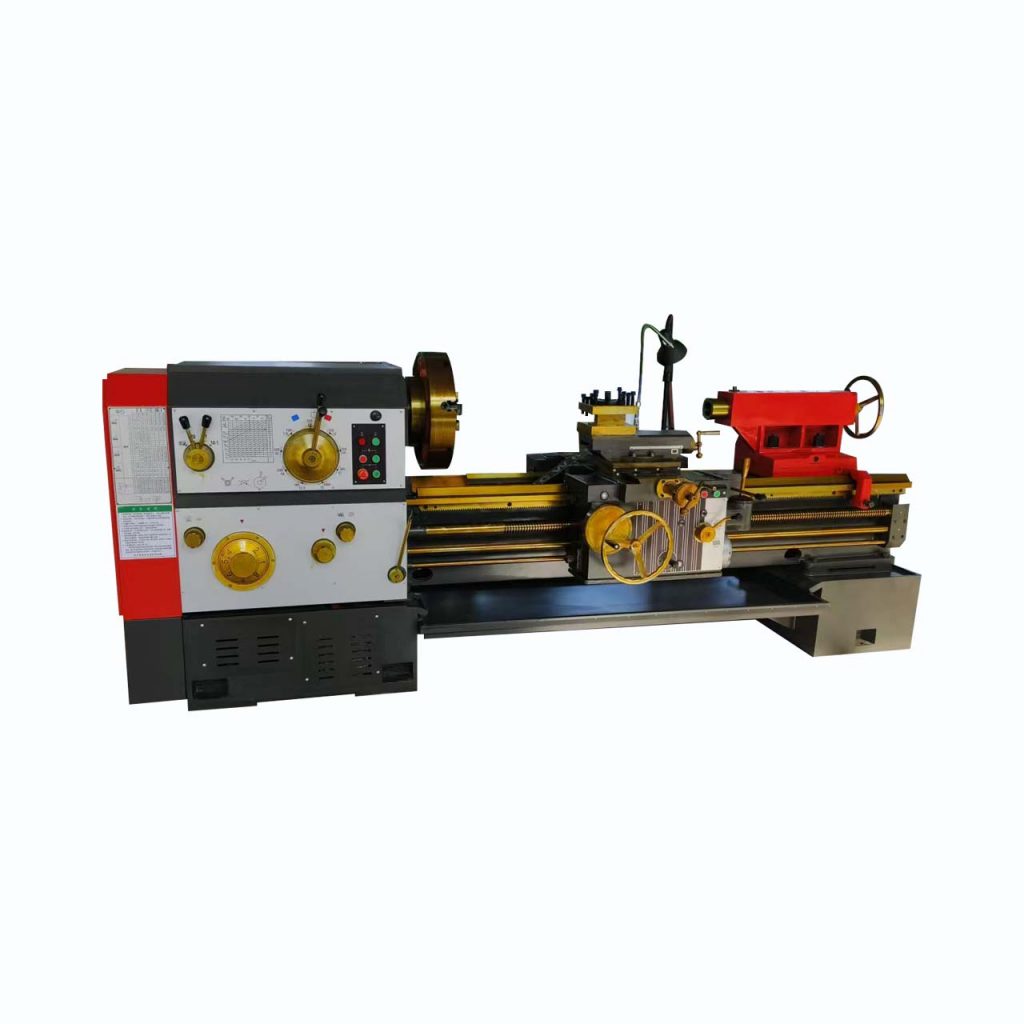

CW6163B Heavy-Duty Horizontal Lathe Machine
Model: CW6163B
Quick Specifications
| Working Area: | 4500×1800×1800mm |
| Spindle Speed: | 10-1250r/min |
| Accuracy: | ±0.01 |
| Tool Capacity: | 3 Phase 380V, 50Hz |
Product Video
Description
Technical Specifications
| Parameter | Unit | CW6163B Standard Value |
|---|---|---|
| Max. Workpiece Length | mm | 3000 |
| Max. Workpiece Diameter | mm | 630 |
| Spindle Bore Diameter | mm | 105 |
| Spindle Speed Range | r/min | 10-1250 |
| Spindle Motor Power | kW | 11 |
| Longitudinal Travel | mm | 3200 |
| Cross Travel | mm | 630 |
| Vertical Travel | mm | 300 |
| Turning Accuracy | mm | ±0.01 |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 4500×1800×1800 |
| Net Weight | kg | 8500 |
Features
- Heavy-Duty Rigid Construction
Aged cast iron bed and headstock provide exceptional rigidity, ensuring stable clamping and vibration-free operation during heavy-torque turning of large workpieces.
- High-Precision Turning Performance
Precision-ground guide rails and high-torque spindle deliver accurate cylindricality and thread quality, with excellent surface finish for heavy mechanical components.
- Manual Feed Control System
Intuitive handwheel adjustment and push-button operation enable easy parameter setting and precise turning control, with a work lamp for clear visibility.
- Wide Industrial Applicability
Compatible with steel, stainless steel, cast iron, and alloy materials, perfect for shaft, cylinder, flange, and heavy machinery component processing.
- Global Power Compatibility
Standard 380V 50Hz configuration, fully customizable voltage to fit European, American, Asian and Middle Eastern power grid standards.
- Customizable Bed Length
Available in bed lengths of 1500mm, 2000mm, 3000mm, and 5000mm to meet diverse production demands for long shaft workpieces.
