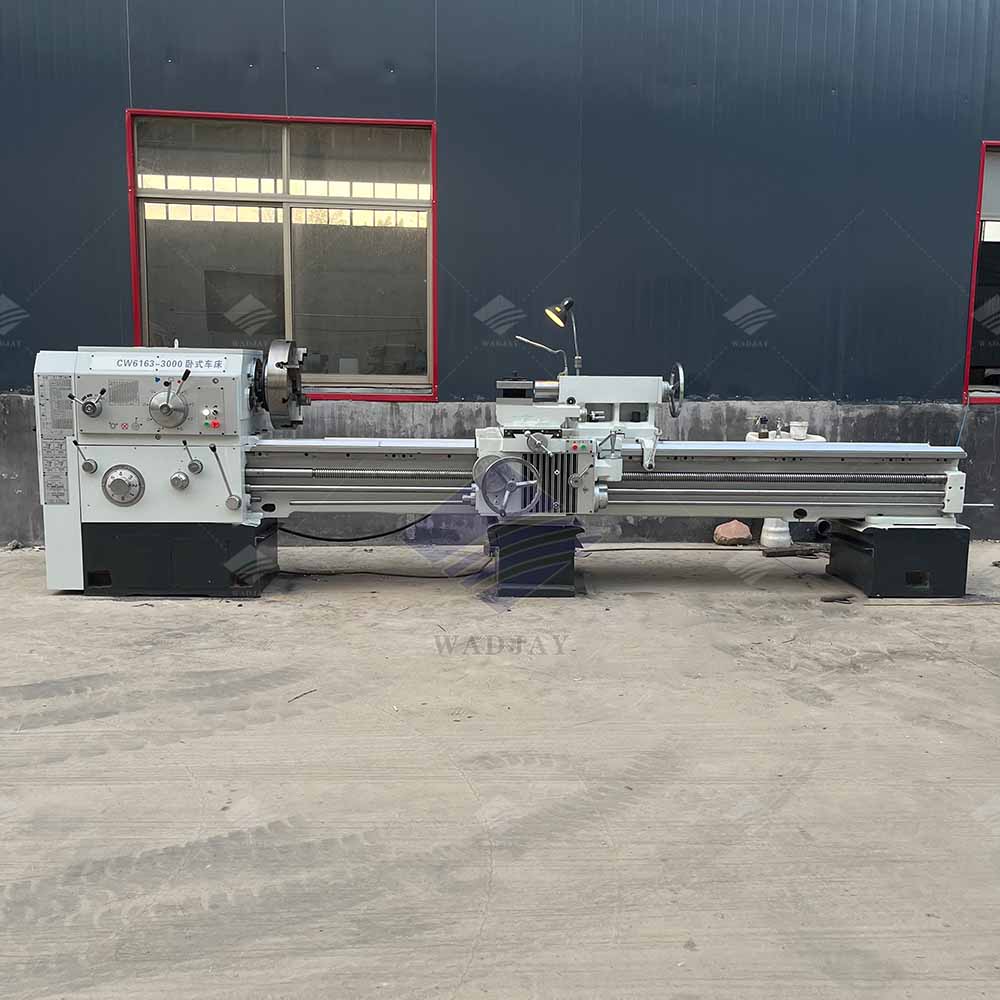

CW6163×3000 Heavy-Duty Horizontal Lathe
Model: CW6163×3000
Quick Specifications
| Working Area: | 5800 × 1600 × 1600mm |
| Spindle Speed: | 10 - 1000r/min |
| Accuracy: | 0.01 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | CW6163×3000 Standard Value |
|---|---|---|
| Max. Swing Over Bed | mm | 630 |
| Max. Turning Diameter | mm | 630 |
| Max. Workpiece Length (Between Centers) | mm | 3000 |
| Spindle Bore Diameter | mm | 105 |
| Spindle Speed Range | r/min | 10 – 1000 |
| Main Motor Power | kW | 11 |
| Machining Accuracy | mm | ±0.01 |
| Net Weight | kg | 9200 (Industry verified standard) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 5800 × 1600 × 1600 |
Features
✅ Heavy-Duty Rigid Construction
Reinforced cast iron bed with a wide guideway design eliminates chatter during heavy cutting, guaranteeing long-term dimensional stability and machining accuracy for long workpieces.
✅ High-Torque Spindle Performance
11kW high-power spindle delivers extreme torque for turning tough materials like stainless steel and alloy steel, reducing processing time by 40% compared to standard lathes.
✅ Long Workpiece Processing Capacity
3000mm bed length supports machining of extra-long shaft parts, equipped with a follow rest to prevent workpiece deflection during turning.
✅ Versatile Machining Capability
Supports turning, facing, boring, threading, and grooving, making it a universal solution for diverse shaft, disc, and flange part manufacturing.
✅ User-Friendly Manual Operation
Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.
✅ Centralized Lubrication System
Automatic centralized lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, cast iron, and aluminum, suitable for diverse mechanical component and heavy machinery manufacturing applications.
✅ Global Export Compatibility
Fully customizable bed length, spindle bore, and voltage to fit international power standards, with a robust, shock-resistant frame designed for long-distance shipping and installation.
