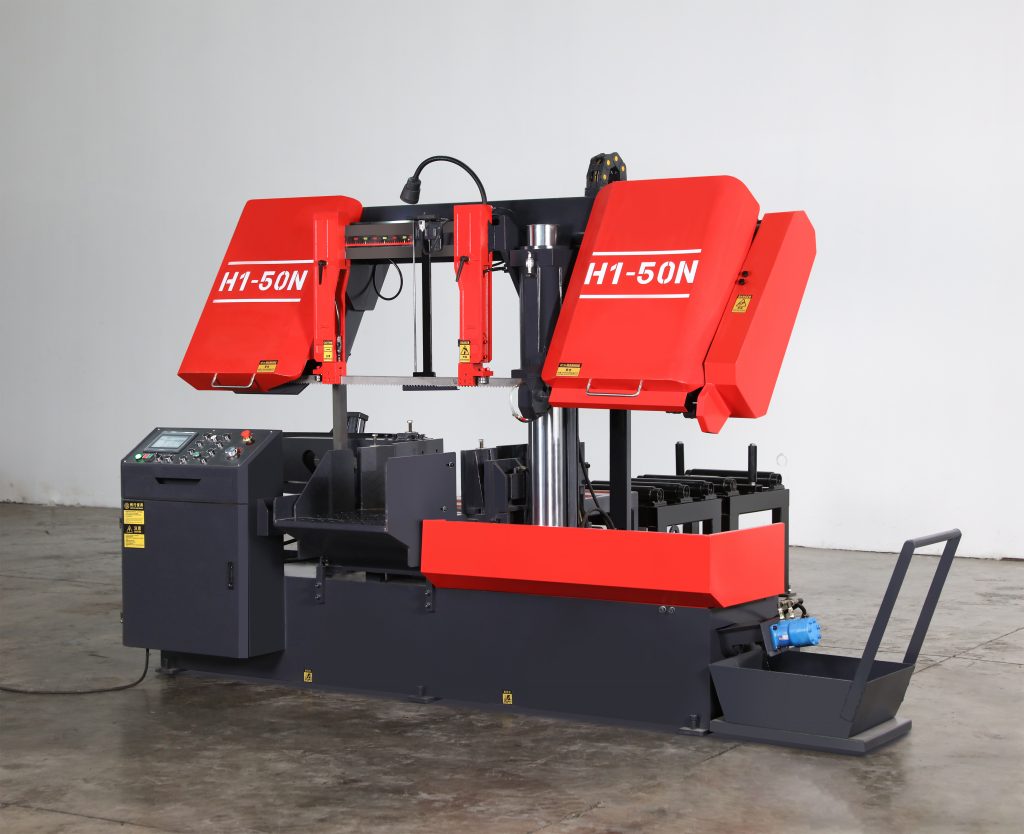

Double Column Horizontal Band Saw
Model: H1-50N
Quick Specifications
| Working Area: | 2200 × 1200 × 1600mm |
| Spindle Speed: | 10 - 200 (Adjustable)mm/min |
| Accuracy: | 0° (Straight Cut) |
| Tool Capacity: | 2 |
Product Video
Description
Technical Specifications
| Parameter | Unit | H1-50N Standard Specification |
|---|---|---|
| Max. Cutting Capacity (Round) | mm | 500 |
| Max. Cutting Capacity (Square) | mm | 500 × 500 |
| Blade Speed Range | m/min | 20 – 80 (Variable) |
| Feed Speed | mm/min | 10 – 200 (Adjustable) |
| Main Motor Power | kW | 4 |
| Hydraulic Motor Power | kW | 1.5 |
| Control System | – | PLC with Digital Display |
| Cutting Angle | ° | 0° (Straight Cut) |
| Net Machine Weight | kg | 180 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 2200 × 1200 × 1600 |
Features
✅ Heavy-Duty Cutting Performance
4kW main motor and robust blade drive system deliver stable cutting force for steel, alloy steel, and stainless steel bars up to 500mm in diameter.
✅ Rigid Double Column Structure
Double-column design eliminates deflection during cutting, ensuring straight, burr-free cuts and long blade life.
✅ Automatic & Precise Control
PLC control with digital display allows easy setting of cutting parameters, including feed speed and cut length, for consistent repeatability.
✅ Versatile Material Compatibility
Suitable for cutting solid bars, pipes, and profiles of various materials, including carbon steel, alloy steel, and stainless steel.
✅ Low Maintenance & Long Service Life
Standardized components and simple design reduce downtime and maintenance costs, making it ideal for continuous production.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
