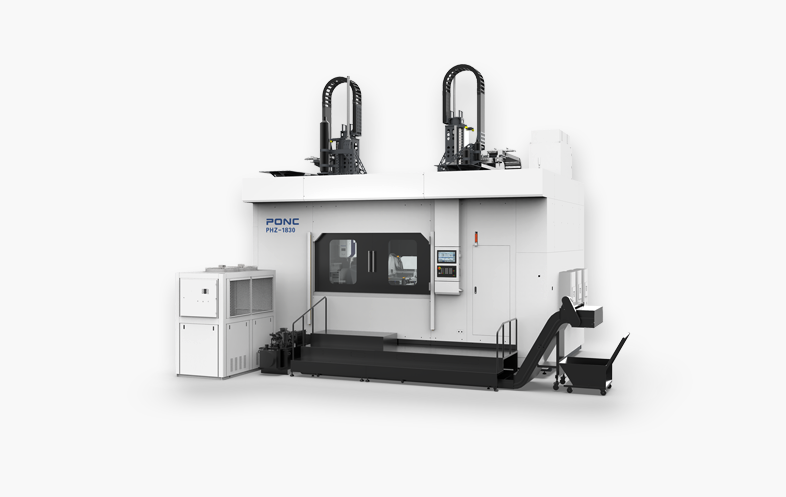

Dual-Spindle Horizontal CNC Machining Center

Dual-Spindle Horizontal CNC Machining Center

Model: PHZ-1830

Quick Specifications

Working Area:	8500 × 6200 × 5800mm
Spindle Speed:	50 - 12000rpm
Accuracy:	±0.015 / 1000
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The PHZ-1830 is a high-efficiency, high-precision dual-spindle horizontal CNC machining center, purpose-built for mass production of box-type parts such as motor housings, gearboxes, and engine blocks. It is a core automated equipment in new energy vehicle manufacturing, automotive, and aerospace industries, delivering double the production efficiency of single-spindle machines while maintaining consistent accuracy.

Equipped with two independent spindles and a dual-station rotary worktable, it enables simultaneous machining of two identical workpieces, significantly reducing cycle time and labor costs. Its fully enclosed protective structure, automatic chip removal system, and advanced CNC control ensure stable, safe, and low-maintenance operation for 24/7 continuous production.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	PHZ-1830 Standard Specification
X/Y/Z Axis Travel	mm	1800 / 1300 / 1000
Worktable Size	mm	800 × 800 (Dual Station)
Max. Workpiece Weight	kg	1500 per station
Spindle Taper	–	BT50
Spindle Speed Range	rpm	50 – 12000
Spindle Power (S1/S6)	kW	15/22 per spindle
Tool Magazine Capacity	pcs	24 per spindle
Rapid Traverse Speed (X/Y/Z)	m/min	48 / 48 / 40
Control System	–	Siemens 840D / Fanuc 0i-MF
Positioning Accuracy	mm	±0.015 / 1000
Repeatability	mm	±0.008
Net Machine Weight	kg	35000
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Machine Dimensions (L×W×H)	mm	8500 × 6200 × 5800

Features

✅ Double Production Efficiency

Two independent spindles and dual-station worktable enable simultaneous machining of two workpieces, cutting production cycle time by 50% compared to single-spindle machines.

✅ High-Precision Horizontal Machining

Horizontal spindle design provides superior chip removal and reduces thermal deformation, ensuring consistent accuracy for complex box-type parts.

✅ Fully Automated Operation

Integrated automatic chip conveyor, coolant system, and tool changer support 24/7 unmanned production, minimizing labor intensity.

✅ Ultra-Rigid Structure

One-piece cast iron bed and reinforced column ensure zero deflection during heavy cutting, delivering excellent surface finish and long-term stability.

✅ New Energy Industry Optimized

Specially designed for mass production of EV motor housings, gearboxes, and battery tray components, meeting the high-volume demand of the automotive industry.

✅ Global Export Ready

Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
