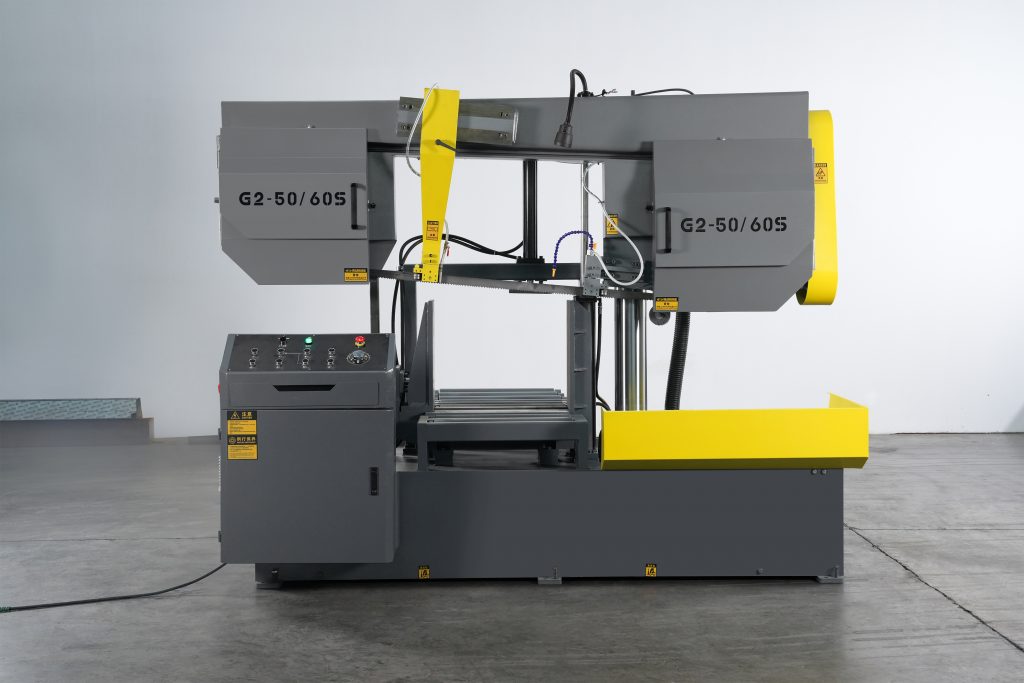

G2-50/60S Heavy-Duty Double Column Miter Band Saw Machine
Model: G2-50/60S
Quick Specifications
| Working Area: | 3200×2200×2600mm |
| Spindle Speed: | 15-80m/min |
| Accuracy: | ±0.1 |
| Tool Capacity: | 2 |
Product Video
Description
The G2-50/60S is a heavy-duty double-column horizontal miter band saw machine, specially engineered for high-efficiency, high-precision straight and angle (0-45°) cutting of metal bars, pipes, profiles, and solid steel blocks. It is widely used in steel processing, heavy machinery, automotive, and construction industries for batch and heavy-load cutting operations.
Core Technical Highlights:
Ultra-Rigid Frame: Built with a reinforced double-column cast iron frame for maximum rigidity and vibration suppression during heavy cutting.
Precision Miter Cutting: Features a flexible 0-45° angle adjustment mechanism, eliminating the need for secondary beveling processing.
Smart Hydraulic Operation: Equipped with a high-torque drive system, advanced hydraulic vise clamping, and automated feed control to maximize blade life. Fully CE/ISO 9001 certification, a 12-month global warranty, and full customization for voltage and cutting capacity, it meets the stringent standards of global metalworking industries.
Technical Specifications
| Parameter | Unit | G2-50/60S Standard Value |
|---|---|---|
| Max. Straight Cutting Capacity (Round) | mm | 605 |
| Max. Straight Cutting Capacity (Square) | mm | 605×605 |
| Max. 45° Miter Cutting Capacity (Round) | mm | 500 |
| Max. 45° Miter Cutting Capacity (Square) | mm | 500×500 |
| Miter Cutting Angle Range | ° | 0-45 |
| Band Saw Blade Size | mm | 6700×54×1.6 |
| Band Speed Range | m/min | 15-80 |
| Main Motor Power | kW | 7.5 |
| Hydraulic Pump Power | kW | 1.5 |
| Cutting Accuracy | mm | ±0.1 |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 3200×2200×2600 |
| Net Weight | kg | 8500 |
Features
Heavy-Duty Double Column Structure
Reinforced double-column cast iron frame provides exceptional rigidity, eliminating vibration during heavy-load cutting and ensuring long-term dimensional stability.
0-45° Miter Cutting Function
Precision miter cutting mechanism enables accurate angle cutting of workpieces, eliminating secondary processing and improving production efficiency.
High-Precision Hydraulic Clamping
Hydraulic vise clamping system firmly secures workpieces of various shapes, preventing slippage and ensuring consistent cutting accuracy for both straight and angle cuts.
Automatic Feed & Speed Control
Intelligent automatic feed system with adjustable cutting speed optimizes blade life and cutting efficiency, reducing manual operation intensity.
User-Friendly Control Panel
Centralized control panel with push-button operation, status indicators, and speed adjustment enables easy parameter setting and real-time monitoring of the cutting process.
Wide Material Compatibility
Compatible with carbon steel, stainless steel, aluminum, alloy, and various metal profiles, suitable for diverse industrial cutting applications.
Global Power Compatibility
Standard 380V 50Hz configuration, fully customizable voltage to fit European, American, Asian, and Middle Eastern power grid standards, ideal for worldwide export.
