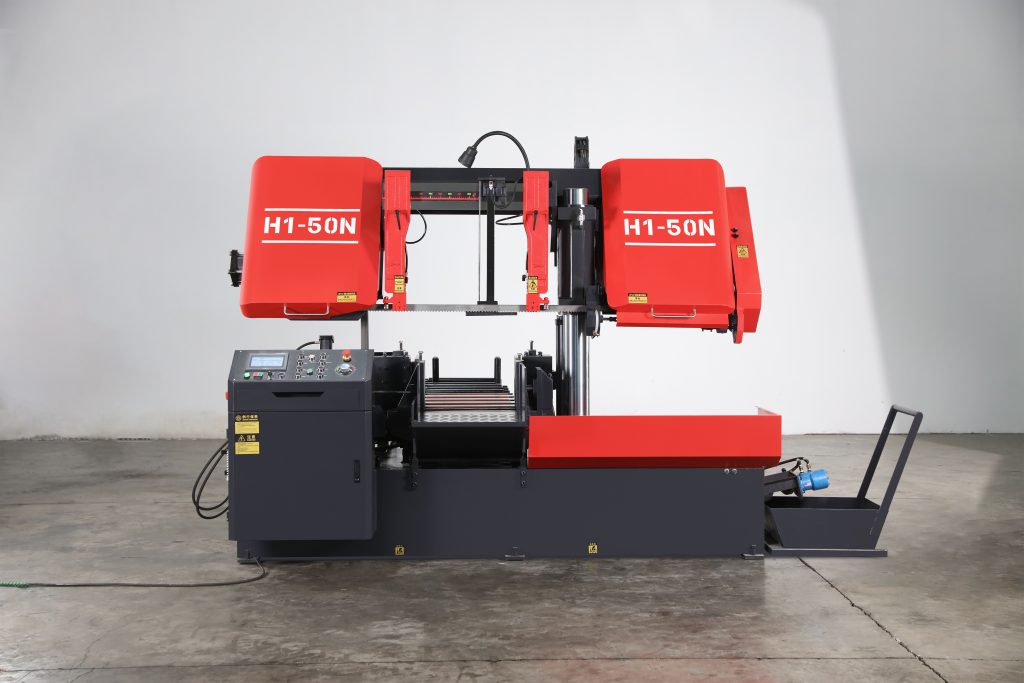

H1-50N CNC Double Column Band Saw Machine
Model: H1-50N
Quick Specifications
| Working Area: | 3000×2200×2400mm |
| Spindle Speed: | 15-80m/min |
| Accuracy: | ±0.1 |
| Tool Capacity: | 6 |
Product Video
Description
Technical Specifications
| Parameter | Unit | H1-50N Standard Value |
|---|---|---|
| Max. Cutting Capacity (Round) | mm | 500 |
| Max. Cutting Capacity (Square) | mm | 500×500 |
| Max. Cutting Capacity (Rectangular) | mm | 500×700 |
| Band Saw Blade Size | mm | 6100×54×1.6 |
| Band Speed Range | m/min | 15-80 |
| Main Motor Power | kW | 7.5 |
| Hydraulic Pump Power | kW | 1.5 |
| Cutting Accuracy | mm | ±0.1 |
| Control System | – | CNC Touch Screen Controller |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 3000×2200×2400 |
| Net Weight | kg | 7800 |
Features
- Heavy-Duty Double Column Structure
Reinforced double-column cast iron frame provides exceptional rigidity, eliminating vibration during heavy-load cutting and ensuring long-term dimensional stability.
- Full CNC Automatic Operation
Intuitive touchscreen CNC control system supports automatic feeding, cutting, and material handling, reducing manual labor and improving production efficiency for batch processing.
- High-Precision Hydraulic Clamping
Hydraulic vise clamping system firmly secures workpieces of various shapes, preventing slippage and ensuring consistent cutting accuracy.
- Automatic Chip Removal System
Integrated automatic chip removal device efficiently discharges cutting debris, keeping the work area clean and reducing maintenance frequency.
- User-Friendly CNC Control Panel
Centralized touchscreen control panel with real-time monitoring, program storage, and fault diagnosis functions enables easy parameter setting and operation.
- Wide Material Compatibility
Compatible with carbon steel, stainless steel, aluminum, alloy, and various metal profiles, suitable for diverse industrial cutting applications.
- Global Power Compatibility
Standard 380V 50Hz configuration, fully customizable voltage to fit European, American, Asian, and Middle Eastern power grid standards, ideal for worldwide export.
