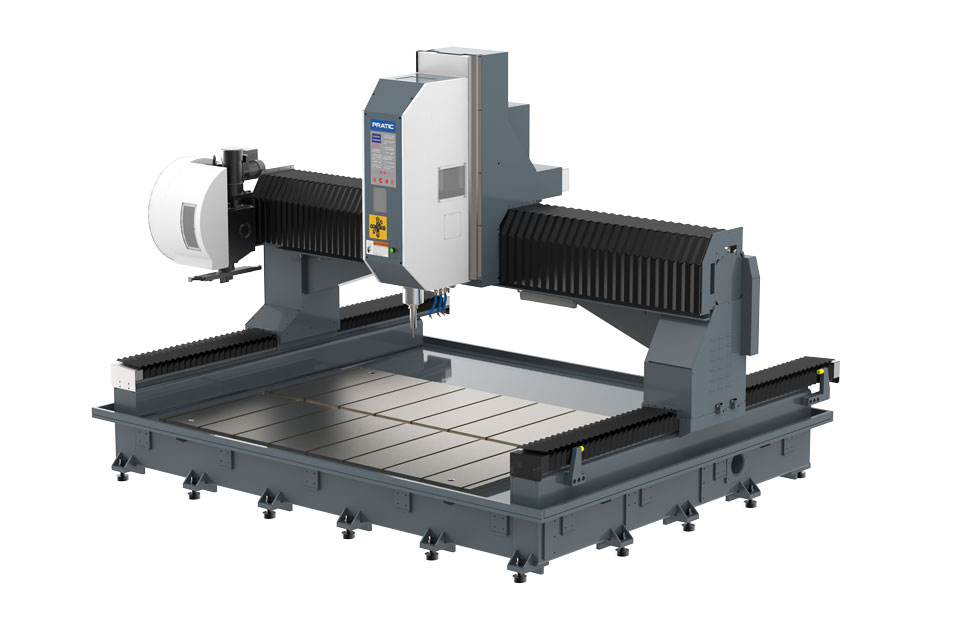

Heavy-Duty High-Speed CNC Gantry Profile Machining Center
Model: PHE-CNC4020S
Quick Specifications
| Working Area: | 8200 × 4500 × 3600mm |
| Spindle Speed: | 15000mm/min |
| Accuracy: | X: ±0.03; Y: ±0.03; Z: ±0.015 |
| Tool Capacity: | 24 |
Product Video
Description
Technical Specifications
| Parameter | Unit | PHE-CNC4020S Standard Specification |
|---|---|---|
| X/Y/Z Axis Travel | mm | 4000 / 2000 / 800 |
| Worktable Size (L×W) | mm | 4000 × 2000 |
| Max. Worktable Load | kg/m² | 1000 |
| Spindle Taper | – | BT40 / SK40 / CAT40 |
| Spindle Speed Range | rpm | 12000 |
| Spindle Power (S1/S6) | kW | FANUC: 11/18.5; SIEMENS: 9/21.2 |
| Rapid Traverse Speed (X/Y/Z) | m/min | 60 / 60 / 30 |
| Max. Cutting Feed Speed | mm/min | 15000 |
| Tool Magazine Capacity (Standard) | pcs | 24 |
| Control System | – | FANUC / SIEMENS |
| Positioning Accuracy | mm | X: ±0.03; Y: ±0.03; Z: ±0.015 |
| Repeatability | mm | ±0.01 (All Axes) |
| Net Machine Weight | kg | 18000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 8200 × 4500 × 3600 |
Features
✅ Oversized Workpiece Compatibility
4000×2000mm large worktable accommodates oversized commercial vehicle battery trays and large structural parts, meeting the processing needs of new energy heavy-duty vehicles.
✅ All-Cast Iron Ultra-Rigid Structure
High-grade stress-relieved cast iron for all key components provides superior vibration damping and rigidity, ensuring stable performance during continuous large material removal.
✅ Integrated Double-Column Design
One-piece double-column beam and monolithic ram shorten the spindle force arm, eliminating deflection and ensuring consistent accuracy across the entire work envelope.
✅ New Energy Commercial Vehicle Optimized
Specially designed for large commercial vehicle battery tray processing, supporting low-pressure casting, high-pressure die-casting, and profile-welded workpiece machining.
✅ High-Speed Efficient Machining
60m/min rapid traverse speed and 12000rpm high-speed spindle deliver 30% higher productivity than traditional gantry machines for large aluminum parts.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
