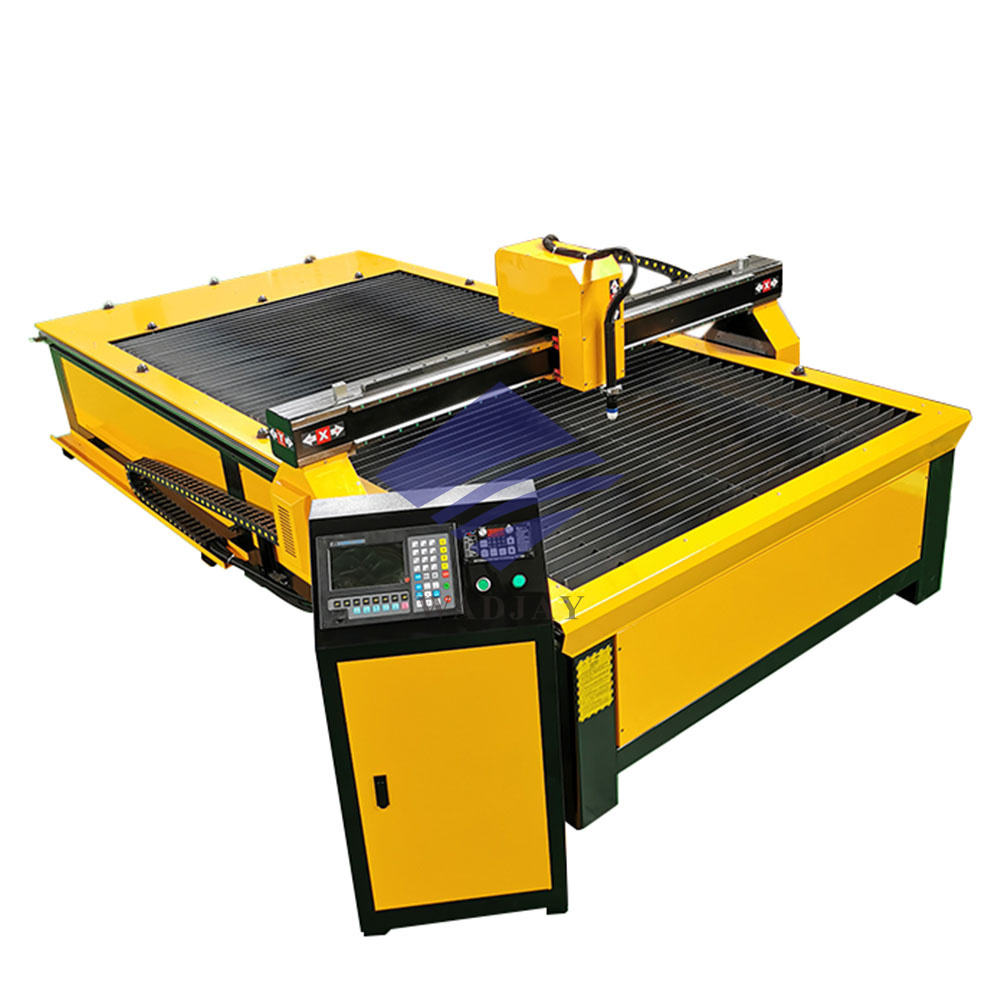

LXP-1530 CNC Plasma Cutting Machine
Model: LXP-1530
Quick Specifications
| Working Area: | 4500 × 2500 × 1800mm |
| Spindle Speed: | 0 - 15000mm/min |
| Accuracy: | ±0.05 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | LXP-1530 Standard Value |
|---|---|---|
| Working Table Size | mm | 1500 × 3000 |
| Max. Cutting Thickness (Carbon Steel) | mm | 0.5 – 30 |
| Max. Cutting Thickness (Stainless Steel) | mm | 0.5 – 20 |
| Max. Cutting Thickness (Aluminum) | mm | 0.5 – 18 |
| Cutting Speed Range | mm/min | 0 – 15000 |
| Positioning Accuracy | mm | ±0.1 |
| Repeat Positioning Accuracy | mm | ±0.05 |
| Plasma Power Source | kW | 160 (Optional 200/300) |
| Drive System | – | Servo Motor + Ball Screw |
| Net Weight | kg | 3200 (Industry standard for LXP-1530 plasma cutter) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 4500 × 2500 × 1800 |
Features
✅ Heavy-Duty Gantry Structure
Reinforced gantry and table design eliminate deflection during high-speed cutting, guaranteeing straight, precise cuts and long-term dimensional stability.
✅ Automatic Height Control (THC)
Real-time torch height adjustment ensures consistent cutting gap, preventing burn-through and ensuring clean cuts on uneven sheets.
✅ High-Power Plasma System
160A plasma power source delivers powerful cutting for thick metal sheets, with optional higher power for heavy-duty applications.
✅ User-Friendly CNC Programming
Intuitive industrial CNC controller with touchscreen interface supports DXF/G-code programming, nesting software, and one-key operation, making complex cutting easy.
✅ Integrated Fume Extraction Table
Built-in downdraft fume extraction system removes cutting fumes and slag, ensuring a clean, safe workshop environment.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, aluminum, copper, and other metal materials, suitable for diverse sheet metal cutting applications.
✅ Global Export Compatibility
Fully customizable working size, power, and voltage to fit international production needs, with comprehensive after-sales support for global customers.
