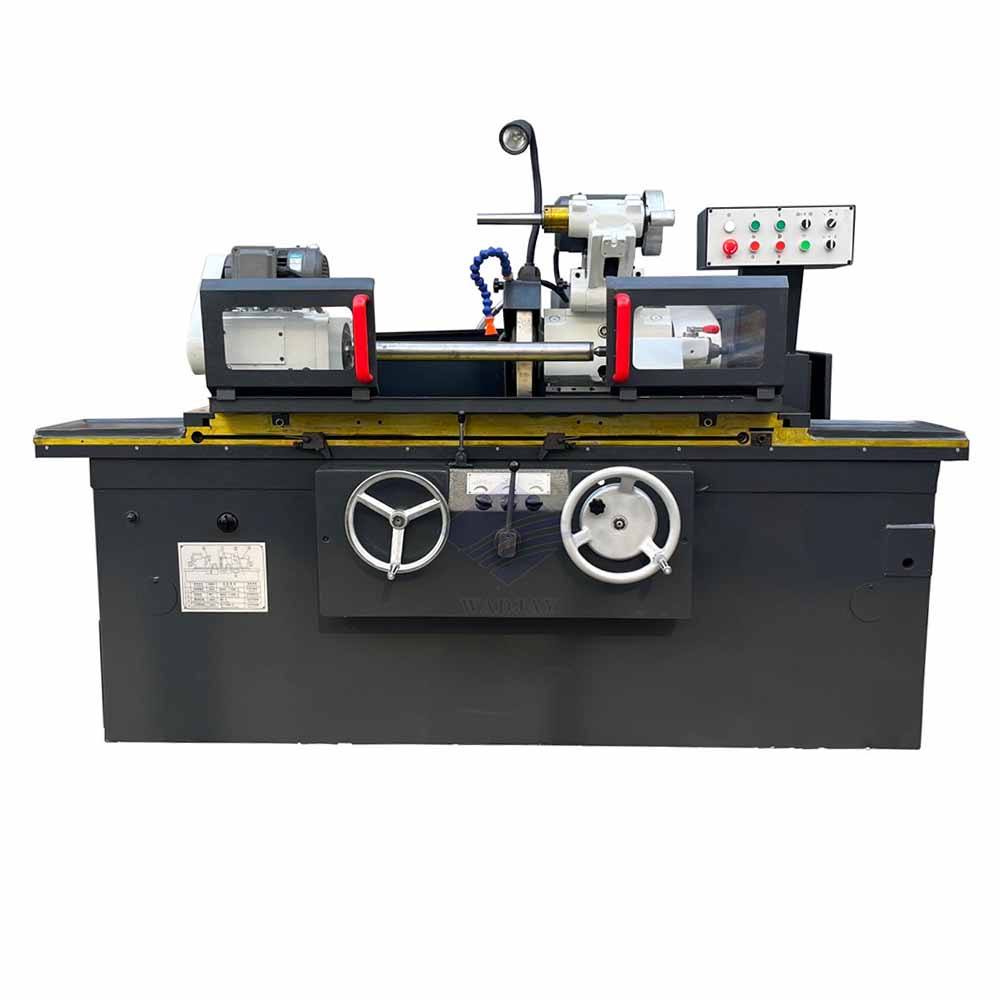

M2110 Internal Cylindrical Grinding Machine
Model: M2110
Quick Specifications
| Working Area: | 2200 × 1500 × 1800mm |
| Spindle Speed: | 3000 - 12000r/min |
| Accuracy: | 0.005 |
| Tool Capacity: | 6 |
Product Video
Description
Technical Specifications
| Parameter | Unit | M2110 Standard Value |
|---|---|---|
| Max. Internal Grinding Diameter | mm | 100 |
| Min. Internal Grinding Diameter | mm | 5 |
| Max. Grinding Depth | mm | 150 |
| Max. Workpiece Swing Over Bed | mm | 200 |
| Internal Spindle Speed Range | r/min | 3000 – 12000 |
| Grinding Wheel Size | mm | 50 × 20 × 10 |
| Spindle Motor Power | kW | 1.5 |
| Grinding Accuracy | mm | ±0.005 |
| Net Weight | kg | 2800 (Industry standard for M2110 internal grinder) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 2200 × 1500 × 1800 |
Features
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during high-speed internal grinding, guaranteeing long-term machining accuracy and stability.
✅ High-Speed Internal Spindle
High-precision, dynamically balanced internal spindle delivers ultra-smooth rotation, ensuring mirror-like surface finishes and tight bore tolerances.
✅ User-Friendly Manual Operation
Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.
✅ Integrated Cooling & Lubrication System
Built-in coolant tank and automatic lubrication system reduce tool wear, extend grinding wheel life, and ensure stable continuous operation.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, aluminum alloy, carbide, and other materials, suitable for diverse precision bore machining applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
