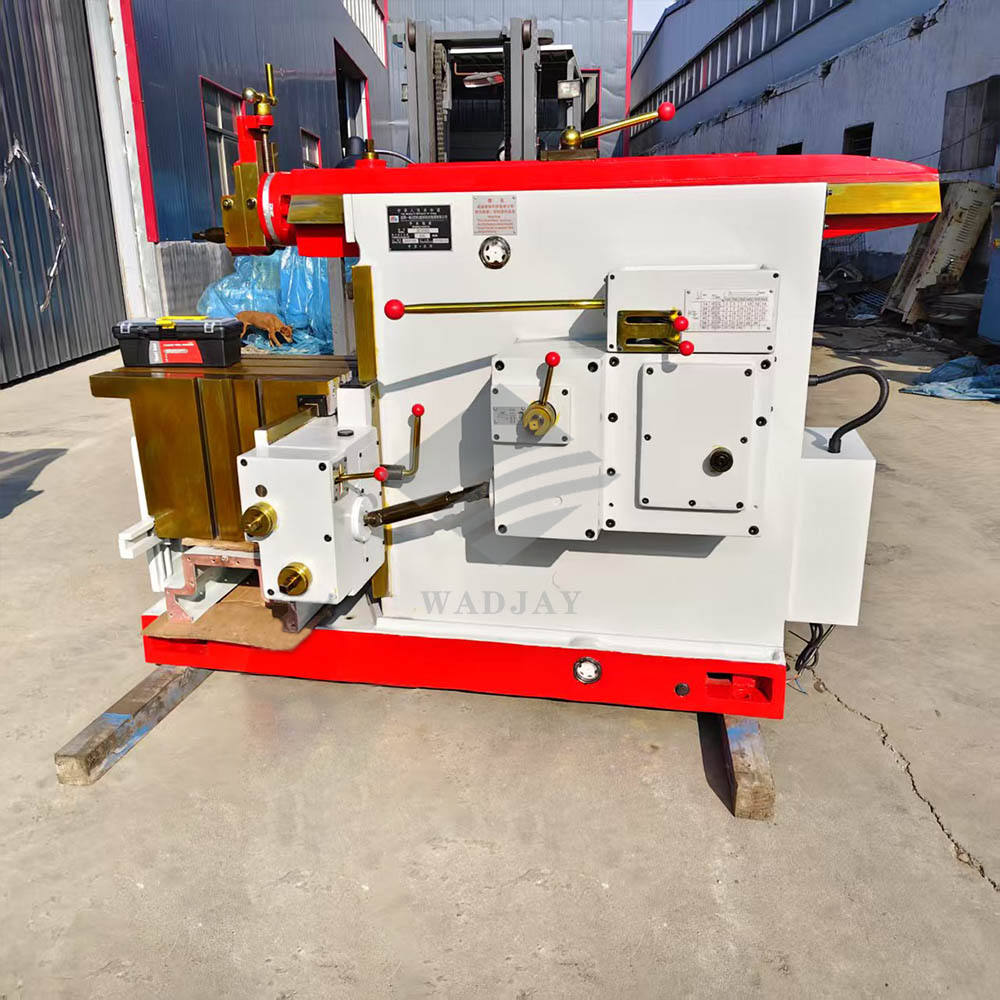

Mechanical Shaping Machine
Model: BC6063
Quick Specifications
| Working Area: | 2300 × 1200 × 1700mm |
| Spindle Speed: | 18 / 28 / 40 / 64 (4-Speed) |
| Accuracy: | ≤ 0.03/300 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | BC6063 Standard Specification |
|---|---|---|
| Max. Stroke Length | mm | 630 |
| Max. Workpiece Width | mm | 630 |
| Max. Workpiece Height | mm | 400 |
| Ram Speed Range | strokes/min | 18 / 28 / 40 / 64 (4-Speed) |
| Main Motor Power | kW | 4 |
| Table Longitudinal Travel | mm | 630 |
| Cross Travel | mm | 180 |
| Machining Accuracy | mm | ≤ 0.03/300 |
| Net Machine Weight | kg | 2100 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 2300 × 1200 × 1700 |
Features
✅ Versatile Machining Performance
Ideal for planing flat surfaces, keyways, T-slots, and complex profiles that are difficult to process with milling machines.
✅ Rigid & Stable Mechanical Structure
Thick cast iron bed and reinforced ram housing eliminate deflection during heavy cuts, ensuring superior surface finish and extending tool life.
✅ Adjustable Stroke & Speed
Multiple ram speed settings and adjustable stroke length accommodate different workpiece materials and cutting requirements.
✅ Simple & Reliable Operation
Intuitive manual controls and a straightforward operating principle make it easy to set up and run, reducing operator training time.
✅ Low Maintenance & Cost-Effective
Durable construction and readily available standard parts keep maintenance costs low, making it an economical solution for small workshops.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
