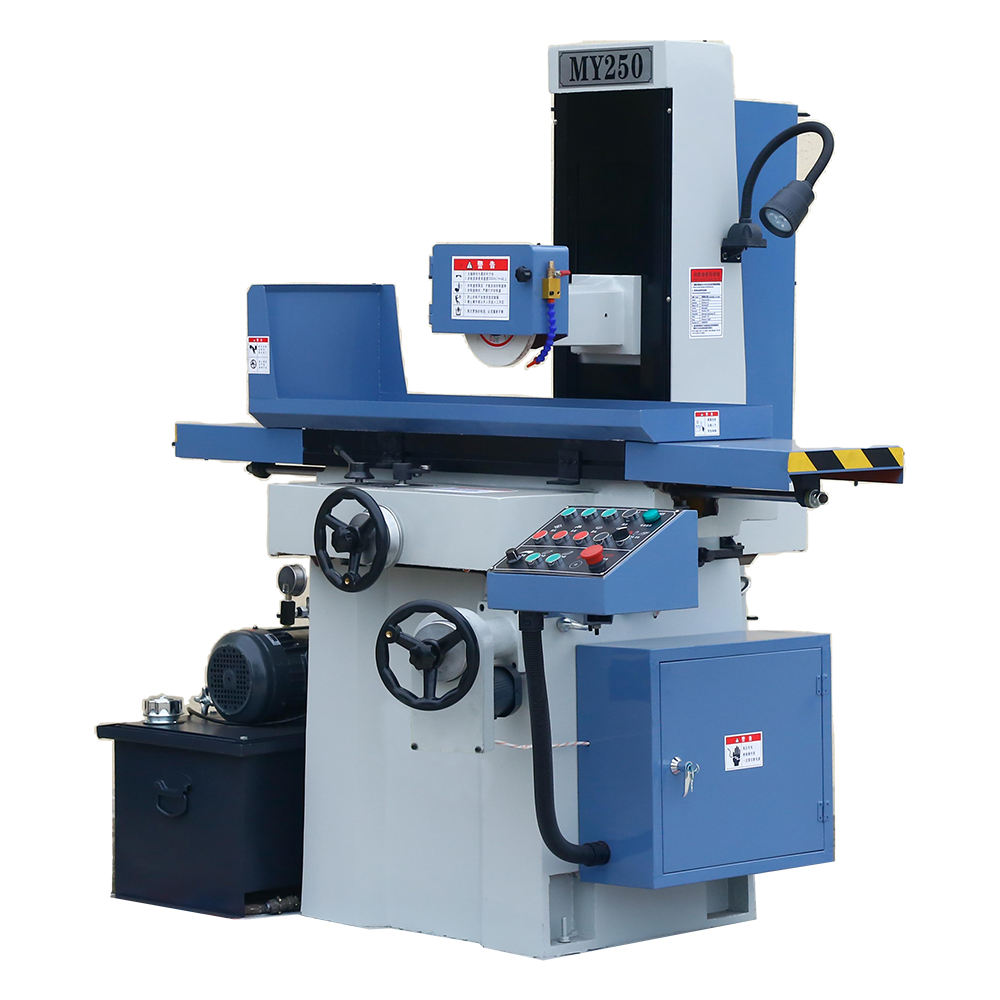

MY250 Hydraulic Surface Grinder
Model: MY250
Quick Specifications
| Working Area: | 2200 × 1500 × 2100mm |
| Spindle Speed: | 2800r/min |
| Accuracy: | 0.005 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | MY250 Standard Value |
|---|---|---|
| Table Size | mm | 500 × 250 |
| Max. Grinding Length | mm | 520 |
| Max. Grinding Width | mm | 250 |
| Max. Workpiece Height | mm | 400 |
| Spindle Speed | r/min | 2800 |
| Grinding Wheel Size | mm | 250 × 25 × 31.75 |
| Spindle Motor Power | kW | 3 |
| Hydraulic Motor Power | kW | 1.5 |
| Grinding Accuracy | mm | ±0.005 |
| Net Weight | kg | 2200 (Industry standard for MY250 hydraulic surface grinder) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 2200 × 1500 × 2100 |
Features
✅ Heavy-Duty Rigid Construction
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during grinding, guaranteeing long-term machining accuracy and stability.
✅ Hydraulic Automatic Traverse
Hydraulically driven table movement enables continuous, automatic grinding, drastically reducing operator fatigue and improving production efficiency.
✅ High-Precision Spindle Assembly
Precision-balanced spindle and high-quality bearings ensure smooth operation, delivering mirror-like surface finishes and tight dimensional tolerances.
✅ Integrated Cooling & Lubrication System
Built-in coolant tank and automatic lubrication system reduce tool wear, extend grinding wheel life, and ensure stable continuous operation.
✅ User-Friendly Control Panel
Ergonomic push-button operation and clear status indicators make the machine easy to operate, with minimal training required for operators.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, aluminum alloy, carbide, and other materials, suitable for diverse precision machining applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
