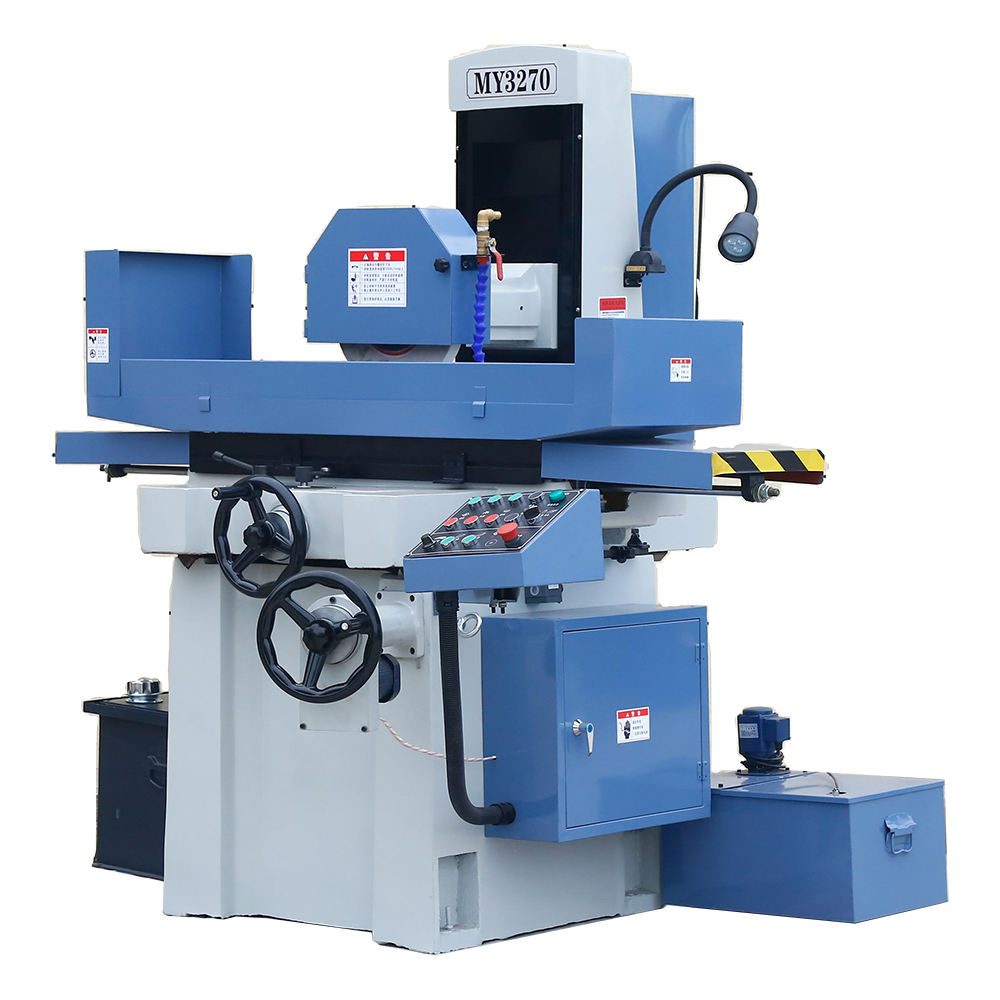

MY3270 Hydraulic Surface Grinder

Model: MY3270

Quick Specifications

Working Area:	2600 × 1800 × 2200mm
Spindle Speed:	2800r/min
Accuracy:	±0.002
Tool Capacity:	12

Product Video

Watch on YouTube for best quality

Description

The MY3270 is a heavy-duty hydraulic surface grinder, engineered for high-precision flat grinding, surface finishing, and precision sizing of large and medium-sized metal workpieces. It features a fully automatic hydraulic table traverse system combined with manual fine adjustment, making it ideal for mold manufacturing, tool and die shops, heavy machinery component processing, and general precision machining industries, perfect for both small-batch prototyping and mass production.

Built with a reinforced, stress-relieved cast iron frame and precision linear guideways, it delivers exceptional rigidity and vibration-free operation even under heavy cutting loads. The machine is equipped with a high-torque, precision-balanced spindle assembly, a robust hydraulic drive system, and an ergonomic control panel. Integrated with a large-capacity coolant system, automatic centralized lubrication, and magnetic chuck compatibility, it ensures consistent, high-quality surface finishes with minimal operator intervention. Backed by CE/ISO certification, a 12-month global warranty, and full customization for voltage and configuration, it meets the stringent standards of global metalworking industries.

Technical Specifications

Parameter	Unit	MY3270 Standard Value
Table Size	mm	700 × 320
Max. Grinding Length	mm	720
Max. Grinding Width	mm	320
Max. Workpiece Height	mm	450
Spindle Speed	r/min	2800
Grinding Wheel Size	mm	300 × 32 × 76.2
Spindle Motor Power	kW	4
Hydraulic Motor Power	kW	1.5
Grinding Accuracy	mm	±0.005
Net Weight	kg	3200 (Industry standard for MY3270 hydraulic surface grinder)
Standard Power Supply	–	3 Phase 380V, 50Hz
Customizable Voltage	–	3 Phase 220V/415V/440V, 50/60Hz
Overall Dimensions (L×W×H)	mm	2600 × 1800 × 2200

Features

✅ Heavy-Duty Industrial Construction

Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during heavy grinding, guaranteeing long-term dimensional stability and machining accuracy.

✅ Fully Automatic Hydraulic Traverse

Hydraulically driven table movement enables continuous, automatic grinding, drastically reducing operator fatigue and improving production efficiency for large workpieces.

✅ High-Precision Spindle Assembly

Precision-balanced spindle and high-precision angular contact bearings ensure smooth, stable operation, delivering mirror-like surface finishes and tight dimensional tolerances.

✅ Integrated Cooling & Lubrication System

Large-capacity coolant tank and automatic centralized lubrication system reduce tool wear, extend grinding wheel life, and ensure stable continuous operation.

✅ Ergonomic Control Design

User-friendly push-button control panel with clear status indicators and emergency stop, making operation simple and safe with minimal training required.

✅ Wide Material Compatibility

Processes carbon steel, stainless steel, aluminum alloy, carbide, and other engineering materials, suitable for diverse precision machining applications.

✅ Global Export Compatibility

Fully customizable voltage and configuration to fit international power standards, with comprehensive after-sales support for global customers.
