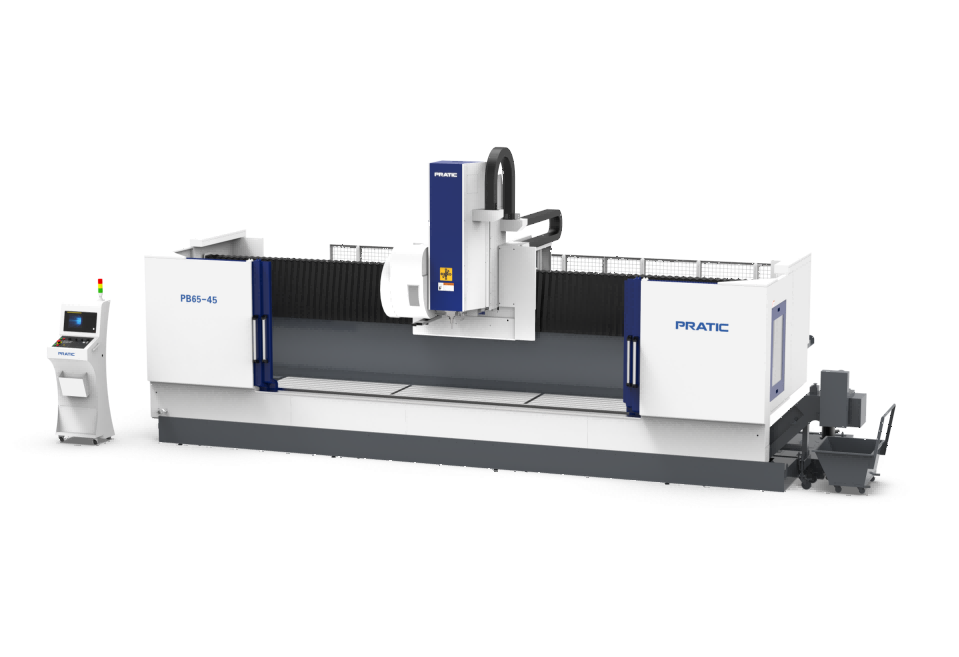

PB65-45 High-Speed 4-Axis CNC Profile Machining Center
Model: PB65-45
Quick Specifications
| Working Area: | 6200 × 2200 × 2300mm |
| Spindle Speed: | 12000 rpm |
| Accuracy: | ±0.03 / 1000 |
| Tool Capacity: | 24 |
Product Video
Description
The PB65-45 is a high-speed, heavy-duty 4.5-meter CNC profile machining center, purpose-built for high-efficiency drilling, tapping, milling, and cutting operations on medium-to-long aluminum and steel profiles. It is a core equipment in new energy vehicle manufacturing, rail transit, and general machinery industries, delivering exceptional speed, stability, and precision for profile-based structural parts.
Core Technical Highlights:
Maximum Structural Rigidity: Constructed with a high-rigidity cast iron bed and heavy-duty linear guideways, eliminating deflection during high-speed cutting to ensure long-term dimensional accuracy.
High-Speed & Multi-Function: Equipped with a high-speed spindle (up to 15,000 RPM optional) and a rapid automatic tool changer, significantly minimizing non-cutting time.
Safe Working Environment: Features a fully enclosed protective structure that maximizes operator safety while reducing maintenance requirements.
Global Export Ready: Fully CE / ISO Certified with customizable voltage for international manufacturing standards. Factory Direct.
Technical Specifications
| Parameter | Unit | PB65-45 Standard Specification |
|---|---|---|
| X Axis Travel | mm | 4500 |
| Y Axis Travel | mm | 650 |
| Z Axis Travel | mm | 400 |
| Spindle Speed Range | rpm | 12000 / 15000 (Optional) |
| Spindle Power (S1/S6) | kW | 7.5 / 11 |
| Rapid Traverse Speed (X/Y/Z) | m/min | 60 / 30 / 30 |
| Max. Cutting Feed Speed | mm/min | 15000 |
| Tool Magazine Capacity | pcs | 12 / 24 (Optional) |
| Control System | – | Siemens / Fanuc |
| Positioning Accuracy | mm | ±0.03 / 1000 |
| Repeatability | mm | ±0.015 |
| Net Machine Weight | kg | 6500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 6200 × 2200 × 2300 |
Features
✅ High-Speed Profile Machining
Up to 15000rpm high-speed spindle and 60m/min rapid traverse speed deliver 30% higher productivity than traditional machines for aluminum profile parts.
✅ 4.5-Meter Workpiece Compatibility
4500mm X-axis travel accommodates medium-length aluminum and steel profiles, meeting the processing needs of rail transit and new energy vehicle industries.
✅ Rigid & Stable Construction
High-rigidity cast iron bed and heavy-duty linear guideways ensure zero deflection during continuous high-speed cutting, ensuring consistent accuracy.
✅ Automatic Tool Change Option
24-position automatic tool magazine enables fast tool changes, supporting multi-process machining without manual intervention.
✅ Industry-Optimized Design
Specially designed for new energy vehicle and rail transit applications, ideal for processing structural profiles, battery trays, and frame components.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
