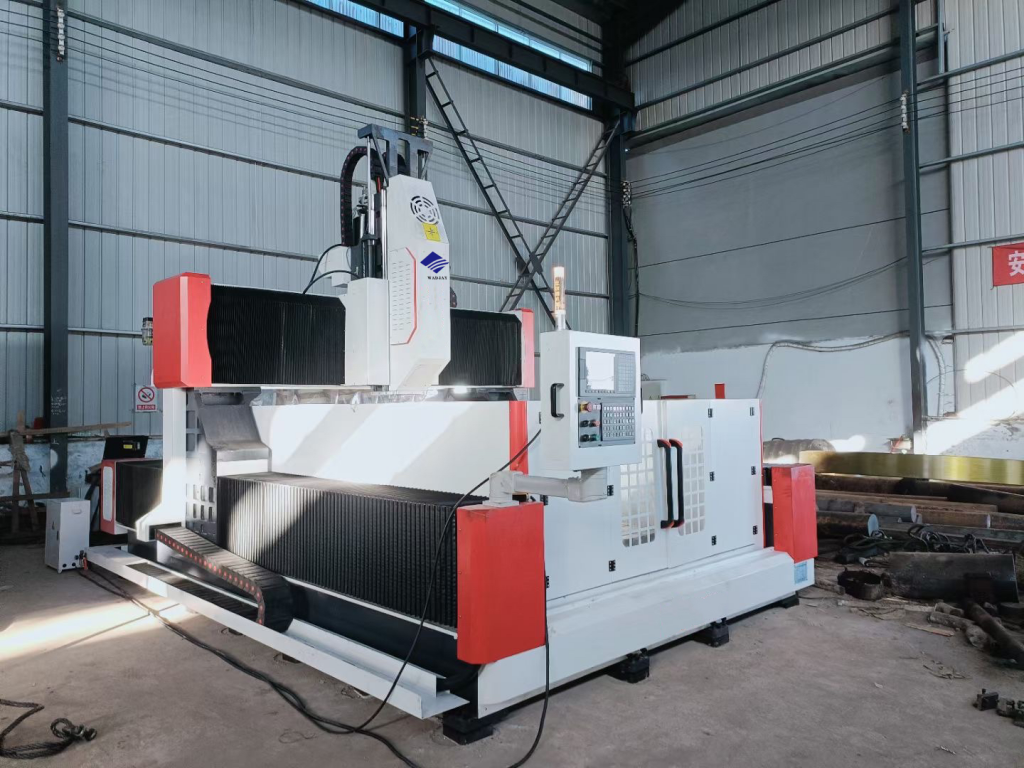

PD2013 CNC Gantry Drilling & Milling Machine
Model: PD2013
Quick Specifications
| Working Area: | 4000 × 2600 × 2800mm |
| Spindle Speed: | 10 - 3000r/min |
| Accuracy: | ±0.03/1000 |
| Tool Capacity: | 12 |
Product Video
Watch on YouTube for best quality
Description
The PD2013 is a high-precision, high-efficiency CNC gantry drilling and milling machine, purpose-built for large-scale hole-making, tapping, and light milling on flanges, heat exchanger tubesheets, and structural steel plates. Widely used in pressure vessel, petrochemical, and wind power industries, it delivers stable performance with fast cycle times.
Technical Specifications
| Parameter | Unit | PD2013 Standard Specification |
|---|---|---|
| Worktable Size (L×W) | mm | 2000 × 1300 |
| Max. Drilling Diameter | mm | 50 |
| Spindle Speed Range | r/min | 10 – 3000 |
| Spindle Power | kW | 11 |
| Rapid Traverse Speed | m/min | 15 |
| Control System | – | Siemens/Fanuc |
| Positioning Accuracy | mm | ±0.03/1000 |
| Net Machine Weight | kg | 11000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 4000 × 2600 × 2800 |
Features
✅ High-Speed Drilling & Tapping
Powerful spindle and high-speed servo drives enable fast hole-making, significantly boosting productivity for large workpieces.
✅ Rigid & Stable Construction
Cast iron frame and linear guide system ensure long-term stability and consistent accuracy.
✅ Large Workpiece Compatibility
2000×1300mm worktable accommodates oversized components like flanges and tubesheets.
✅ Precision CNC Control
Siemens/Fanuc system ensures accurate positioning and repeatability, meeting industrial-grade requirements.
✅ Low-Maintenance Operation
Centralized lubrication and chip removal system reduce downtime and maintenance costs.
✅ Global Export Ready
CE certified, with customizable voltage and complete export documentation.
