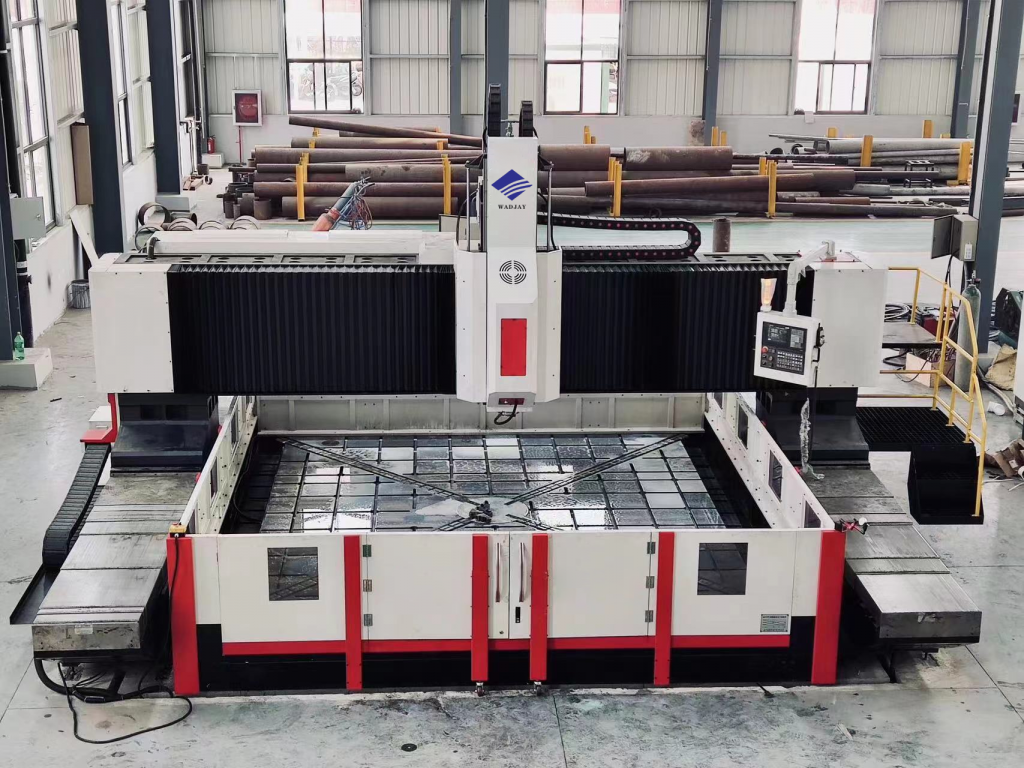

PD2020 CNC Gantry Drilling & Milling Machine

PD2020 CNC Gantry Drilling & Milling Machine

Model: PD2020

Quick Specifications

Working Area:	5500 × 4000 × 3200mm
Spindle Speed:	10 - 3000r/min
Accuracy:	±0.03 / 1000
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The CNC Gantry Drilling & Milling Machine is a heavy-duty, high-precision gantry-type CNC machine, purpose-built for high-efficiency drilling, tapping, and milling operations on large-scale workpieces such as flanges, heat exchanger tubesheets, and steel plates. It is a core automated equipment in pressure vessel manufacturing, petrochemical, wind power, and heavy machinery industries, delivering exceptional accuracy, speed, and stability for both small-batch prototyping and mass production.

Constructed with a stress-relieved, high-rigidity cast iron bed and heavy-duty welded gantry frame, the machine eliminates vibration and deflection during high-load cutting, ensuring long-term dimensional stability. Equipped with a professional industrial CNC system, automatic tool change (ATC), and a fully enclosed protective structure, it minimizes labor intensity and maintenance requirements, while meeting global safety and quality standards.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	PD2020 Standard Specification
Worktable Size (L×W)	mm	2000 × 2000
Max. Workpiece Weight	kg	10000
Max. Drilling Diameter	mm	50
Spindle Speed Range	r/min	10 – 3000
Spindle Power	kW	11
Control System	–	Siemens 808D / Fanuc 0i-MF
Positioning Accuracy	mm	±0.03 / 1000
Repeatability	mm	±0.015
Net Machine Weight	kg	18000
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Machine Dimensions (L×W×H)	mm	5500 × 4000 × 3200

Features

✅ High-Rigidity Heavy-Duty Construction

Stress-relieved cast iron bed and heavy-duty gantry frame ensure zero deflection under heavy cutting loads, delivering superior surface finish and long-term dimensional stability for large workpieces.

✅ High-Efficiency Multi-Process Machining

Powerful 11kW spindle and high-speed servo drives enable fast drilling, tapping, and milling operations, significantly boosting production efficiency for flanges and tubesheets.

✅ Large Workpiece Compatibility

2000×2000mm worktable with 10-ton load capacity accommodates oversized components, making it ideal for pressure vessel and wind power equipment manufacturing.

✅ Precision CNC Control

High-precision linear guideways and ball screws, combined with a Siemens/Fanuc CNC system, ensure accurate positioning and repeatability, meeting high-tolerance industrial requirements.

✅ Automatic Tool Change (ATC) Option

Optional 8-position ATC system reduces tool change time, enabling continuous multi-process machining without manual intervention.

✅ Complete Safety & Protection System

Fully enclosed protective hood, emergency stop, overload protection, and chip removal system ensure operator safety and a clean workshop environment.

✅ Global Export Ready

Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping and overseas project deployment.
