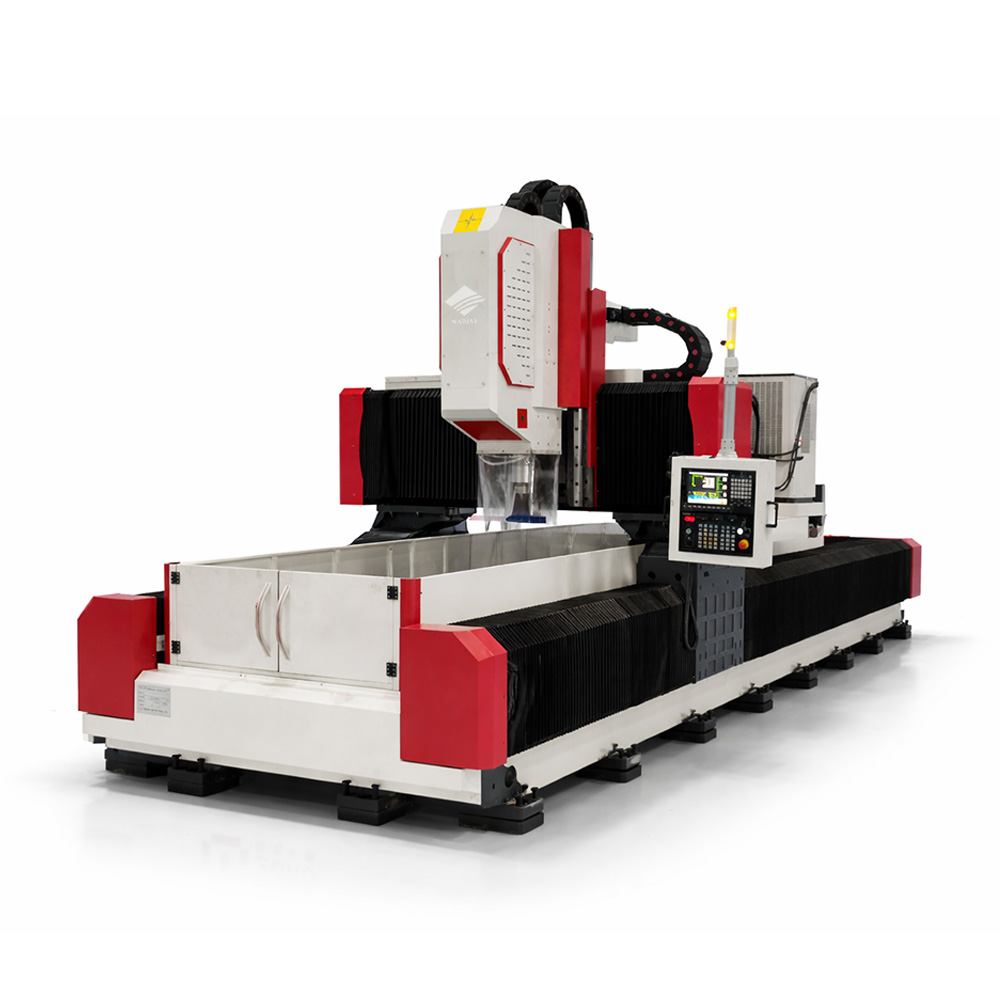

PD3010 High-Speed Moving-Column CNC Gantry Drilling Machine
Model: PD3010
Quick Specifications
| Working Area: | 4500 × 2000 × 2300mm |
| Spindle Speed: | 100 - 6000r/min |
| Accuracy: | ±0.02 / 1000 |
| Tool Capacity: | 24 |
Product Video
Description
Technical Specifications
| Parameter | Unit | PD3010 Standard Specification |
|---|---|---|
| Worktable Size (L×W) | mm | 3000 × 1000 |
| Max. Workpiece Weight | kg | 5000 |
| Max. Drilling Diameter | mm | 40 |
| Spindle Speed Range | r/min | 100 – 6000 |
| Spindle Power | kW | 7.5 |
| Rapid Traverse Speed | m/min | 20 |
| Control System | – | Siemens/Fanuc |
| Positioning Accuracy | mm | ±0.02 / 1000 |
| Repeatability | mm | ±0.015 |
| Net Machine Weight | kg | 9500 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 4500 × 2000 × 2300 |
Features
✅ **Innovative Moving-Column Design
The moving-column structure allows processing of long workpieces without moving the workpiece itself, significantly improving efficiency and safety for heavy and long components.
✅ **High-Speed Linear Guide System
High-precision linear guideways and ball screws deliver fast rapid traverse speeds up to 20 m/min, boosting productivity for high-volume drilling applications.
✅ **Compact & Space-Efficient Layout
Provides a large 3-meter longitudinal travel within a small footprint, making it ideal for workshops with limited space.
✅ **Reliable & Low-Maintenance Operation
Automatic centralized lubrication and a robust chip removal system reduce downtime and maintenance costs, ensuring long-term stable performance.
✅ **Precision CNC Control
Equipped with a Siemens/Fanuc system, the machine supports G-code programming and custom drilling cycles, making it easy to operate for complex patterns.
✅ **Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping and overseas project deployment.
