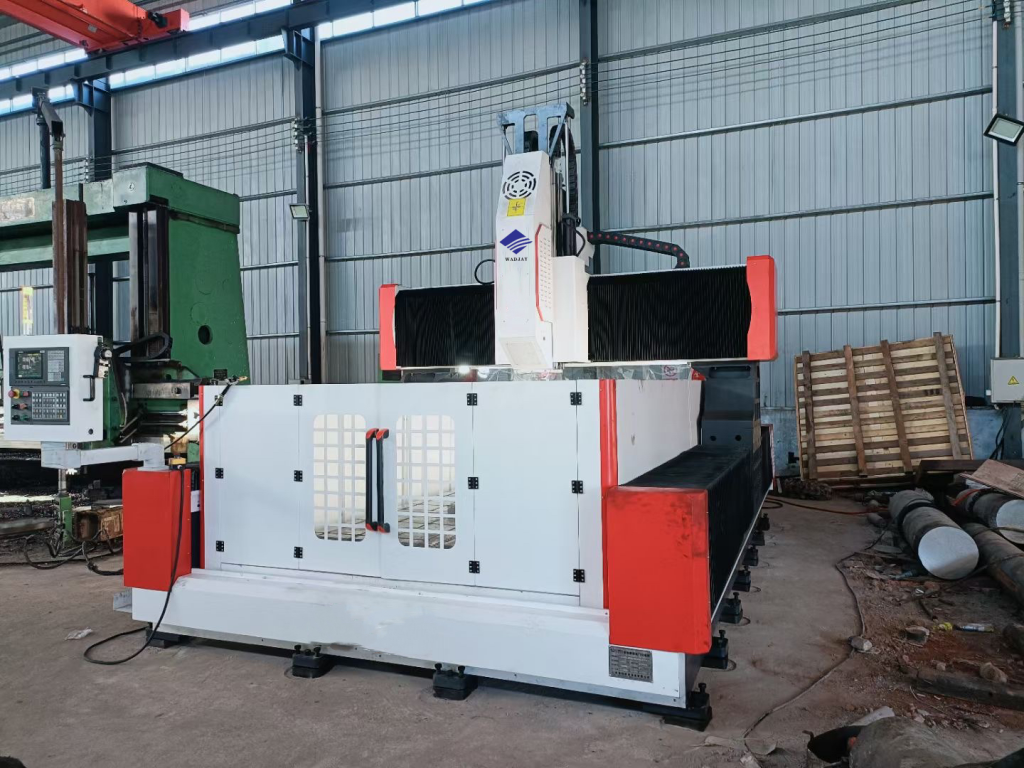

PD3016 CNC Gantry Drilling & Milling Machine

PD3016 CNC Gantry Drilling & Milling Machine

Model: PD3016

Quick Specifications

Working Area:	5000 × 3200 × 3000mm
Spindle Speed:	10 - 2500r/min
Accuracy:	±0.03 / 1000
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The PD3016 is a heavy-duty, high-precision CNC gantry drilling and milling machine, purpose-built for large-scale hole-making, tapping, and light milling operations on oversized workpieces such as large flanges, heat exchanger tubesheets, and structural steel plates. It is a core automated equipment in pressure vessel manufacturing, petrochemical, wind power, and heavy machinery industries, delivering exceptional stability, accuracy, and productivity for both small-batch prototyping and high-volume mass production.

Constructed with a stress-relieved, high-rigidity cast iron bed and heavy-duty linear guide system, the machine eliminates vibration and deflection during high-load cutting, ensuring long-term dimensional stability. Equipped with a professional industrial CNC system, automatic chip removal, and a fully enclosed splash guard, it minimizes labor intensity and maintenance requirements, while meeting global safety and quality standards.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	PD3016 Standard Specification
Worktable Size (L×W)	mm	3000 × 1600
Max. Workpiece Weight	kg	10000
Max. Drilling Diameter	mm	60
Spindle Speed Range	r/min	10 – 2500
Spindle Power	kW	15
Rapid Traverse Speed	m/min	12
Control System	–	Siemens/Fanuc
Positioning Accuracy	mm	±0.03 / 1000
Repeatability	mm	±0.015
Net Machine Weight	kg	16000
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Machine Dimensions (L×W×H)	mm	5000 × 3200 × 3000

Features

✅ Heavy-Duty Drilling & Tapping Performance

Powerful 15kW spindle and heavy-duty servo drives enable stable hole-making and tapping operations on thick steel plates, making it ideal for large pressure vessel components.

✅ Ultra-Rigid Construction

Stress-relieved cast iron bed and reinforced gantry frame ensure zero deflection under maximum cutting loads, delivering superior surface finish and long-term dimensional stability.

✅ Large Workpiece Compatibility

3000×1600mm worktable with 10-ton load capacity accommodates oversized components, meeting the processing needs of wind power and heavy machinery industries.

✅ Precision CNC Control

High-precision linear guides and ball screws, combined with a Siemens/Fanuc CNC system, ensure accurate positioning and repeatability, meeting high-tolerance industrial requirements.

✅ Low-Maintenance Operation

Automatic centralized lubrication and chip removal system reduce downtime and maintenance costs, ensuring continuous, stable production.

✅ Global Export Ready

Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping and overseas project deployment.
