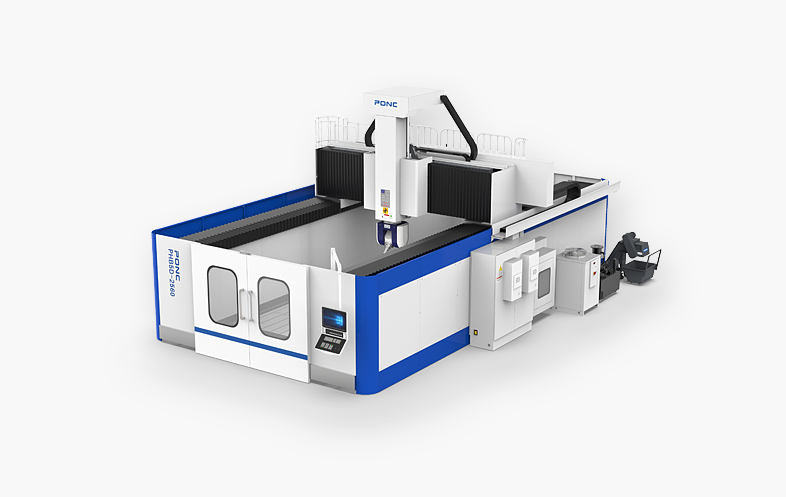

PHB5D-2540/60/80 Bridge-Type 5-Axis CNC Gantry Machining Center
Model: PHB5D
Quick Specifications
| Working Area: | 13500×5500×5200mm |
| Spindle Speed: | 6000 / 18000rpm |
| Accuracy: | ±0.012 / ±0.01 / ±0.008 |
| Tool Capacity: | 24 |
Product Video
Description
The PHB5D-2540/60/80 is an ultra-large, high-precision bridge-type 5-axis simultaneous CNC gantry machining center, purpose-built for one-setup machining of oversized complex curved surfaces, large molds, and structural parts. It is a core high-end equipment in aerospace, automotive mold, new energy, and heavy machinery industries, capable of completing multi-sided and complex surface machining in a single clamping.
Constructed with a one-piece ultra-rigid cast iron bed and reinforced bridge frame, the machine eliminates deflection during high-load cutting, ensuring long-term dimensional stability. Equipped with a high-torque 5-axis universal head, advanced CNC system, and fully enclosed protective structure, it delivers excellent surface finish and accuracy for large complex parts. CE/ISO Certified, Factory Direct.
Technical Specifications
| Parameter | Unit | PHB5D-2540/60/80 Standard Specification |
|---|---|---|
| Worktable Size (L×W) | mm | 2500 × 4000 / 6000 / 8000 |
| Spindle Speed (Rated/Max) | rpm | 6000 / 18000 |
| Cutting Feed Speed | m/min | 15 / 15 / 15 |
| Repeatability | mm | ±0.012 / ±0.01 / ±0.008 |
| Spindle Taper | – | HSK-A100 / BT50 |
| Spindle Power (S1/S6) | kW | 37 / 45 |
| Control System | – | Siemens 840D / Fanuc 31i-B5 |
| Net Machine Weight | kg | 45000 / 60000 / 75000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 9500×5500×5200 / 11500×5500×5200 / 13500×5500×5200 |
Features
✅ Ultra-Large Workpiece Compatibility
2500×4000/6000/8000mm large worktable accommodates oversized aerospace structural parts and large molds, meeting the processing needs of heavy industry.
✅ 5-Axis Simultaneous Machining
One-setup machining of five sides and complex curved surfaces, eliminating multiple clamping errors and reducing production cycle time by 60%.
✅ High-Speed & High-Precision Performance
Up to 18000rpm high-speed spindle and ±0.008mm repeatability deliver excellent surface finish for precision molds and aerospace parts.
✅ Ultra-Rigid Bridge-Type Structure
One-piece cast iron bed and reinforced bridge frame ensure zero deflection under heavy cutting loads, ensuring long-term dimensional accuracy.
✅ Fully Enclosed Safety Protection
Complete enclosed cabin with safety interlock prevents chip splash and ensures operator safety, creating a clean working environment.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
