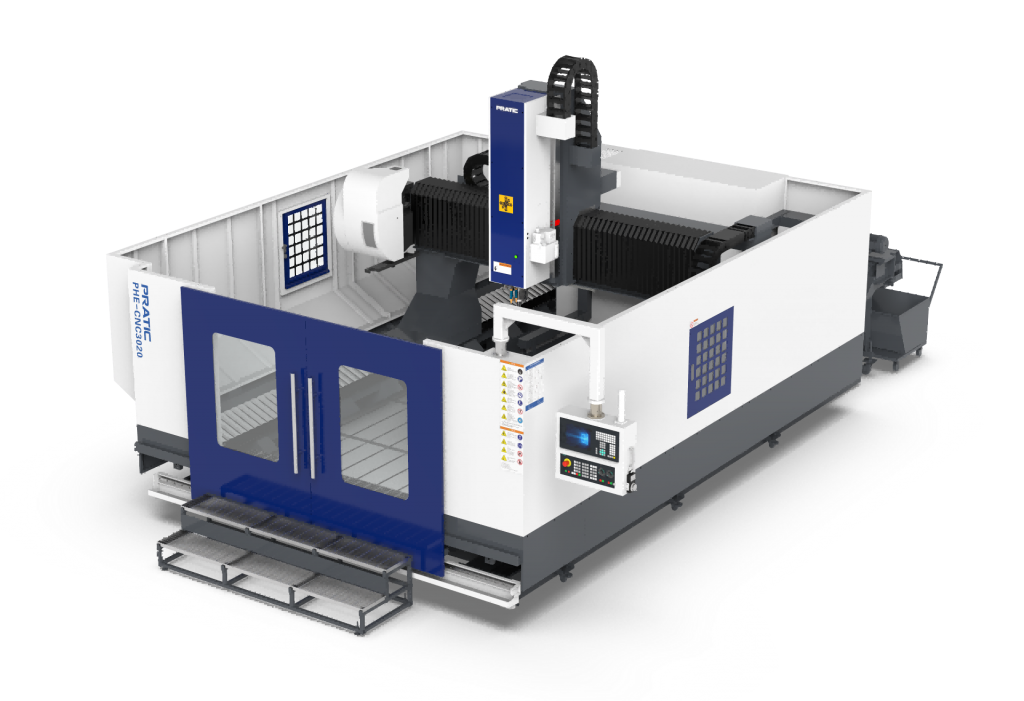

PHE3020 Fully Enclosed CNC Gantry Machining Center

PHE3020 Fully Enclosed CNC Gantry Machining Center

Model: PHE3020

Quick Specifications

Working Area:	7300 × 4500 × 3600mm
Spindle Speed:	15000mm/min
Accuracy:	X: ±0.03; Y: ±0.03; Z: ±0.015
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The PHE3020 is a high-performance, high-speed medium gantry profile machining center, purpose-built for large material removal machining of aluminum, copper, and non-metallic materials. It is a core equipment in new energy vehicle manufacturing, rail transit, and general machinery industries, especially optimized for processing low-pressure casting, high-pressure die-casting, and profile-welded battery trays.

All key structures (bed, worktable, column, ram, head) adopt stress-relieved cast iron construction, delivering exceptional rigidity and vibration resistance. The integrated column-beam and monolithic ram design shortens the force arm from the spindle to the guide rail, ensuring stable high-speed cutting and long-term dimensional accuracy.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	PHE3020 Standard Specification
X/Y/Z Axis Travel	mm	3000 / 2000 / 800
Worktable Size (L×W)	mm	3000 × 2000
Max. Worktable Load	kg/m²	1000
Spindle Taper	–	BT40 / SK40 / CAT40
Spindle Speed Range	rpm	12000
Spindle Power (S1/S6)	kW	FANUC: 11/18.5; SIEMENS: 9/21.2
Rapid Traverse Speed (X/Y/Z)	m/min	60 / 60 / 30
Max. Cutting Feed Speed	mm/min	15000
Tool Magazine Capacity (Optional)	pcs	24
Control System	–	FANUC / SIEMENS
Positioning Accuracy	mm	X: ±0.03; Y: ±0.03; Z: ±0.015
Repeatability	mm	±0.01 (All Axes)
Net Machine Weight	kg	15000
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Machine Dimensions (L×W×H)	mm	7300 × 4500 × 3600

Features

✅ All-Cast Iron Ultra-Rigid Structure

Bed, worktable, column, and head are all made of stress-relieved cast iron, providing superior vibration damping and rigidity for high-speed heavy cutting.

✅ Integrated High-Strength Design

One-piece column-beam and monolithic ram shorten the spindle force arm, ensuring stable performance during continuous large material removal.

✅ New Energy Industry Optimized

Specially designed for EV battery tray processing, supporting low-pressure casting, high-pressure die-casting, and profile-welded workpiece machining.

✅ High-Speed Efficient Machining

60m/min rapid traverse speed and 12000rpm high-speed spindle deliver 30% higher productivity than traditional gantry machines for aluminum parts.

✅ Fully Enclosed Safety Protection

Complete enclosed cabin with safety interlock prevents chip splash and ensures operator safety, creating a clean working environment.

✅ Global Export Ready

Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
