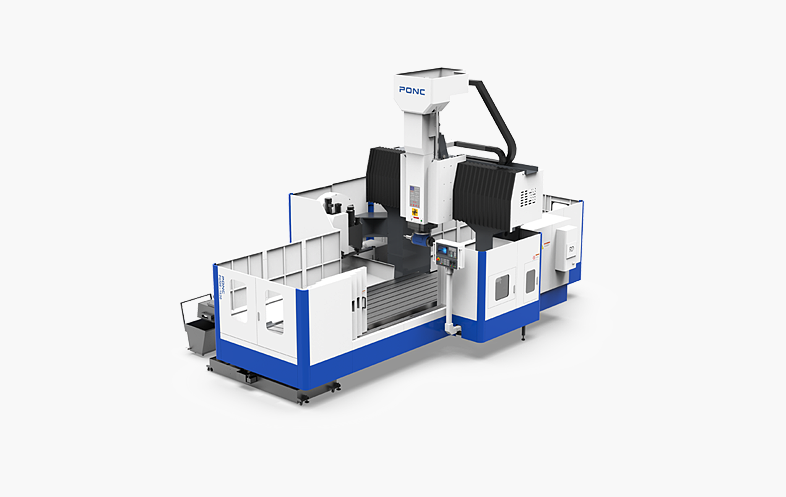

PHG3020 5-Axis CNC Gantry Machining Center
Model: PHG3020
Quick Specifications
| Working Area: | 6800 × 4800 × 4500mm |
| Spindle Speed: | 40 / 40 / 30m/min |
| Accuracy: | ±0.01 / 1000 |
| Tool Capacity: | 24 |
Product Video
Description
Technical Specifications
| Parameter | Unit | PHG3020 Standard Specification |
|---|---|---|
| X/Y/Z Axis Travel | mm | 3000 / 2000 / 800 |
| A/C Axis Swing Range | ° | A: ±110; C: ±360 |
| Worktable Size (L×W) | mm | 3000 × 2000 |
| Max. Workpiece Weight | kg | 8000 |
| Spindle Taper | – | BT50 |
| Spindle Speed Range | rpm | 50 – 12000 |
| Spindle Power (S1/S6) | kW | 18.5/30 |
| Tool Magazine Capacity | pcs | 32 |
| Rapid Traverse Speed (X/Y/Z) | m/min | 40 / 40 / 30 |
| Control System | – | Siemens 840D / Fanuc 31i-B |
| Positioning Accuracy | mm | ±0.01 / 1000 |
| Repeatability | mm | ±0.005 |
| Net Machine Weight | kg | 28000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
| Overall Machine Dimensions (L×W×H) | mm | 6800 × 4800 × 4500 |
Features
One-setup machining of five sides and complex curved surfaces, eliminating multiple clamping errors and reducing production cycle time by 60%.
✅ High-Torque 5-Axis Swing Head
Integrated high-rigidity swing head delivers stable heavy cutting performance for steel, cast iron, and alloy materials.
✅ Ultra-Rigid Cast Iron Structure
One-piece stress-relieved cast iron bed and gantry frame ensure zero deflection during high-load cutting, ensuring long-term dimensional accuracy.
✅ High-Precision Machining
High-precision linear guideways and ball screws, combined with advanced CNC system, deliver excellent surface finish for precision molds and aerospace parts.
✅ Fully Automated Operation
Integrated automatic tool changer, chip conveyor, and coolant system support 24/7 continuous production, minimizing labor intensity.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
