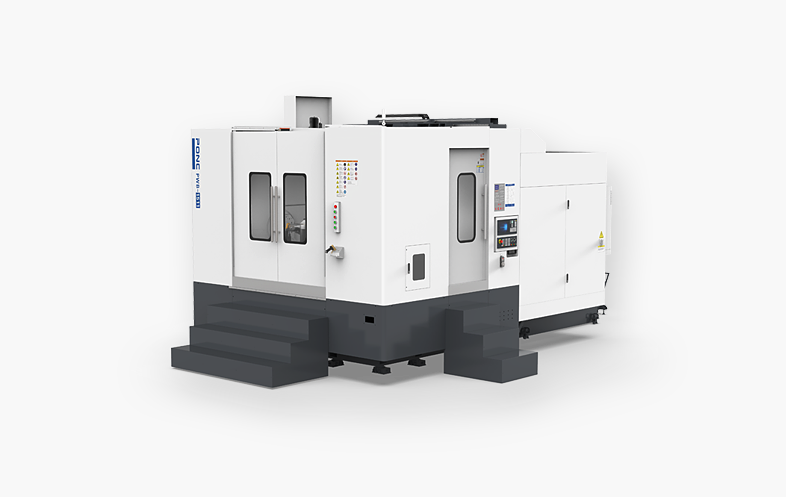

PWB-1511 Horizontal CNC Machining Center
Model: PWB-1511
Quick Specifications
| Working Area: | 1500X1400X600mm |
| Spindle Speed: | 15 / 15 / 15m/min |
| Accuracy: | ±0.01 |
| Tool Capacity: | 24 |
Product Video
Description
Technical Specifications
| Parameter | Unit | PWB-1511 Standard Specification |
|---|---|---|
| Spindle Speed | rpm | 10000 |
| Cutting Feed Speed (X/Y/Z) | m/min | 15 / 15 / 15 |
| Repeatability | mm | ±0.01 / ±0.008 / ±0.007 |
| Spindle Taper | – | BT40 |
| Spindle Power (S1/S6) | kW | 11 / 15 |
| Tool Magazine Capacity | pcs | 40 / 60 (Optional) |
| Control System | – | Siemens 840D / Fanuc 0i-MF |
| Net Machine Weight | kg | 16000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
Features
✅ High-Speed & High-Precision Performance
10000rpm high-speed spindle and ±0.007mm repeatability deliver excellent surface finish and dimensional accuracy for automotive castings.
✅ Optimized for Automotive Components
Specially designed for processing aluminum die-castings and iron castings such as steering knuckles, subframes, and multi-cavity parts, meeting the high-volume demand of the automotive industry.
✅ High-Efficiency Mass Production
15m/min cutting feed speed and automatic tool changer enable fast cycle times, significantly boosting productivity for high-volume production lines.
✅ Rigid & Stable Construction
High-rigidity cast iron bed and precision linear guideways ensure long-term stability and low vibration during continuous high-speed cutting operations.
✅ Low-Maintenance Operation
Automatic chip removal and centralized lubrication system reduce downtime and maintenance costs, ensuring 24/7 continuous production.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
