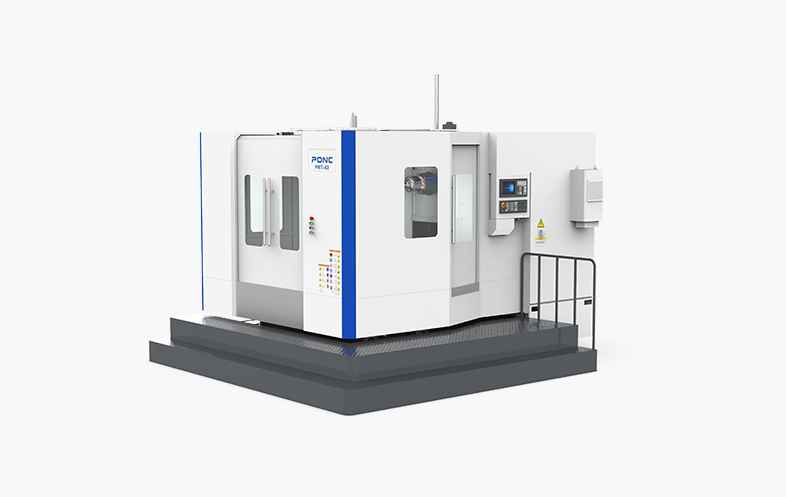

PWT Series High-Precision Horizontal CNC Machining Center
Model: PWT
Quick Specifications
| Working Area: | 1100X800X900mm |
| Spindle Speed: | 15 / 15 / 15m/min |
| Accuracy: | Siemens 840D / Fanuc 0i-MF |
| Tool Capacity: | 24 |
Product Video
Description
The PWT Series is a high-precision horizontal CNC machining center (HMC), purpose-built for the mass production and high-efficiency machining of box-type components, gearbox housings, turbine blades, and complex multi-sided structural parts. It is widely used in engineering machinery, automotive transmission, and power equipment industries.
Core Technical Highlights:
Maximum Multi-Sided Efficiency: Enables complete milling, boring, drilling, and tapping of multi-sided parts in a single setup, drastically reducing cycle times.
Superior Rigidity: Built with a heavy-duty stress-relieved cast iron bed and a high-torque spindle assembly to ensure stable performance during heavy cutting.
High-Speed Precision: Engineered for 24/7 continuous production with advanced CNC control, ensuring high repeatability and a long service life.CE/ISO Certified, Factory Direct.
Technical Specifications
| Parameter | Unit | PWT Series Standard Specification |
|---|---|---|
| Spindle Speed | rpm | 6000 |
| Cutting Feed Speed (X/Y/Z) | m/min | 15 / 15 / 15 |
| Repeatability | mm | ±0.008 |
| Spindle Taper | – | BT50 |
| Tool Magazine Capacity | pcs | 40 / 60 / 80 (Optional) |
| Control System | – | Siemens 840D / Fanuc 0i-MF |
| Typical Workpiece Size | mm | 500×500 / 630×630 / 800×800 |
| Net Machine Weight | kg | 18000 / 22000 / 28000 |
| Power Supply | – | 3 Phase 380V, 50Hz (Customizable) |
Features
✅ Multi-Sided Machining in One Setup
Horizontal spindle + rotary table enables four-sided machining in a single clamping, eliminating re-fixturing errors and cutting cycle time by half.
✅ High Precision & Repeatability
±0.008mm repeatability ensures consistent quality for high-volume production of precision gearboxes and turbine parts.
✅ Reliable Mass Production Performance
High-torque spindle and rigid structure handle heavy cutting loads, making it ideal for 24/7 operation in automotive and power equipment industries.
✅ Versatile for Complex Parts
Suitable for engineering machinery components, gearbox housings, and turbine parts, covering a wide range of applications.
✅ Low-Maintenance Operation
Robust construction and standardized components reduce downtime and maintenance costs, ensuring long-term stable performance.
✅ Global Export Ready
Fully CE-certified with customizable voltage configurations and complete export documentation, ready for international shipping.
