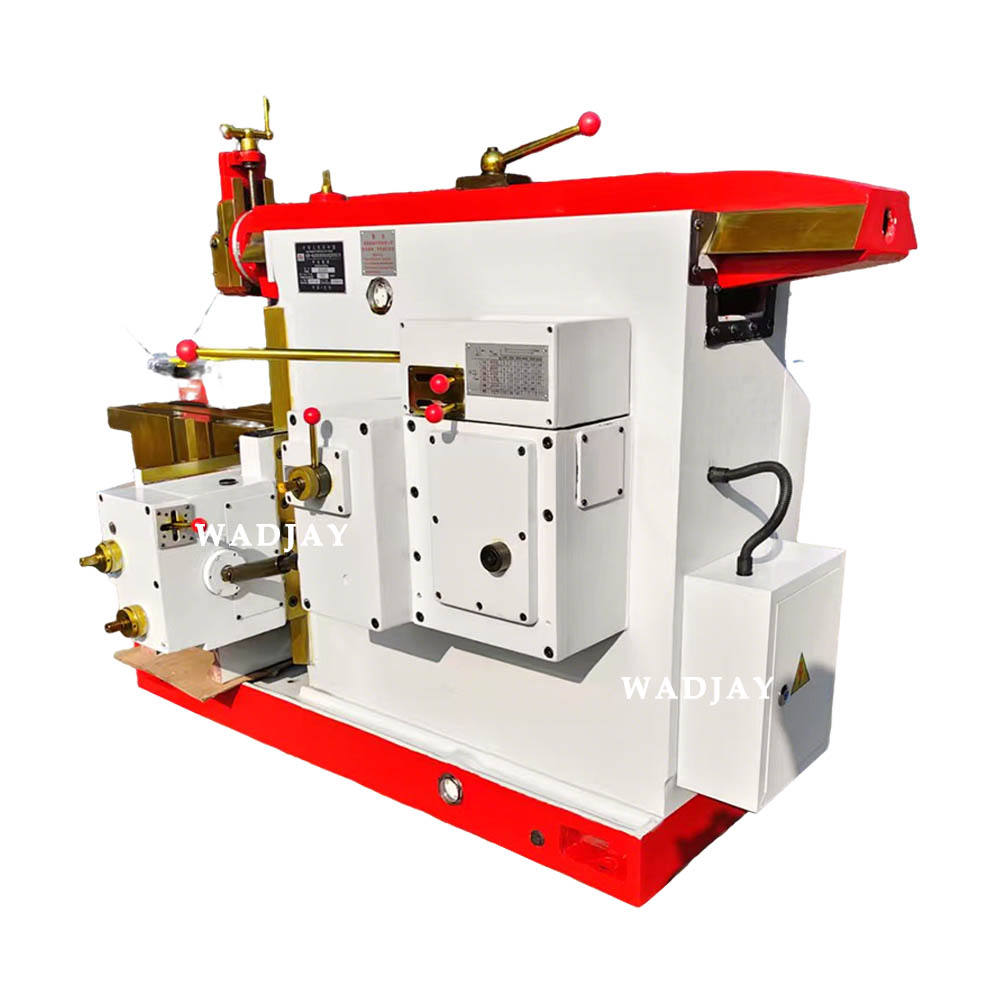

Shaping Machine for Keyways Slots and Flat Surfaces
Model: B6065
Quick Specifications
| Working Area: | 3640 x 1575 x 1780mm |
| Spindle Speed: | 15, 20, 29, 42, 58, 83 strokes/min |
| Accuracy: | ±60° |
| Tool Capacity: | 3mm/stroke |
Product Video
Description
The shaper machines push can be a straight reciprocating motion, while the tool rest rotates to multiple angles on the vertical plane. These machine can also be fed manually. The intermittent horizontal/vertical feed movement is made possible due to the workpieces being taken along the workbench. This machine can process plan, groove, dovetail surfaces as well as processing forming surfaces. Workpieces fixed onto the workbench can also get cut by the reciprocating motion tool rest .
Technical Specifications
Specification | Metric |
Max. Shaping Length | 1000mm |
Horizontal Travel of Worktable | 800mm |
Max. Distance from Ram to Table | 400mm |
Vertical Table Travel | 380mm |
Table Size | 1000 x 500mm |
Max. Stroke of Tool Head | 160mm |
Max. Swivel Angle of the Tool Head | ±60° |
Max. Section of Tool | 30 x 45mm |
Ram Strokes per Minute | 15, 20, 29, 42, 58, 83 strokes/min |
Worktable Mechanical Feeds | |
Horizontal Feeds (10 steps) | 0.3-3mm |
Vertical Feeds (8 steps) | 0.15-0.5mm |
Rapid Table Feeds | |
Rapid Horizontal | 3mm/stroke |
Vertical Feeding | 0.5mm/stroke |
Width of Table T-Slot | 22mm |
Motor | 7.5kW |
Overall Size | 3640 x 1575 x 1780mm |
Weight | 5150kg |
Features
Large Machining Capacity: Featuring a maximum planing stroke of 650 mm, this machine is capable of processing long workpieces as well as large flat or angled surfaces, making it ideal for applications in mechanical manufacturing, mold processing, and similar fields.
High-Rigidity Bed: The machine features a monolithic cast bed that has undergone aging treatment to relieve internal stresses; this ensures exceptional vibration resistance and guarantees long-term precision stability.
Reliable Mechanical Transmission: A crank-rocker mechanism drives the reciprocating motion of the ram; this simple structural design ensures low maintenance costs and is well-suited for continuous, heavy-duty production environments.
Stepless Speed Adjustment: The ram’s reciprocating rate is continuously adjustable within a range of 12.5 to 75 strokes per minute, allowing it to meet the specific cutting requirements of various materials—including steel, cast iron, and non-ferrous metals.
