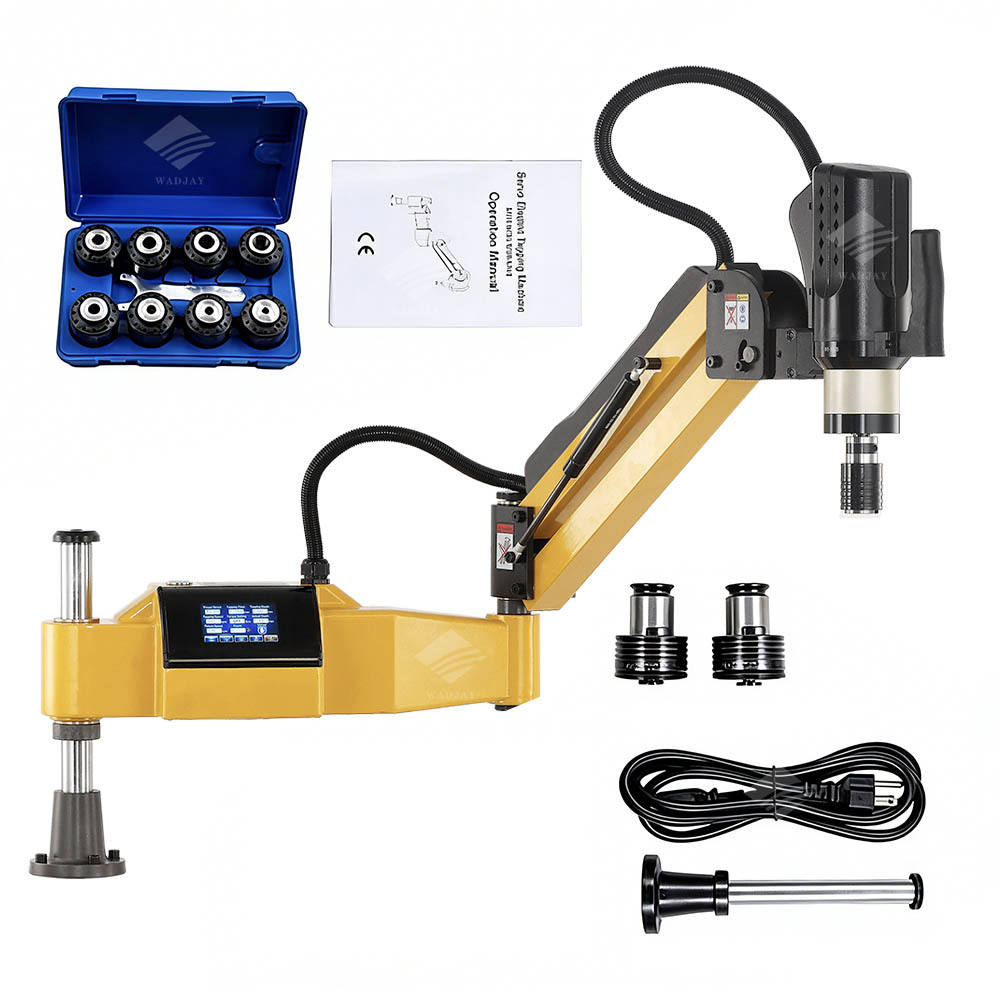

High-Precision M3-16 Electric Tapping Machine | Automatic CNC Threading Machine for Metal Processing
Model: M16
Quick Specifications
| Working Area: | 700X700X300 mm |
| Spindle Speed: | 0 - 375 r.p.m |
| Accuracy: | ±0.002 |
| Tool Capacity: | 2 |
Product Video
Description
The WADJAY M16 Servo Electric Tapping Machine is a high-precision, PLC-controlled bench-top unit designed for efficient internal thread cutting in metal and plastic materials. Equipped with an advanced servo motor drive, it delivers precise speed and torque control, making it an essential automated tool for modern machinery manufacturing and automotive repair workshops.
Core Technical Highlights:
Flexible Tapping Capacity: Supports a versatile threading range from M3 to M16 with a maximum capacity of 16mm.
Smart PLC Control: Features an intuitive industrial PLC touchscreen interface for stable, highly repeatable programming and torque protection to prevent tap breakage.
High-Speed Performance: Delivers a responsive spindle speed range of 0 to 375 RPM to maximize workshop productivity.
Compact & Portable: Engineered as a lightweight bench-top tapping arm system weighing just 30 kg, allowing easy integration into any workspace. CE/ISO certification.
Technical Specifications
Model | M16 | M24 | M30 | M36 | M48 |
Customized | YES | ||||
Power Type | AC POWER | ||||
Rated Power | 600W | 1200W | 1200W | 1200W | 1200W |
Supply Voltage | 110V/220V | ||||
The Spindle Rated Speed | 0-375 r/min | 550 r/min | 200 r/min | 125 r/min | 50-200 r/min |
Tapping Range (Steel) | M3-M16 | M4-M20 | M6-M30 | M6-M36 | M12-M48 |
Weight | 32kg | 49kg | 49kg | 54kg | 125kg |
Lifting Function | NO | YES | |||
Features
- Model & Core Function: WADJAY M16 Servo Electric Tapping Machine for precise internal thread cutting.
- Key Technical Specs: Maximum Drilling/Tapping Capacity: 16 mm | Spindle Speed Range: 0 – 312 RPM | Power: 1 kW.
- Operation & Control: Features Servo Motor drive for precise control and a PLC (Programmable Logic Controller) system for reliable operation.
- Power & Voltage: Compatible with both 220V and 110V power supplies for global workshop compatibility.
- Design & Portability: Bench-top Tapping Arm Machine design with a net weight of 30 kg, offering flexibility and easy integration.
- Core Components: Built with high-quality PLC and Motor systems for durability and consistent performance.
- Quality Assurance: Backed by a 1-Year warranty. Supplier provides machinery test reports and video outgoing-inspection.
- Key Selling Point: Offered at a highly Competitive Price, providing excellent value for money.
- Supplier: Henan Wadjay Machinery Co., Ltd. (Verified Custom Manufacturer, 6 years on Alibaba.com, 4.7/5 store rating).
- Customization & MOQ: Offers various customization options (Minor, Drawing-based, Full). Minimum Order Quantity is 1 set.
