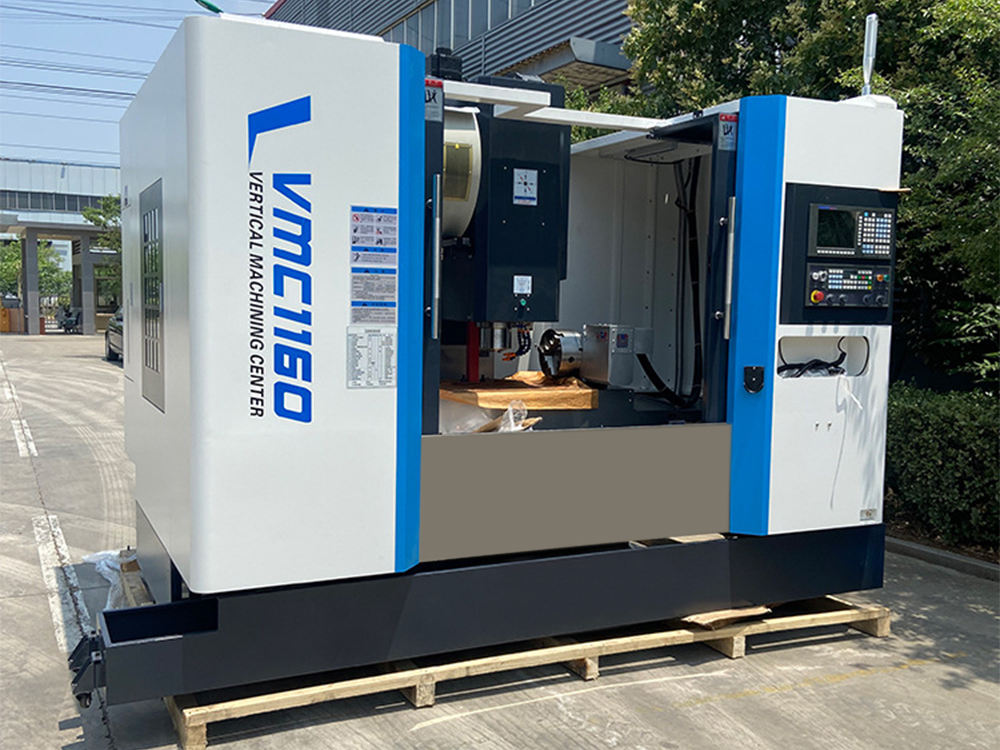

VMC1160 Vertical Machining Center

Model: VMC1160

Quick Specifications

Working Area:	4500 × 2200 × 2800mm
Spindle Speed:	8000 (Optional 12000/15000)r/min
Accuracy:	ISO 9 (Standard) / ISO 8 (High-Precision)
Tool Capacity:	24 (Optional 30/40)

Product Video

Watch on YouTube for best quality

Description

The VMC1160 is a high-precision, heavy-duty vertical machining center, engineered for the automated manufacturing of complex metal components across multiple industrial sectors. Equipped with a professional-grade CNC control system and a robust BT40 spindle, it delivers superior accuracy and efficiency for both batch production and complex part machining tasks.

Ideal for automotive components, aerospace parts, molds, and general mechanical components, the VMC1160 features a rigid box-in-box structure and a high-speed tool changer, ensuring long-term service life and consistent performance in demanding workshop environments.

Technical Specifications

Parameter	Unit	VMC1160 Standard Value
Table Size	mm	1100 × 600
Max. Travel (X/Y/Z)	mm	1100 / 600 / 550
Spindle Taper	—	BT40 / HSKB40
Spindle Speed Range	r/min	8000 (Optional 12000/15000)
Main Motor Power	kW	11 / 15
Rapid Traverse Speed	m/min	24 / 24 / 12
Tool Magazine Capacity	pcs	24 (Optional 30/40)
Machining Accuracy	Grade	ISO 9 (Standard) / ISO 8 (High-Precision)
Net Weight	kg	18000
Standard Power Supply	—	3 Phase 380V, 50Hz
Customizable Voltage	—	220V/415V/440V, 50/60Hz
Overall Dimensions (L×W×H)	mm	4500 × 2200 × 2800

Features

✅ Superior Structural Rigidity

Heavy-duty cast iron base with box-in-box guideway design eliminates vibration during high-speed cutting, ensuring perfect surface finishes and long-term precision retention.

✅ High-Speed Processing Efficiency

Equipped with a 24-tool automatic tool changer (ATC) and a high-torque spindle, it reduces non-processing time by 40% compared to standard mills, drastically improving production speed.

✅ Versatile Machining Capability

Supports drilling, boring, milling, tapping, and contouring, making it a comprehensive solution for diverse metal part manufacturing needs.

✅ Advanced CNC Control System

Professional-grade controller with intuitive G-code programming and 3D simulation software reduces operator training time and improves programming accuracy.

✅ Smart Safety System

Equipped with emergency stop buttons, safety interlocks, and automatic overload protection, ensuring operator safety and preventing tool breakage.

✅ Global Export Ready

Customizable working table size, spindle speed, and tool magazine capacity to meet international project requirements, with complete export documentation.
