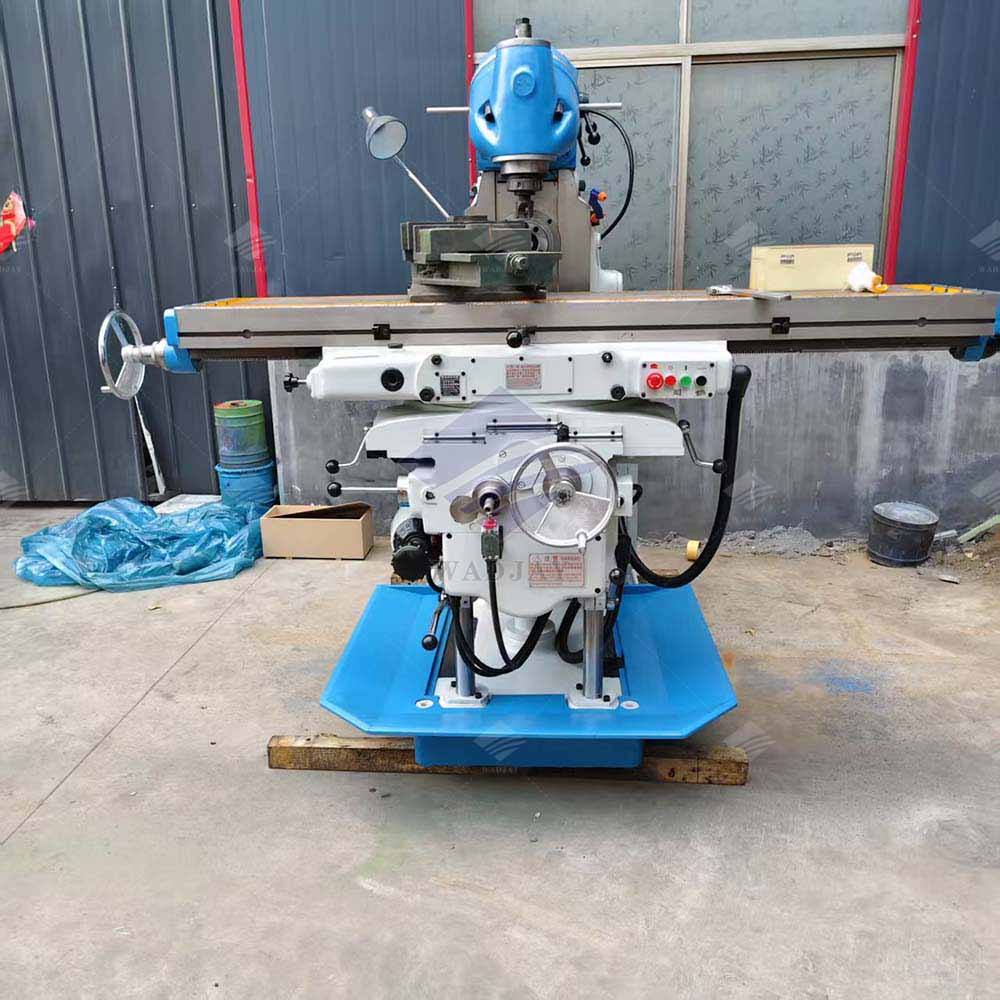

X5746 Universal Swivel Head Milling Machine
Model: X5746
Quick Specifications
| Working Area: | 2200 × 1800 × 2000mm |
| Spindle Speed: | 40 - 1600r/min |
| Accuracy: | ±0.02mm |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | X5746 Standard Value |
|---|---|---|
| Table Size | mm | 1200 × 360 |
| Max. Travel (X/Y/Z) | mm | 800 / 300 / 400 |
| Spindle Taper | — | ISO40 / BT40 |
| Spindle Speed Range | r/min | 40 – 1600 |
| Main Motor Power | kW | 4 |
| Feed Speed Range | mm/min | 10 – 1000 |
| Machining Accuracy | mm | ±0.02 |
| Net Weight | kg | 3800 (Industry standard for X5746 swivel head milling machine) |
| Standard Power Supply | — | 3 Phase 380V, 50Hz |
| Customizable Voltage | — | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 2200 × 1800 × 2000 |
Features
✅ 360° Swivel Head Design
Fully rotatable milling head enables vertical, horizontal, and angle milling operations, eliminating the need for complex workpiece repositioning.
✅ Heavy-Duty Rigid Construction
Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during cutting, guaranteeing long-term dimensional stability and machining accuracy.
✅ Versatile Machining Capability
Supports milling, drilling, boring, tapping, and slotting, making it a universal solution for diverse metalworking applications.
✅ User-Friendly Manual Operation
Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.
✅ Centralized Lubrication System
Automatic centralized lubrication for key moving parts reduces wear and tear, extending machine service life and ensuring stable operation.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, cast iron, and aluminum, suitable for diverse mechanical component and mold manufacturing applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with a robust, shock-resistant frame designed for long-distance shipping and installation.
