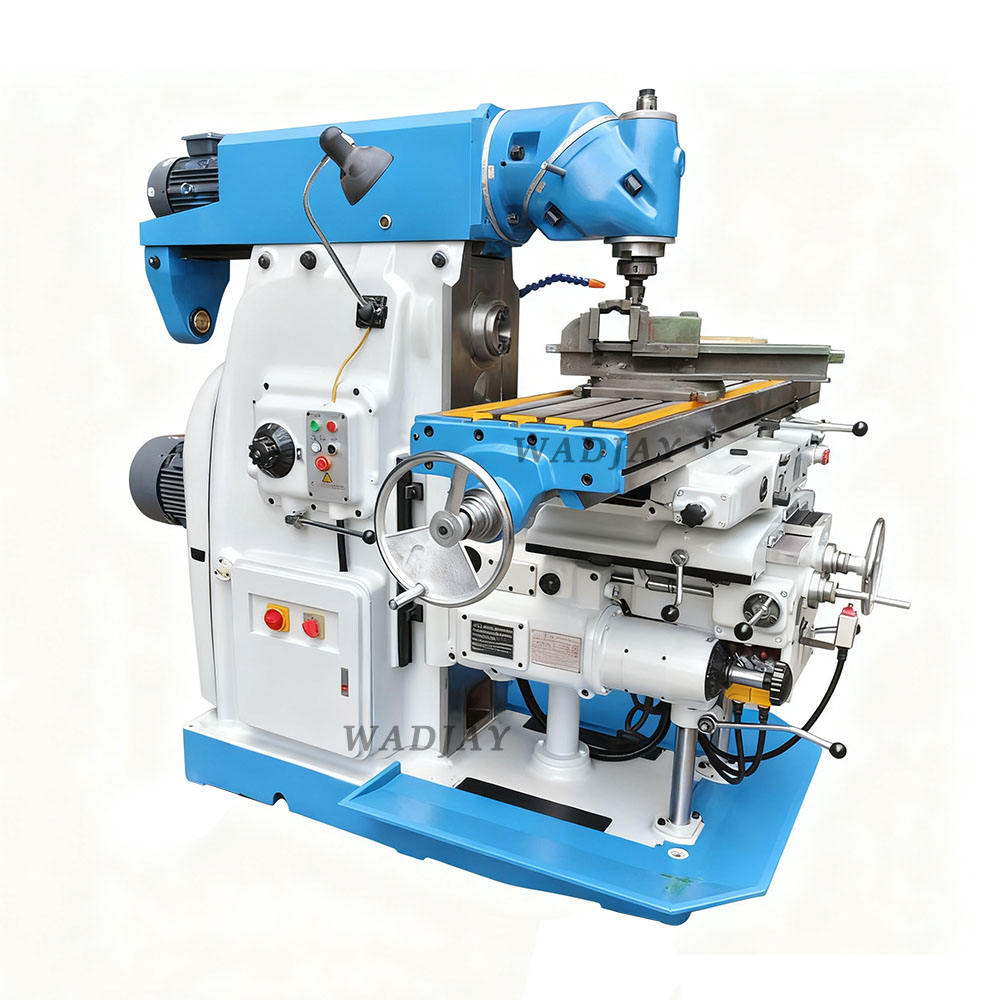

X6236 Universal Swivel Head Milling Machine
Model: X6236
Quick Specifications
| Working Area: | 2800 × 2200 × 2500mm |
| Spindle Speed: | 23.5 - 1180mm/min |
| Accuracy: | 0.1 |
| Tool Capacity: | 6 |
Product Video
Description
The X6236 is a heavy-duty universal swivel head milling machine, featuring a unique 360° rotatable milling head designed for versatile machining of complex metal components. It seamlessly supports vertical, horizontal, and angular milling operations, making it an ideal workhorse for tool and die making, mold processing, and general mechanical workshops. Core Technical Highlights:
High Rigidity Base: Built with a stress-relieved Meehanite cast iron base and precision feed systems, ensuring exceptional stability and accuracy under heavy cutting loads.
Universal Head Flexibility: Features a 0-90°/360° adjustable universal head design that enables quick switching between machining modes.
Automated Productivity: Equipped with automatic power feeds across multiple axes to maximize efficiency for both custom prototyping and batch production. Fully CE / ISO Certified with a 12-month global warranty.
Technical Specifications
| Parameter | Unit | X6236 Standard |
|---|---|---|
| Table Size | mm | 1500 × 360 |
| Max. Table Travel (X/Y/Z) | mm | 900 × 360 × 450 |
| Spindle Taper | – | MT5 / BT40 |
| Spindle Speed Range | rpm | 30 – 1600 (18 Steps) |
| Main Motor Power | kW | 7.5 |
| Feed Rate Range | mm/min | 23.5 – 1180 |
| Swivel Head Range | ° | 0 – 90° (Vertical/Horizontal) |
| Machining Accuracy | mm | ±0.02 |
| Net Weight | kg | 5800 |
| Power Supply | – | 3PH 380V 50Hz |
| Overall Dimensions (L×W×H) | mm | 2800 × 2200 × 2500 |
Features
✅ Universal Swivel Head Design
The 0-90° adjustable milling head allows for vertical, horizontal, and angular machining, enabling one-time setup for complex part features.
✅ Heavy-Duty Gear Drive
Robust mechanical transmission delivers high torque for cutting steel, stainless steel, and alloy materials, ensuring durability in harsh workshop conditions.
✅ Precision Feed System
Power feeds across X/Y/Z axes with multiple speed settings reduce manual labor and ensure consistent surface finishes for precision parts.
✅ Rigid Cast Iron Construction
Meehanite cast iron bed and column eliminate vibration during heavy milling, guaranteeing long-term dimensional stability and machining accuracy.
✅ Versatile Tool Compatibility
Supports end mills, face mills, arbor cutters, and slotting tools, making it suitable for diverse milling applications including gears, cams, and molds.
✅ Global Export Ready
Fully customizable electrical system to meet international power standards, with a robust frame designed for safe and efficient long-distance shipping.
