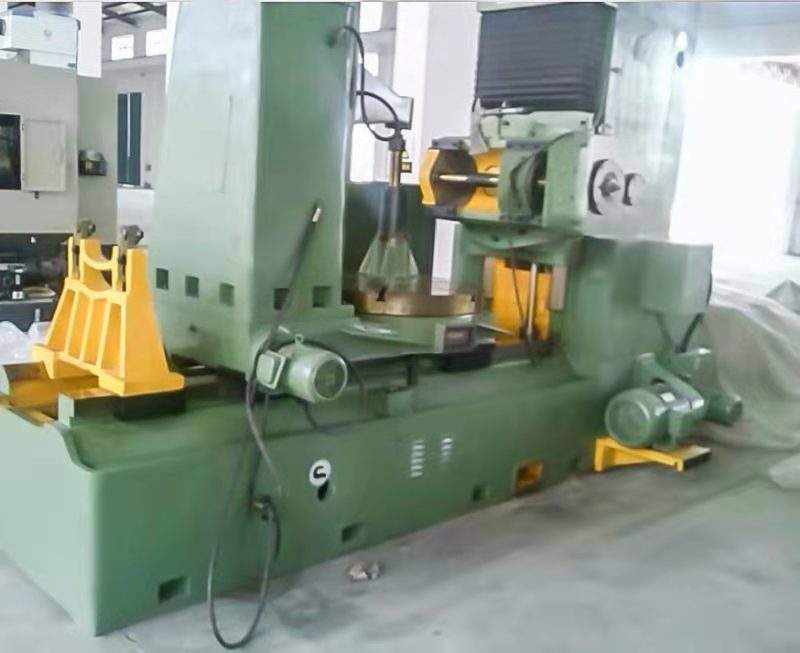

Y31125 Heavy-Duty Gear Hobbing Machine
Model: Y31125
Quick Specifications
| Working Area: | 6500 × 4200 × 4500mm |
| Spindle Speed: | 40 - 200r/min |
| Accuracy: | 0.1 |
| Tool Capacity: | 12 |
Product Video
Description
Technical Specifications
| Parameter | Unit | Y31125 Standard Value |
|---|---|---|
| Max. Gear Module | mm | 12 |
| Max. Gear Diameter (External) | mm | 1250 |
| Max. Gear Face Width | mm | 300 |
| Hob Spindle Speed Range | r/min | 40 – 200 |
| Main Motor Power | kW | 18.5 |
| Machining Accuracy | Grade | GB/T 6 (ISO 6) |
| Net Weight | kg | 22000 (Industry standard for Y31125 gear hobbing machine) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 6500 × 4200 × 4500 |
Features
✅ Extra-Heavy-Duty Industrial Construction
Reinforced Meehanite cast iron bed and column, fully stress-relieved, eliminate chatter during heavy cutting, guaranteeing long-term dimensional stability and machining accuracy for large gears.
✅ High-Power Hob Head Assembly
18.5kW high-torque hob head delivers extreme cutting power for large-module gears, supporting heavy roughing and finishing operations.
✅ Large Rotary Worktable
Oversized rotary worktable with manual indexing enables secure clamping of large gear blanks, supporting multi-position machining in a single setup.
✅ Robust Mechanical Transmission
High-torque gear drive system delivers powerful cutting performance for steel, alloy, and cast iron workpieces, ensuring clean, precise gear teeth.
✅ Centralized Lubrication & Chip Removal System
Automatic centralized lubrication for key moving parts reduces wear and tear, while the built-in chip removal system ensures continuous, efficient production.
✅ Wide Material Compatibility
Processes carbon steel, stainless steel, alloy steel, and cast iron, suitable for diverse heavy-duty gear manufacturing applications.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with a robust, shock-resistant frame designed for long-distance shipping and installation.
