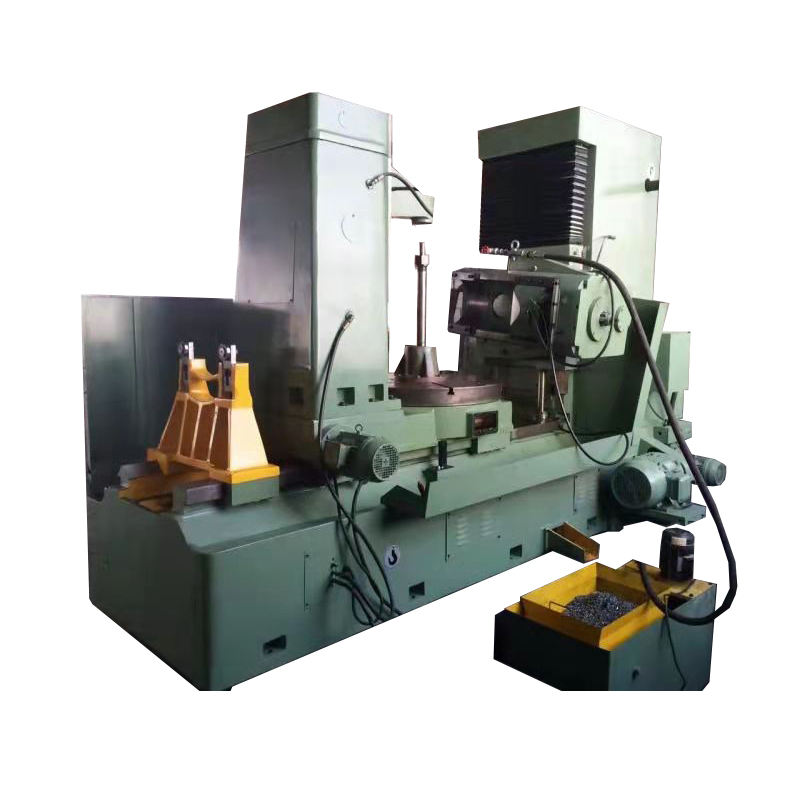

Heavy-Duty CNC Gear Hobbing Machine | Large Diameter Gear Cutte
Model: Y31200
Quick Specifications
| Working Area: | 8000×5000×4000mm |
| Spindle Speed: | 16-160 |
| Accuracy: | 0.02 |
| Tool Capacity: | 24 |
Product Video
Description
Core Advantages:
Ultra-Rigid Design: Built with a reinforced high-strength cast iron frame for maximum rigidity and vibration suppression during heavy-load continuous cutting.
High-Torque Performance: Features a high-torque hobbing head and a full CNC control system for automated, high-accuracy gear production.
Industrial Applications: Ideal for large-scale components in wind power, mining equipment, shipbuilding, and heavy machinery industries.
Global Quality: Fully compliant with CE/ISO 9001 standards, featuring 12-month global warranty and customizable voltage/configuration.
Technical Specifications
| Parameter | Unit | Y31200 Standard Value |
|---|---|---|
| Max. Workpiece Diameter | mm | 2000 |
| Max. Module | mm | 20 |
| Max. Workpiece Weight | kg | 15000 |
| Hobbing Head Swivel Angle | ° | ±60 |
| Spindle Speed Range | r/min | 16-160 |
| Main Motor Power | kW | 30 |
| Positioning Accuracy | mm | ±0.02 |
| Repeat Positioning Accuracy | mm | ±0.01 |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 8000×5000×4000 |
| Net Weight | kg | 65000 |
Features
Heavy-Duty Rigid Construction
Integrated high-strength cast iron body with stress relief treatment ensures long-term dimensional stability and vibration-free operation during heavy-load continuous cutting of large gears.
High-Precision CNC Machining
Full-servo CNC control system delivers ±0.02mm machining accuracy, ensuring consistent gear tooth profile and surface finish for large industrial gear components.
Versatile Gear Processing Capability
Supports machining of spur gears, helical gears, worm gears, and spline shafts, with adjustable parameters to meet diverse production demands for large gears.
Automatic Chip Removal & Lubrication System
Integrated automatic chip removal device and centralized lubrication system ensure efficient chip discharge and continuous lubrication, reducing manual maintenance and improving production efficiency.
User-Friendly CNC Operation
Intuitive CNC control panel with touch screen supports offline programming, real-time monitoring, and fault diagnosis, reducing operator learning curve and improving production safety.
Global Power Compatibility
Standard 380V 50Hz configuration, fully customizable voltage and configuration to fit European, American, Asian, and Middle Eastern power grid standards, ideal for worldwide export.
