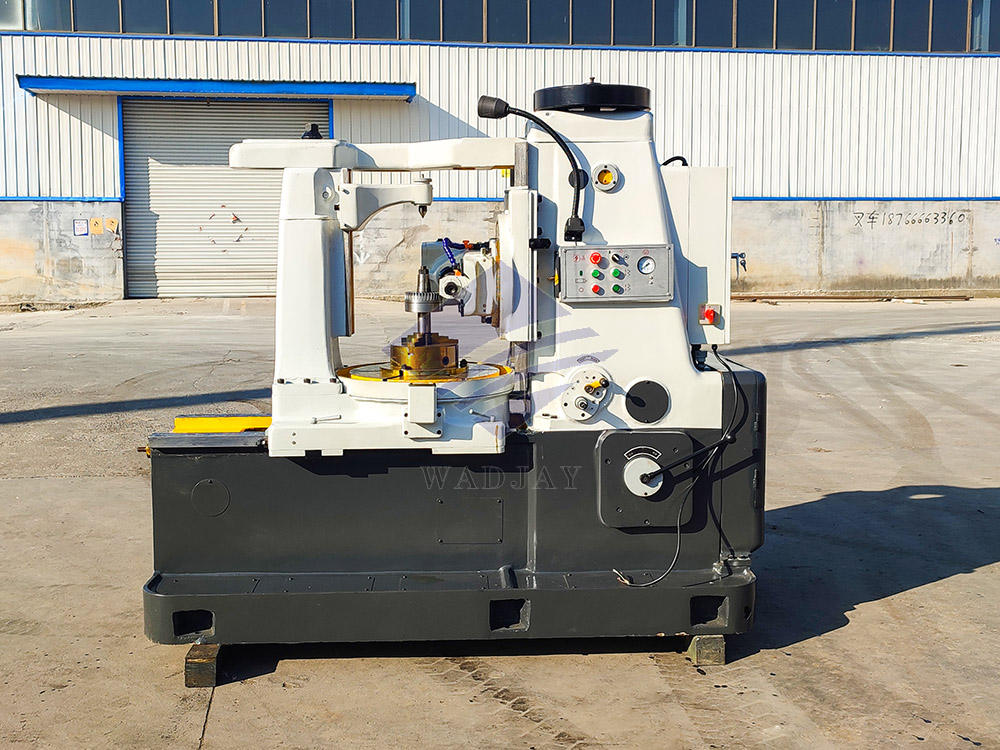

Y3150 Universal Gear Hobbing Machine

Model: Y3150

Quick Specifications

Working Area:	2800 × 1700 × 2050mm
Spindle Speed:	19 - 236r/min
Accuracy:	GB/T 7 (ISO 7)
Tool Capacity:	24

Product Video

Watch on YouTube for best quality

Description

The Y3150 is a compact, high-precision universal vertical gear hobbing machine, purpose-built for the efficient manufacturing of small-to-medium module spur gears, helical gears, spline shafts, and worm gears. It is a staple equipment in automotive component manufacturing, reducer production, and general mechanical repair workshops, delivering reliable precision and cost-effectiveness for both small-batch customization and large-scale production.

Built with a heavy-duty cast iron base and a rigid column structure, the machine ensures minimal vibration during high-torque cutting, delivering stable and consistent gear profiles. Its user-friendly mechanical transmission system and adjustable spindle speed make it suitable for processing a wide range of materials, from ordinary carbon steel to alloy steel, meeting diverse manufacturing needs.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	Y3150 Standard Value
Max. Machining Module	mm	6
Max. External Gear Diameter	mm	500
Max. Gear Face Width	mm	200
Spindle Speed Range	r/min	19 – 236
Main Motor Power	kW	4
Machining Accuracy Grade	–	GB/T 7 (ISO 7)
Net Weight	kg	4500
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Dimensions (L×W×H)	mm	2800 × 1700 × 2050

Features

✅ Cost-Effective Precision

Delivers ISO 7 grade accuracy for medium-module gears, making it ideal for small and medium-sized enterprises seeking high-quality results without premium costs.

✅ Robust Mechanical Drive

Smooth gear transmission system provides strong cutting torque, supporting heavy roughing and finishing operations on steel and cast iron workpieces.

✅ Versatile Processing Capabilities

Capable of machining external gears, helical gears, and splines, with flexible adjustment of cutting parameters to suit different part geometries.

✅ Efficient Operational Design

Ergonomic handwheels and clear indicator dials allow operators to quickly master setup and processing, minimizing training time.

✅ Durable Construction

Reinforced Meehanite cast iron bed ensures long-term dimensional stability, resistant to wear and deformation under continuous use.

✅ Export-Friendly Configuration

CE certified, with customizable voltage and complete export documentation, suitable for overseas project delivery and international shipping.
