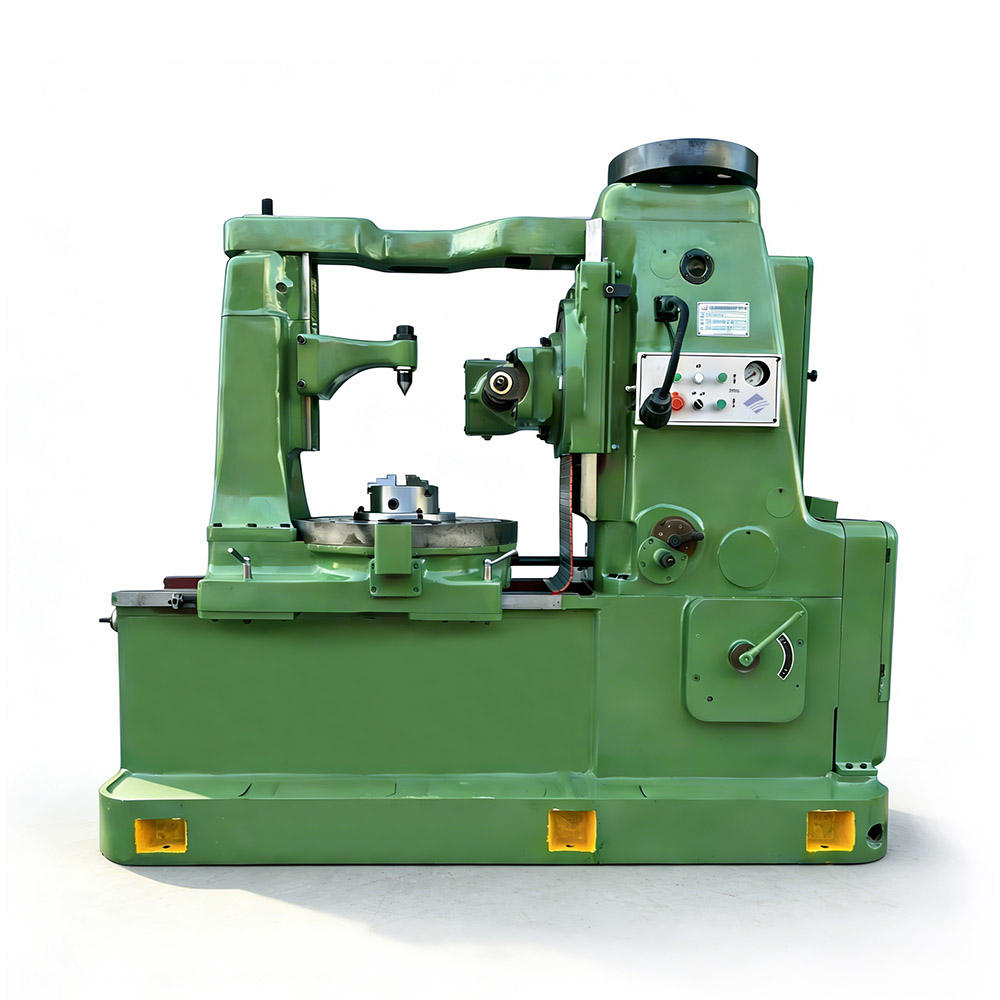

Y3150E Enhanced Universal Gear Hobbing Machine

Y3150E Enhanced Universal Gear Hobbing Machine

Model: Y3150E

Quick Specifications

Working Area:	2850 × 1750 × 2100mm
Spindle Speed:	25 - 250 r/min
Accuracy:	GB/T 7 (ISO 7)
Tool Capacity:	12

Product Video

Watch on YouTube for best quality

Description

The Y3150E is an upgraded, high-precision universal vertical gear hobbing machine, engineered for the efficient manufacturing of small-to-medium module spur gears, helical gears, spline shafts, and worm gears. It is a core piece of equipment in automotive component manufacturing, reducer production, and general mechanical repair workshops, delivering enhanced rigidity and cutting performance for both small-batch prototyping and mass production.

Built with a reinforced, stress-relieved cast iron frame and a high-rigidity hob head structure, it ensures zero vibration and maximum stability during cutting. The machine features a high-torque mechanical transmission system, a precision rotary worktable, and a user-friendly control panel for easy operation. Equipped with a centralized lubrication system, automatic chip removal, and safety interlocks, it delivers reliable, consistent performance with minimal maintenance. Backed by CE/ISO certification, a 12-month global warranty, and full customization for voltage, it meets the stringent standards of global gear manufacturing industries.

Technical Specifications

Parameter	Unit	Y3150E Standard Value
Max. Machining Module	mm	8
Max. External Gear Diameter	mm	500
Max. Gear Face Width	mm	200
Hob Spindle Speed Range	r/min	25 – 250
Main Motor Power	kW	5.5
Machining Accuracy Grade	–	GB/T 7 (ISO 7)
Net Weight	kg	4800
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Dimensions (L×W×H)	mm	2850 × 1750 × 2100

Features

✅ Upgraded Rigid Construction

Reinforced cast iron bed and column, fully stress-relieved, eliminate chatter during heavy cutting, guaranteeing long-term dimensional stability and machining accuracy for medium-module gears.

✅ Enhanced High-Torque Spindle

5.5kW high-power spindle delivers stronger cutting performance for steel, stainless steel, and alloy workpieces, supporting heavy roughing and finishing operations.

✅ Universal Machining Capability

Supports external gears, helical gears, splines, and worm gears, making it a universal solution for diverse gear manufacturing needs.

✅ User-Friendly Manual Operation

Ergonomic handwheel controls and clear status indicators make the machine easy to operate, with minimal training required for operators.

✅ Centralized Lubrication & Chip Removal System

Automatic centralized lubrication for key moving parts reduces wear and tear, while the built-in chip removal system ensures continuous, efficient production.

✅ Wide Material Compatibility

Processes carbon steel, stainless steel, cast iron, and aluminum, suitable for diverse gear manufacturing applications.

✅ Global Export Compatibility

Fully customizable voltage and configuration to fit international power standards, with a robust, shock-resistant frame designed for long-distance shipping and installation.
