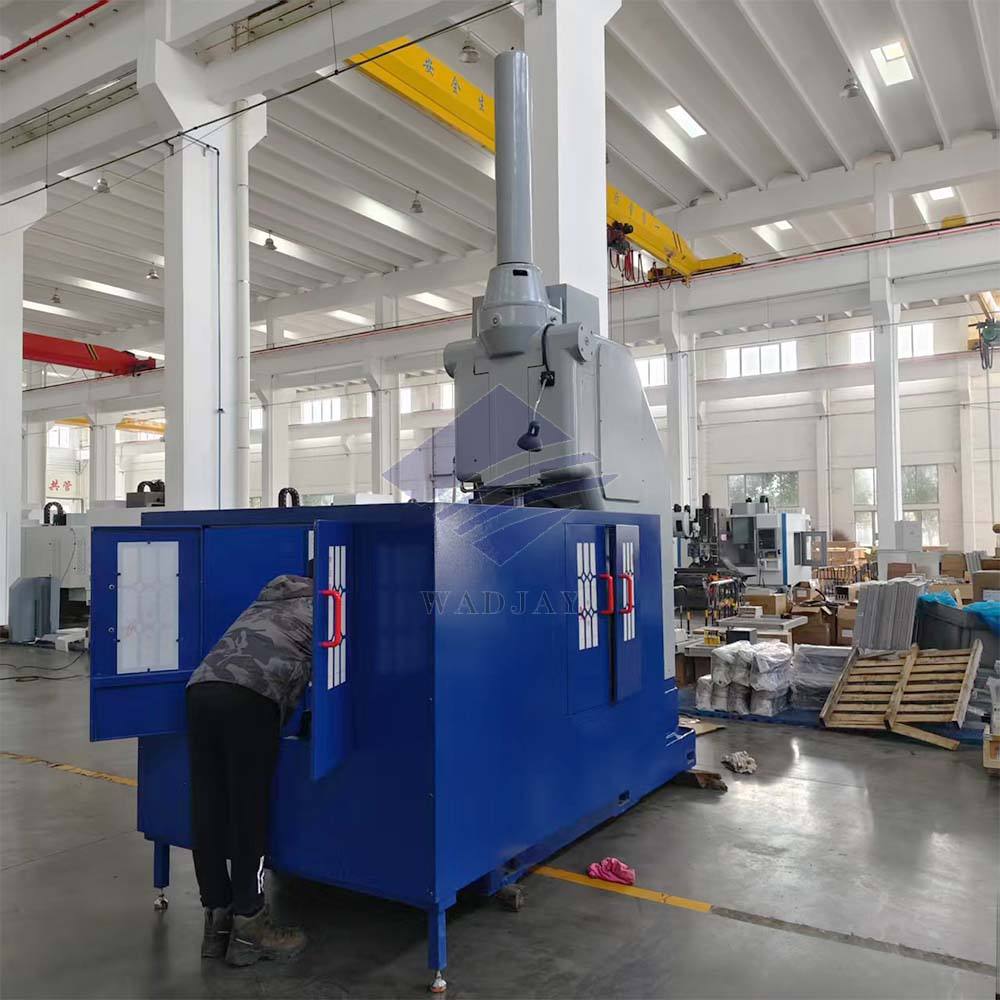

Y51125 CNC Gear Shaping Machine
Model: Y51125
Quick Specifications
| Working Area: | 4500 × 3200 × 4800mm |
| Spindle Speed: | 80 - 300strokes/min |
| Accuracy: | 0 - 300mm |
| Tool Capacity: | 6 |
Product Video
Description
Technical Specifications
| Parameter | Unit | Y51125 Standard Value |
|---|---|---|
| Max. Gear Module | mm | 12 |
| Max. Gear Diameter (External) | mm | 1250 |
| Max. Gear Diameter (Internal) | mm | 1000 |
| Max. Gear Face Width | mm | 250 |
| Ram Stroke Range | mm | 0 – 300 |
| Ram Stroke Frequency | strokes/min | 80 – 300 |
| Main Motor Power | kW | 15 |
| Machining Accuracy | Grade | GB/T 7 (ISO 7) |
| Net Weight | kg | 18000 (Industry standard for Y51125 gear shaper) |
| Standard Power Supply | – | 3 Phase 380V, 50Hz |
| Customizable Voltage | – | 3 Phase 220V/415V/440V, 50/60Hz |
| Overall Dimensions (L×W×H) | mm | 4500 × 3200 × 4800 |
Features
✅ Heavy-Duty Ram & Column Structure
The oversized ram and guideway system provide exceptional rigidity, ensuring straight, precise cuts even when machining large-module gears without deflection.
✅ CNC Multi-Axis Synchronized Control
The advanced CNC system synchronizes the ram reciprocation, worktable rotation, and feed movement, enabling complex gear profile machining and automatic tool compensation.
✅ Versatile Gear Machining Capability
Supports external gears, internal gears, splines, gear racks, and special-shaped gears, making it a universal solution for diverse gear manufacturing needs.
✅ Fully Enclosed Safety Design
The integrated safety guard with observation windows and emergency stop system complies with international safety standards, protecting operators from chips and noise.
✅ Automatic Lubrication & Chip Removal
The centralized automatic lubrication system reduces wear on key moving parts, while the built-in chip removal system ensures continuous, efficient production.
✅ Global Export Compatibility
Fully customizable voltage and configuration to fit international power standards, with a robust, shock-resistant frame designed for long-distance shipping and installation.
