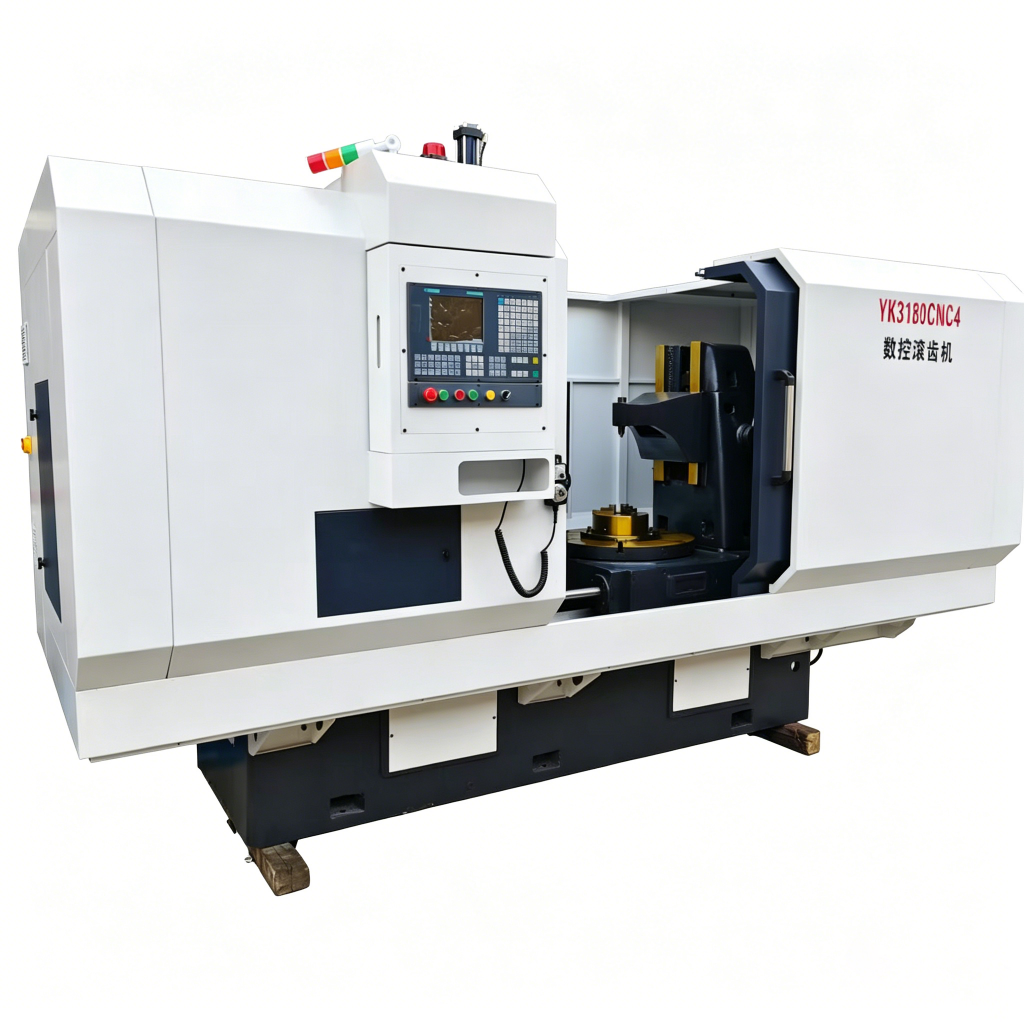

YK3180CNC4 4-Axis CNC Automatic Gear Hobbing Machine
Model: YK3180CNC4
Quick Specifications
| Working Area: | 3200 × 1800 × 2200mm |
| Spindle Speed: | 625 rpm |
| Accuracy: | 0.01 |
Product Video
Description
Technical Specifications
| Parameter | Unit | Specification |
|---|---|---|
| Max. Cutting Module (Steel) | mm | 10 |
| Max. Cutting Module (Cast Iron) | mm | 12 |
| Max. Spur Gear Diameter | mm | 800 |
| Max. Helical Gear Diameter (30°) | mm | 370 |
| Max. Helical Gear Diameter (45°) | mm | 250 |
| Tool Post Travel (30° Right/Left) | mm | 160 / 240 |
| Tool Post Travel (45° Right/Left) | mm | 65 / 105 |
| Max. Tool Post Slide Travel | mm | 260 (Optional 440) |
| Max. Table Travel | mm | 250 |
| Hob Center to Table Center (Horizontal) | mm | 50 – 550 |
| Hob Center to Table Surface (Vertical) | mm | 235 – 585 |
| Tailstock Center to Table Surface | mm | 400 – 1100 |
| Max. Helix Angle | ° | 45 |
| Spindle Taper | Morse | No.5 |
| Hob Arbor Diameter | mm | 27 / 32 / 40 |
| Max. Hob Diameter | mm | 180 |
| Max. Hob Length | mm | 180 |
| Hob Axial Travel | mm | 100 |
| Table Diameter | mm | 650 |
| Table Max Speed | rpm | 30 |
| Table Arbor Diameter | mm | 30 (Optional Quick-Change Fixture) |
| Hob Spindle Speed (Stepless) | rpm | 0 – 625 |
| Radial Feed Speed | mm/min | 0 – 2000 |
| Axial Feed Speed | mm/min | 0 – 2000 |
| X/Z Axis Servo Motor | N·m | 10 |
| Hob C Axis Servo Motor | N·m | 32 |
| Hob Y Axis Servo Motor | N·m | 15 |
| Coolant Pump Power | W | 90 |
| Hydraulic Pump Power | kW | 1.1 |
| Overall Dimensions (L×W×H) | mm | 3200 × 1800 × 2200 |
| Net Weight | kg | 5800 |
Features
Core Advantages
Dedicated Dafeng CNC system for 4-axis control, achieves Grade 6 accuracy, supports complex gears including 45° helical, tapered, crowned, and few-tooth gears.
High-ribbed cast iron bed + plastic-coated guideways, strong rigidity, anti-vibration, stable under heavy cuts.
Servo motors for all axes, stepless speed 0–625 rpm, hydraulic tailstock, automatic feeding, reduces labor and ensures consistent quality.
Max diameter 800mm, max module 10 (steel), processes spur/helical/spline/special gears for heavy machinery, wind power, mining, reducers.
Short transmission chain, high-efficiency servo drive, long service life, low maintenance.
CE compliant, standard electrical components, complete documentation, ready for worldwide delivery.
