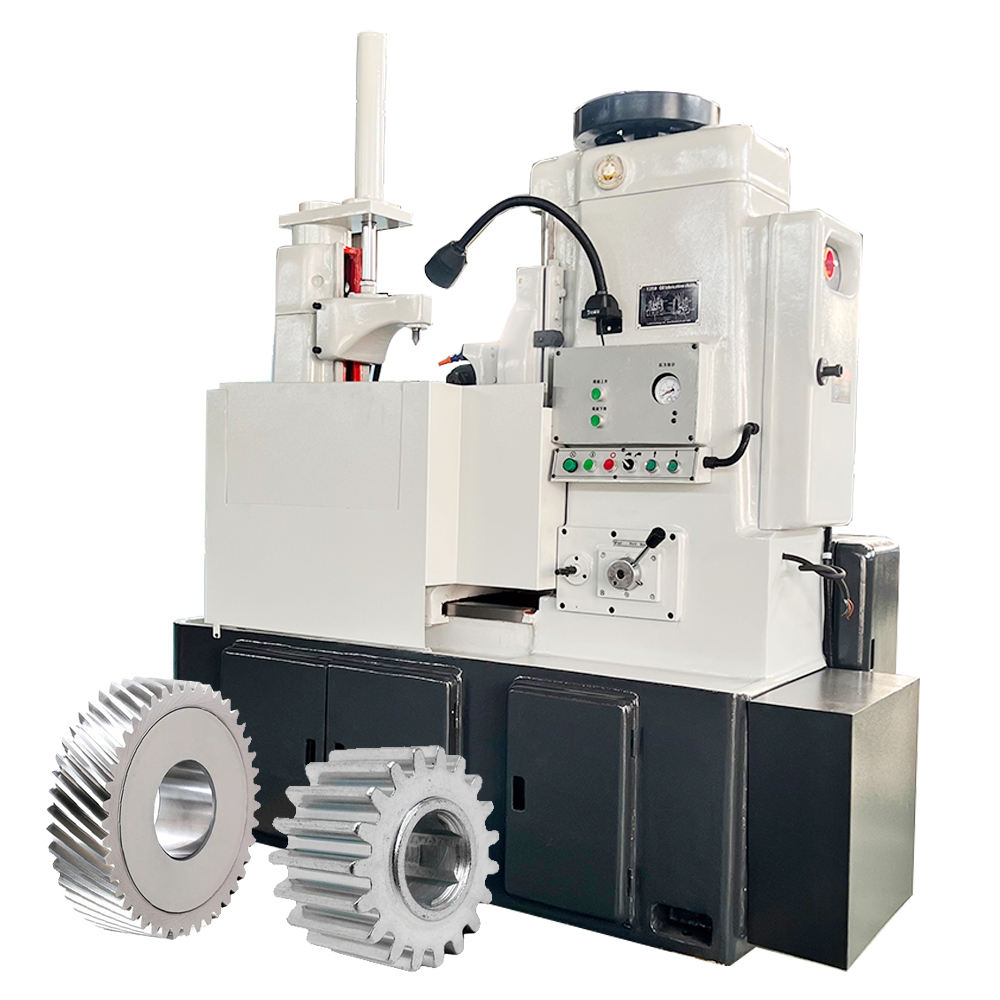

YK3180H High-Speed CNC Gear Hobbing Machine

YK3180H High-Speed CNC Gear Hobbing Machine

Model: YK3180H

Quick Specifications

Working Area:	4800 × 2800 × 3200mm
Spindle Speed:	100 - 1200r/min
Accuracy:	GB/T 6 (ISO 6)
Tool Capacity:	12

Product Video

Watch on YouTube for best quality

Description

The YK3180H is a heavy-duty, fully automated CNC gear hobbing center, engineered for the high-precision, high-efficiency manufacturing of large-module spur gears, helical gears, and spline shafts. It serves as a cornerstone in automotive transmission, wind power gearbox, and heavy machinery component production lines, delivering superior consistency and productivity through advanced servo-driven automation.

Built with a reinforced box-in-box cast iron structure and a high-rigidity hob head, it eliminates vibration during extreme cutting loads, ensuring long-term dimensional stability. Equipped with a 3-axis (or 4-axis) CNC control system, automatic tool offset, and a user-friendly industrial interface, it minimizes labor input while maximizing production yield, meeting the strict quality standards of global gear manufacturing industries.CE/ISO Certified, Factory Direct.

Technical Specifications

Parameter	Unit	YK3180H Standard Value
Max. Machining Module	mm	10
Max. External Gear Diameter	mm	800
Max. Gear Face Width	mm	250
Spindle Speed Range	r/min	100 – 1200
Main Motor Power	kW	15
Control System	–	Industrial CNC System (3-Axis Servo)
Machining Accuracy Grade	–	GB/T 6 (ISO 6)
Net Weight	kg	8500
Power Supply	–	3 Phase 380V, 50Hz (Customizable)
Overall Dimensions (L×W×H)	mm	4800 × 2800 × 3200

Features

✅ CNC Automated Efficiency

Fully digital control system enables continuous unmanned operation, reducing human error by 95% and boosting production efficiency by 80% compared to manual hobbing machines.

✅ Heavy-Duty Structural Integrity

Stress-relieved cast iron bed with hardened guideways eliminates chatter, ensuring superior surface finish and zero deflection when cutting hardened steel gears.

✅ Versatile High-Power Processing

15kW high-torque spindle supports roughing and finishing on a wide range of materials, including carbon steel, alloy steel, and stainless steel, with rapid feed rates.

✅ Smart Operational Design

Integrated emergency stops, safety barriers, and automatic chip removal systems ensure operator safety and minimal maintenance downtime.

✅ Global Export Compliance

CE certified, with customizable voltage, spindle power, and control software, complete with export documentation for international project delivery.
