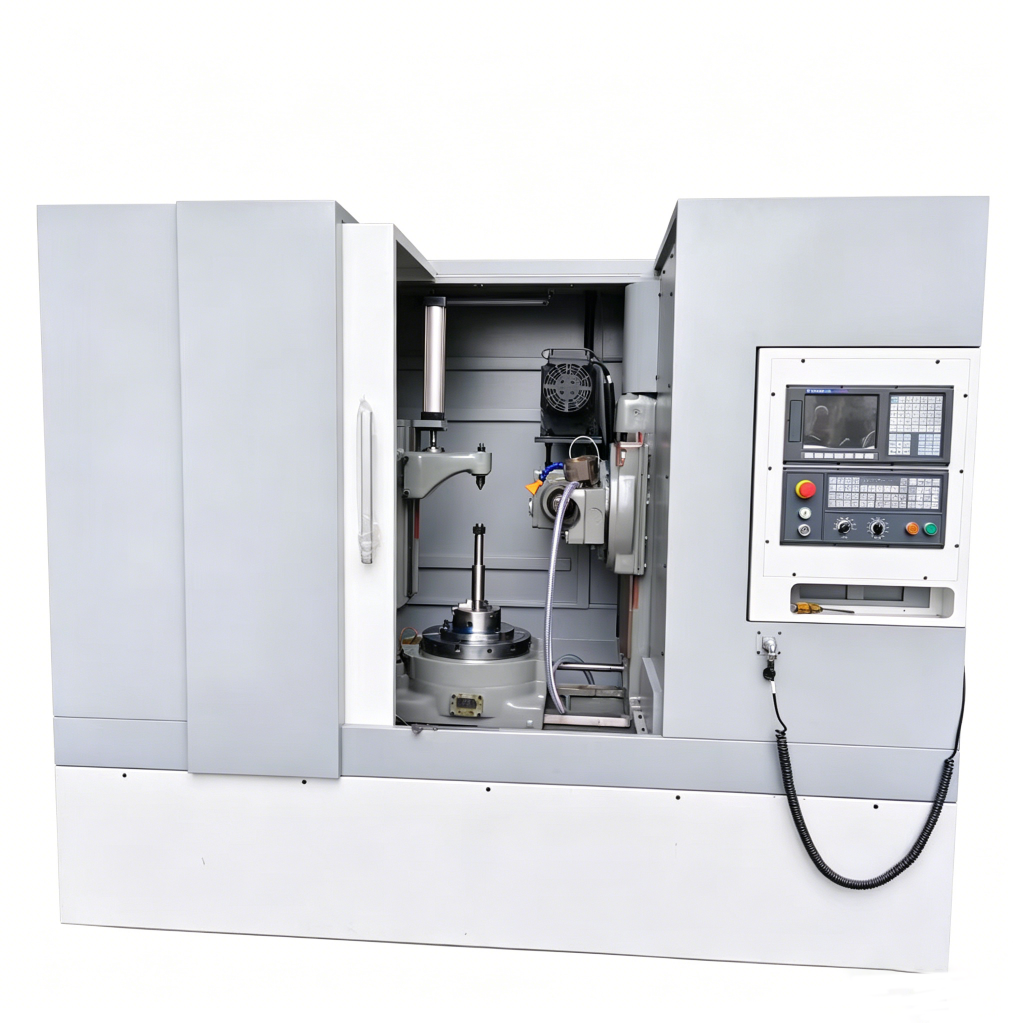

YK5132CNC Fully Enclosed CNC Gear Shaping Machine
Model: YK5132
Quick Specifications
| Working Area: | 2200mm× 1600mm× 2200mm |
| Spindle Speed: | 20-150 (Stepless) |
| Accuracy: | GB/T 6-7 |
Product Video
Description
Technical Specifications
| Parameter | Unit | YK5132CNC Standard Specification |
|---|---|---|
| Max. External Gear Diameter | mm | 320 |
| Max. Internal Gear Diameter | mm | 320 |
| Max. Machining Module | mm | 6 |
| Max. Workpiece Height | mm | 250 |
| Max. Ram Stroke Length | mm | 100 |
| Ram Stroke Speed | strokes/min | 20-150 (Stepless) |
| Main Motor Power | kW | 5.5 |
| Control System | – | CNC (Optional Siemens/Fanuc/GDS) |
| Machining Accuracy Grade | – | GB/T 6-7 |
| Net Machine Weight | kg | 4500 |
| Power Supply | – | 3 Phase 380V/400V, 50Hz (Customizable) |
| Overall Dimensions (L×W×H) | mm | 2200 × 1600 × 2200 |
Features
✅ Fully Enclosed Safety Design
Complete enclosure with safety door interlocks prevents operator contact with moving parts, contains coolant mist, and reduces noise for a cleaner, safer workshop.
✅ 4-Axis CNC Linkage Precision
Advanced CNC control ensures high-precision indexing and consistent tooth spacing, eliminating manual errors for both prototype and mass production.
✅ Versatile Gear Machining
Excels at both external and internal spur gears, splines, and special profiles, offering a flexible solution for diverse gear manufacturing needs.
✅ Rigid & Stable Structure
High-ribbed cast iron bed and precision guides eliminate deflection during heavy cuts, ensuring long-term dimensional accuracy and extending tool life.
✅ User-Friendly Operation
Intuitive CNC interface with built-in gear machining cycles simplifies programming, reducing operator training time and setup errors.
✅ Global Export Ready
Fully CE-certified with customizable voltage and control options, ready for integration into production lines worldwide.
